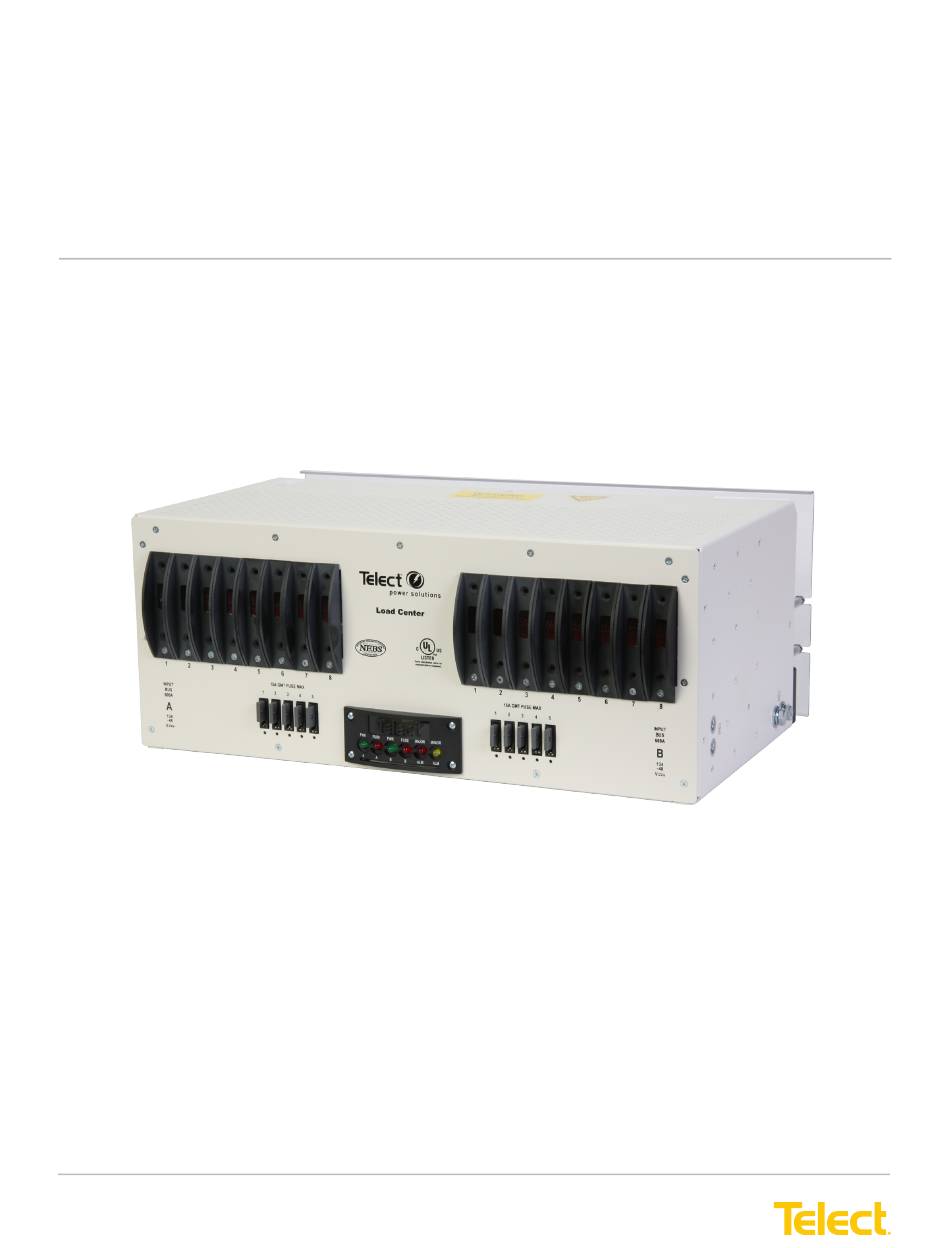

- Page 1 Dual-Feed 600A 8-Circuit Breaker/TPC/TFD Load Center With 5 GMTs Power :: 600CB08 Installation Guide Applys to : 600CB08 © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com...
-
Page 2: Table Of Contents
Figure 15 - Installing TFD Fuse Holder for Single-Pole Output .......... 15 Figure 16 - Installing GMT Fuses ..................15 Figure 17 - Designation Card ....................16 Figure 18 - Alarm Wiring (From Rear of Designation Card) ..........16 © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com... -
Page 3: Overview
• Circuit breakers or TPC/TPS/TLS fuses up to 100A each (single-pole) or 200A (double-pole circuit breaker) — not to exceed 600A total per side. • GMT fuses up to 15A each. Telect ships the panel with phoney fuses. GMT fuse holders are mounted upside down so that... -
Page 4: Specifications
(15.8 mm) for a BATT terminal and 0.70 (17.7 mm) for a RETURN terminal]. Torque bolts (using 7/16 in. or 12 mm wrench) to 50 in.-lb (5.5 N•m), max. Output Wire Size #14 AWG minimum © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com... - Page 5 #24 AWG, typical (#26 to #20 AWG) Alarm Terminals Wire Wrap Dimensions: Specifications: Nominal, without brackets**: Width: 17 in. (440 mm) Height: 7 in. (180 mm) Depth: 11.5 in. (290 mm) © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com...
-
Page 6: Preparation
When you receive the equipment, carefully unpack it and compare it to the packaging list. Please report any defective or missing parts to Telect Quality at quality@telect.com or call 1.509.926.6000. Telect is not liable for transit damaged. If the product is damaged, please report it to the carrier and contact Telect Quality. -
Page 7: Alarm Card
(ON – TRIP – OFF) breakers by readjusting the jumpers to connect pins 2 and 3 on connectors P3 and P4 (outlined in white boxes). Figure 2 - Standard Trip Figure 3 - Mid-trip © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com... -
Page 8: Installation
5. Remove the cover. Figure 5 - Rack Mounting WARNING WARNING! Failure to properly ground this equipment can create hazardous conditions for installation personnel and for the equipment. © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com... - Page 9 V- - - Figure 6 - Heat Management for Multiple Load Centers in a Single Rack NOTE: See “Parts & Accessories” on Page 17 for heat deflectors and blank panels. Order online at telect.com. © Telect, Inc., All Rights Reserved, 134843-6 A0...
-
Page 10: Ambient Operating Temperature Range
75°C (167°F) 49° to 55°C (120°F to 131°F) 600A 90°C (194°F) 12. Insulate lug barrels with UL94 V-0-rated heat-shrink tubing. 13. Clean terminals and lugs with a nonabrasive, nonmetallic pad. © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com... -
Page 11: Figure 8 - One Input Lug Per Terminal
• Expect continuity (0Ω) between Terminals C and NC. • Expect an open circuit (00Ω) between Terminals C and NO. NC C NO A R FUSE FUSE MAJOR MINOR © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com... - Page 12 Table 9, “Ground & Circuit Breaker Output Lugs (¼ in. Dual Holes on 5/8 in. Centers, Uninsulated)” on page 19. (NEC specifies only one lug and load at each output terminal.) 26. Tighten the nuts to 20 in.-lb (~2.3 N•m), max. © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com...
-
Page 13: Single-Pole Dual-Hole Output Lug Figure 11 - Double-Pole Dual-Hole Circuit
31. Tighten the panhead screws to no more than 6.3 in.-lb. (~0.7 N•m). 32. Connect the other end of output wire to load. Figure 12 - GMT Output Lug Connections © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com... -
Page 14: Figure 13 - Installing Circuit Breaker
Also, if not all circuit breaker positions are occupied, it’s wise to allow non-populated positions between breakers. Figure 14 - Installing Circuit Breaker for Double-Pole Outputs © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com... -
Page 15: Figure 15 - Installing Tfd Fuse Holder For Single-Pole Output
Figure 16 - Installing GMT Fuses • Expect an open circuit (00Ω) between Terminals C and NC. • Expect continuity (0Ω) between Terminals C and NO.Re-install the operable GMT fuse before proceeding. © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com... -
Page 16: Figure 17 - Designation Card
40. Re-install the terminal cover. 41. Lastly, enable equipment loads one at a time to verify proper operation of loads. This procedure is complete. © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com... -
Page 17: Parts & Accessories
1.5 Parts & Accessories The following lists optional and replacement items for the panel. For wire sizing and labelling, please refer to Wire Sizing &, Label Convention Chart (Telect Part No. 117995) included with your panel. WARNING WARNING! Use only UL-listed or UL-recognized component secondary protection devices... - Page 18 TFD Fuse Holder TPS/TLS Fuse Holder 129816 TPS Fuses 130481 130485 130487 130489 130476 130478 130482 130484 130486 130488 TLS Fuses 140640 140641 100A 140642 110A 140643 125A 140644 © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com...
- Page 19 4A White/Brown (WHT/BRN) 004013 102435-15 5A Green (GRN) 004014 102435-16 7½A Black/White (BLK/WHT) 004010 102435-17 10A Red/White (RED/WHT) 004015 102435--18 12A Yellow/Green (YEL/GRN) 102287 102435-19 15A Red/Blue (RED/BLU) 102288 102435-20 © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com...
- Page 20 600CB08-3PK triple-pole breaker Return Multi-Pole Adapter Adapt two return 5/8” C-C to one 600CB08-RPK 1” C-C return. Multi-Pole Kit Enlarged cover with extensions for use with 600CB08-MPK multi-pole adapters © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com...
-
Page 21: Compression Lugs
Table 10 - GMT Output Ring Lugs for #6 Screw Terminals (Nylon Insulated Except as Footnoted) #26-22 AWG #22-16 AWG #16-14 AWG Panduit PN22-6R-C Ring* PK18-6R-C Ring* ** PN14-6R-C Ring* 326878 36151 320561 Burndy YAE18N21BOX YAE14N43BOX * 100 Count ** KYNAR Insulation © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com... -
Page 22: Schematic Drawing
FUSE A PWR B ALARM PCB FUSE B MINOR ALM MAJOR ALM C GND C GND CB OUTPUT B RETURN B GMT OUTPUT B RETURN INPUT B INPUT 600A MAX © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com... -
Page 23: Assembly Drawing
Dual-Feed 600A 8-Circuit Breaker/TPC/TFD Load Center With 5 GMTs Power :: 600CB08 1.7 Assembly Drawing © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com... - Page 24 Dual-Feed 600A 8-Circuit Breaker/TPC/TFD Load Center With 5 GMTs Power :: 600CB08 © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com...
- Page 25 Power :: 600CB08 Telect assumes no liability from the application or use of these products. Neither does Telect convey any license under its patent rights or the patent rights of others. This document and the products described herein are subject to change without notice.
- Page 26 Dual-Feed 600A 8-Circuit Breaker/TPC/TFD Load Center With 5 GMTs Power :: 600CB08 This page intentionally left blank. © Telect, Inc., All Rights Reserved, 134843-6 A0 1.509.926.6000 :: telect.com...
