4x100A Demarcation Breaker
Panel With Alarms
Model 009-7000-0104
Installation Guide
1.1 Overview
Telect's 4 x 100A Demarcation Breaker Panel With Alarms provides breaker protection at
equipment interface. The low profile panel includes four breaker positions with blank face plates,
a replaceable alarm card containing power/alarm cut-off LEDs, visual and audio indicator relays,
and rear-access terminals and wirewrap alarm switch contacts. Each breaker has separate
BATT/RTN inputs and outputs.
Hardware is included for either flush or extended mounting in a 19" or 23" relay rack. Visit our
website (www.telect.com) for ordering accessories and replaceable parts: breakers (up to 100A,
each), lugs, ETSI mounting brackets, and more.
(Listed by UL for US and Canada, File No. E139903; NEBS3 Compliant)
1.2 Inspection
Please read these instructions carefully before beginning installation. If you need assistance, call
Technical Support at 1-888-821-4856 (domestic calls), or 509-921-6161 (Option 2), or email us at
getinfo@telect.com.
Inspect equipment after unpacking and compare it to the packing list.
Immediately report any shipping damage, defects, or missing parts to Telect at 1-800-551-4567.
Keep all documentation that comes with your shipment.
Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52
www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 118677-4 A0

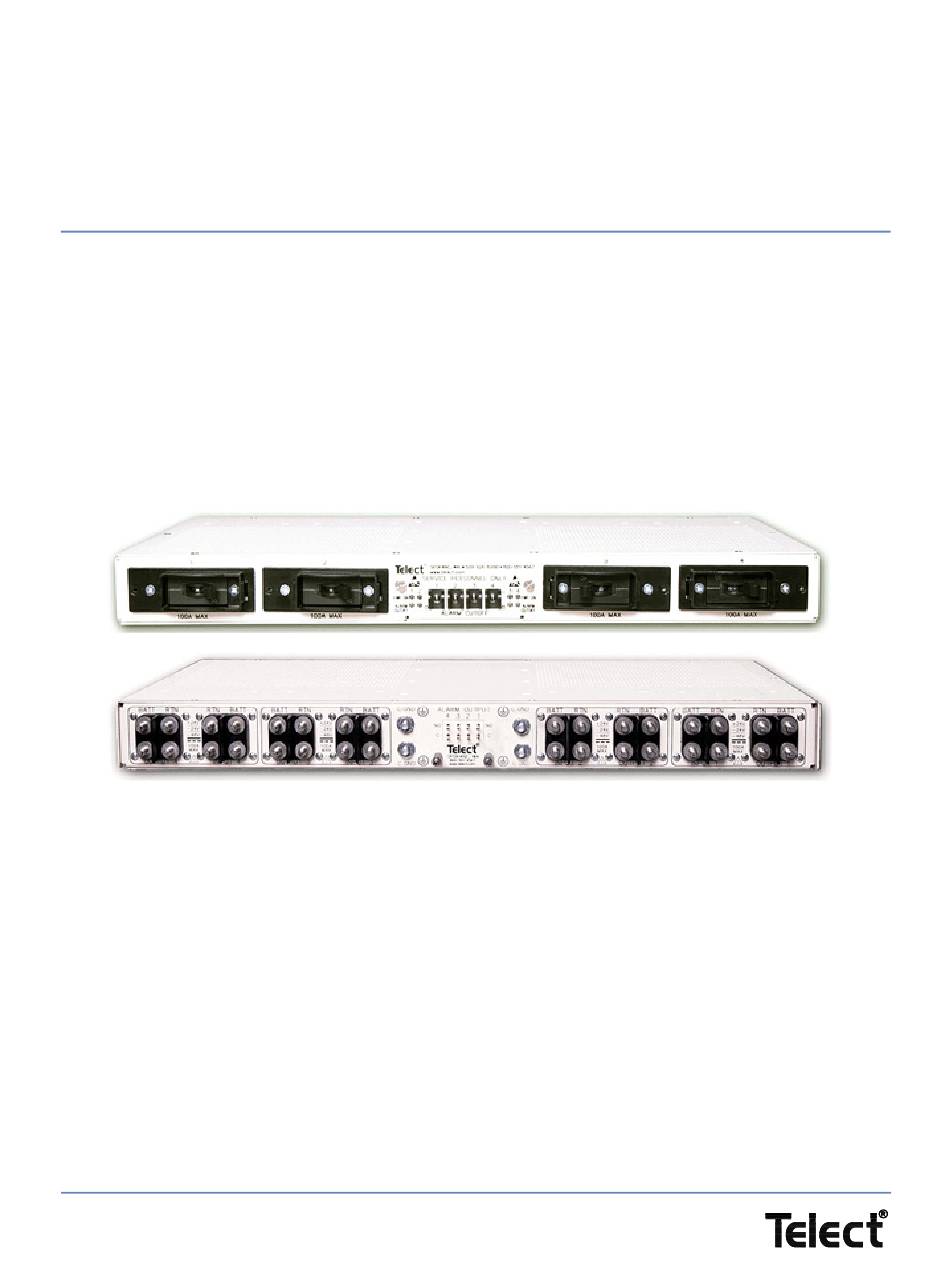

Figure 1 - Model 009-7000-0104
Page 1
Advertisement
Related Manuals for Telect 009-7000-0104
Summary of Contents for Telect 009-7000-0104
- Page 1 Installation Guide 1.1 Overview Telect's 4 x 100A Demarcation Breaker Panel With Alarms provides breaker protection at equipment interface. The low profile panel includes four breaker positions with blank face plates, a replaceable alarm card containing power/alarm cut-off LEDs, visual and audio indicator relays, and rear-access terminals and wirewrap alarm switch contacts.
-
Page 2: Specification
Telect is not liable for shipping damage. If the product is damaged, notify the carrier and call Telect’s Customer Service Department at 1-800-551-4567 (domestic only) or 1-509-926-6000 for further recourse. NOTE: For service or warranty information, please visit telect.com website, or email inquiries to getinfo@Telect.com and click on the “Support”... -
Page 3: Installation
BATT wires.) 4. Attach opposite end of ground wire to relay rack, per local practices. Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 118677-4 A0 Page 3... - Page 4 Figure 5. Tighten the lugs to 20 in.-lb (2.27 N-m). Heat Shrink Tubing BATT Figure 5 - Input Lug Connections Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 118677-4 A0 Page 4...
- Page 5 Figure 8 - Output Lug Connections 14. Attach plastic covers over all output terminals. 15. Remove blank face plates at intended breaker postions. Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 118677-4 A0 Page 5...
- Page 6 CAUTION! Do not install breakers with breakers switched on. Doing so may damage breakers or panel. Telect recommends that the individual circuit load not exceed 80% of circuit breaker capacity (for example, 100A breaker x .80 = 80A max. load).
- Page 7 Verify the normal operating conditions outlined in the preced- ing Note. This procedure is complete. Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 118677-4 A0 Page 7...
- Page 8 1.5 Schematic (1 of 4 Circuits) & Dimensions Figure 11 - Schematic 1 Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 118677-4 A0 Page 8...
- Page 9 (S H O W N W IT H C IR C U IT B R E A K E R S ) Figure 12 - Dimensions Telect, Inc. • USA +1.509.926.6000 • Mexico +52.33.3836.37.52 www.telect.com • © 2010 Telect, Inc., All Rights Reserved, 118677-4 A0 Page 9...
- Page 10 100 A 090-0052-0100 Telect assumes no liability from the application or use of these products. Neither does Telect convey any license under its patent rights or the patent rights of others. This document and the products described herein are subject to change without notice.
