Dual 40/50/100A Configurable Breaker Panel
Power :: T009-5XXXXXXXXXXX
Installation Guide
Overview

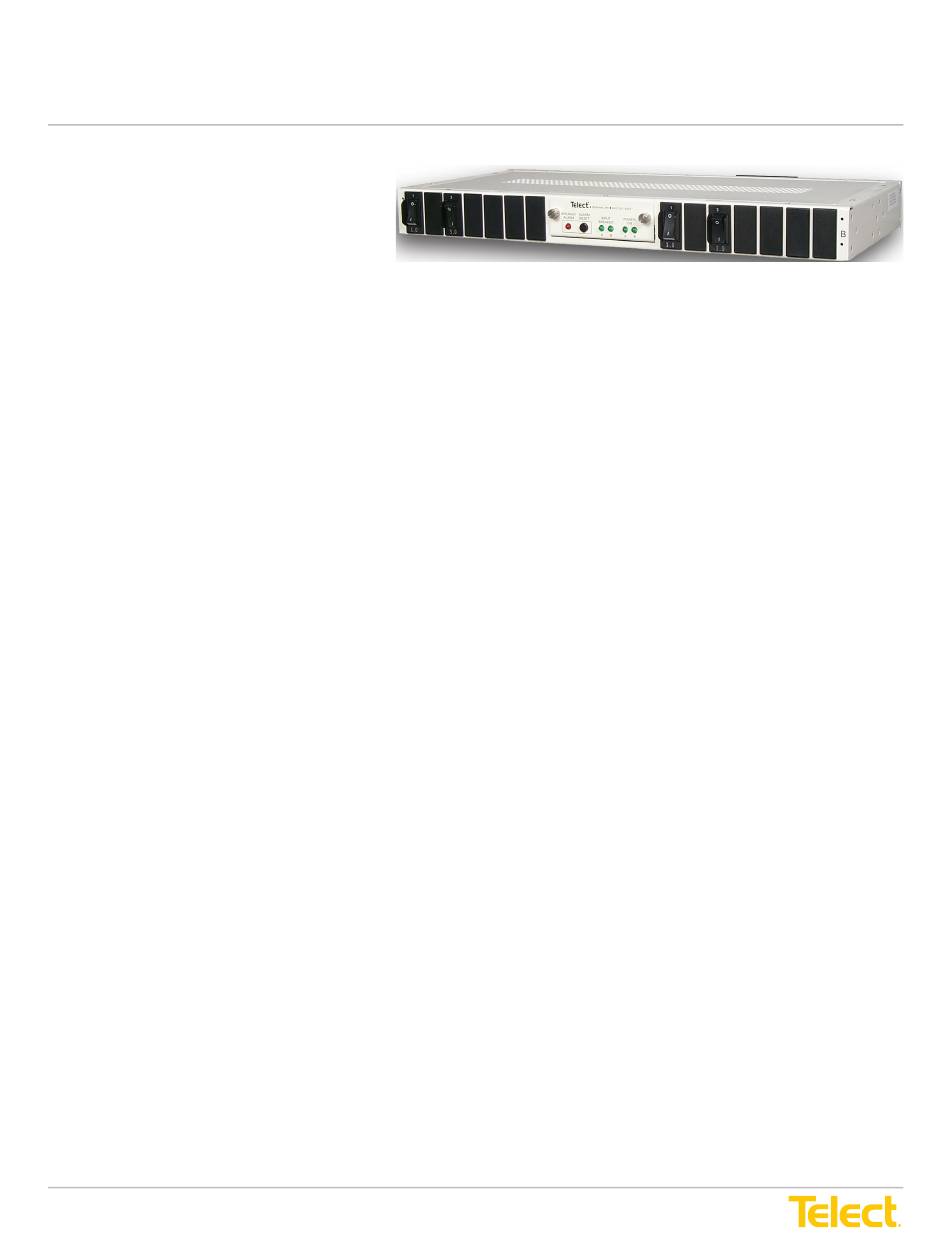

The Telect dual-feed configurable breaker panel provides circuit breaker power protection for a variety of
telecommunications equipment. Panel includes up to 7 circuit breakers per side for a total maximum
continuous load of 40A, 50A or 100A:
•
40A with optional 50A thermal input breakers
•
50A without optional input breakers (screw-tight inputs)
•
100A without optional input breakers (compression inputs only)
White or black panels can be configured with any combination of 1A to 20A Carling, M-Series breakers
[oriented with the "on" symbol ( | ) at either the bottom or top], 50A thermal input breaker and either
screw-tight or compression input connectors. Screw-tight connectors can be oriented for sideways or
top-down wiring.
Feeds A and B are independent except for the replaceable alarm card which contains power and
alarm LEDs for both feeds. Also included are breaker alarm and power-fail relay terminals for wiring to
external indicators.
Hardware is included for flush or extended mounting in 19" or 23" relay racks. See "Accessories" (Page 7) for ordering
optional and replaceable items: output breakers, face plates, lugs, ETSI mounting kit and more.
© Telect, Inc., All Rights Reserved, 118267-3 A0
1.509.926.6000 :: telect.com
Model T009-5XXXXXXXXXXX
1
Advertisement
Table of Contents
Related Manuals for Telect T009-5 Series
Summary of Contents for Telect T009-5 Series
- Page 1 Model T009-5XXXXXXXXXXX Overview The Telect dual-feed configurable breaker panel provides circuit breaker power protection for a variety of telecommunications equipment. Panel includes up to 7 circuit breakers per side for a total maximum continuous load of 40A, 50A or 100A: •...
-
Page 2: Specifications
Quantity: * See Page 11 for Screw: #4 Phillips** pan head exact dimensions Cable: #30 to #16 AWG ** Screws with cross-recessed heads Torque 4 in.-lb (0.45 N•m), max. © Telect, Inc., All Rights Reserved, 118267-3 A0 1.509.926.6000 :: telect.com... - Page 3 NOTE NOTE: Telect is not liable for shipping damage. If damaged, notify the carrier and call Telect at 509.926.6000 for further recourse. Telect is not liable for shipping damage. If damaged, notify the carrier and call Telect’s Customer Service Department at 1-800-551-4567 (domestic only) or 1-509-926-6000 for further recourse.
- Page 4 (Use 5. Use a coarse, nonmetallic cleaning pad to clean terminals #10 to #6 AWG, depending on input interruption device.) 7. Telect recommends that you lightly coat anti-oxidant on the lug, grounding screw(s), and sur- Rack Mounting and stud(s).
- Page 5 POWER FAIL FAIL terminals on rear of panel: Alarm Terminals • Expect an open circuit (∞Ω) between Terminals C and NC. • Expect continuity (0Ω) between Terminals C and NO. © Telect, Inc., All Rights Reserved, 118267-3 A0 1.509.926.6000 :: telect.com...
- Page 6 20. If installed, remove covers over output and alarm connectors. 21. Telect recommends that you lightly coat antioxidant on lugs and output BATTERY and RETURN terminals before connecting lugs/wires to outputs. (NEC specifies only one lug and load for each output terminal.) Tighten screws to 9 21.
- Page 7 LOAD connector will be near the top. tom, the LOAD connector will be near the top. © Telect, Inc., All Rights Reserved, 118267-3 A0 11. Restrain connector to prevent it from traveling back in to panel. 1.509.926.6000 :: telect.com...
- Page 8 1. Breakers are sold for repair/replacement of field breakers and not for reconfiguring the panel. 20A long delay 115270 Blank 113882 For service and warranty information see our telect.com website, email inquires to getinfo@Telect.com or phone ETSI Mounting Brackets Black 090-0041-0030 us at 509.926.6000.
- Page 9 FUSE ALARM relay energizes so that — ◊ C to NC opens and ◊ C to NO closes Pressing ALARM RESET turns off BREAKER ALARM LED and de-energizes FUSE ALARM relay. © Telect, Inc., All Rights Reserved, 118267-3 A0 1.509.926.6000 :: telect.com...
-
Page 10: Physical Attributes
FUSE ALARM POWER FAIL Screw-Tight Vertical Inputs With 50A Input Breakers INPUT INPUT BATT BATT BREAKER BREAKER FUSE ALARM POWER FAIL Screw-Tight Vertical Inputs Without 50A Input Breakers REAR VIEW © Telect, Inc., All Rights Reserved, 118267-3 A0 1.509.926.6000 :: telect.com... -
Page 11: Schematic Drawing
3=Compression Inputs without Input Breakers (100A max./side) 4=Screw-Tight Vertical Inputs with 50A Thermal Input Breakers 5=Screw-Tight Vertical Inputs without Input Breakers Schematic Drawing (Optional) (Shown in alarm state) (Optional) © Telect, Inc., All Rights Reserved, 118267-3 A0 1.509.926.6000 :: telect.com... -
Page 12: Assembly Drawing
23.00 [58.4] Telect assumes no liability from the application or use of these products. Neither does Telect convey any license under its patent rights or the patent rights of others. This document and the products described herein are subject to change without notice.
