DMP 265LTE-INT Series Installation Manual

265LTE-INT SERIES
CELLULAR COMMUNICATOR
Installation Guide
Figure 1: 265LTE-INT PCB
DESCRIPTION
The 265LTE-INT Series
Cellular Communicator
provides a fully-supervised
alarm communication path
over an LTE network.
The 265LTE-INT is installed
on the XTLplusINT
powered by the panel so no
additional enclosure, power
supply, or battery back-up is
needed.
What is Included
• 265LTE-INT Cellular
Communicator
• External Antenna
1
Standoff
Hole
and
TM
2
Remote Link Activation
Complete the following steps to activate the 265LTE-INT on
Remote Link:
1.
2.
3.
4.
5.
6.
INSTALL THE 265LTE-INT
Caution: Touch grounded metal to discharge
static before handling the XTLplusINT.
1. Place the antenna onto the 265LTE-INT SMA
connector and then twist the antenna until it
is securely tightened.
2. Slide the communicator into the XTLplusINT
eight-pin CELL MODULE connector, keeping
the 265LTE-INT parallel to the XTLplusINT.
3. Align the standoff hole in the communicator
with the standoff on the XTLplusINT, and
then snap it into place. See Figure 2.
External
Antenna
SMA
Connector

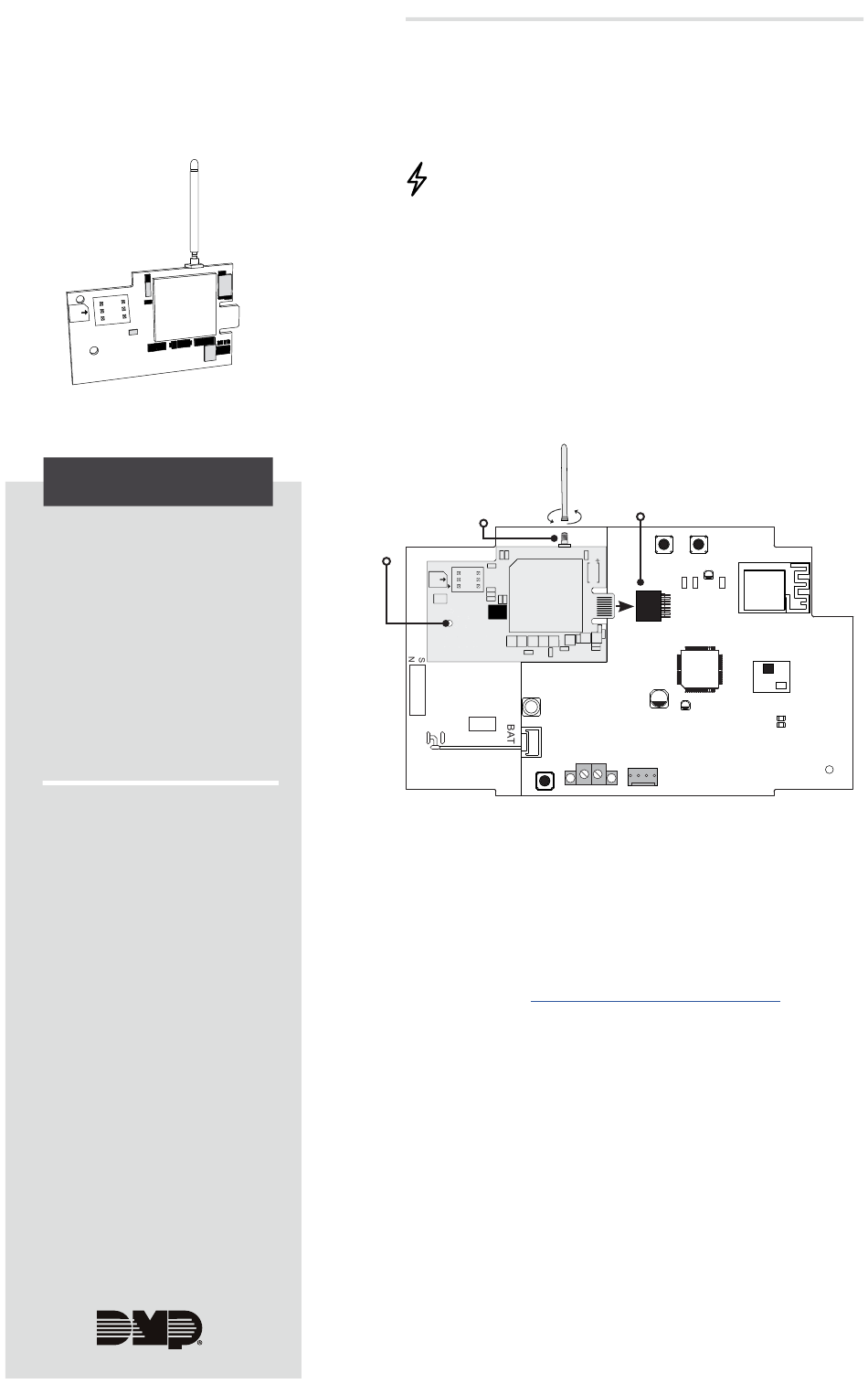

Figure 2: Installing the 265LTE-INT
on the XTLplusINT
ACTIVATE THE 265LTE-INT
Cellular service is required before using the
265LTE-INT for signal transmission. The
communicator comes ready for activation with
SecureCom Wireless. Use Remote Link
TM
Admin site (dealer.securecomwireless.com), or call
TM
DMP Customer Service (1-866-266-2826) to activate
the 265LTE-INT.
Navigate to Remote Link and select a panel.
Select Program in the top menu and select
Communications from the drop-down menu.
Select Cellular Network as the Communication Type
and click Activate.
Select SIM as the SIM Type.
Enter the SIM number found on the 265LTE-INT label
and select Activate.
Select a Rate Plan for the 265LTE-INT and click
Activate.
Eight-Pin CELL MODULE
Connector
LOAD RESET
PROG
+ DC -
R B
, the Dealer
