DMP 263LTE-INT Series Installation Manual

263LTE-INT SERIES
CELLULAR COMMUNICATOR
Installation Guide

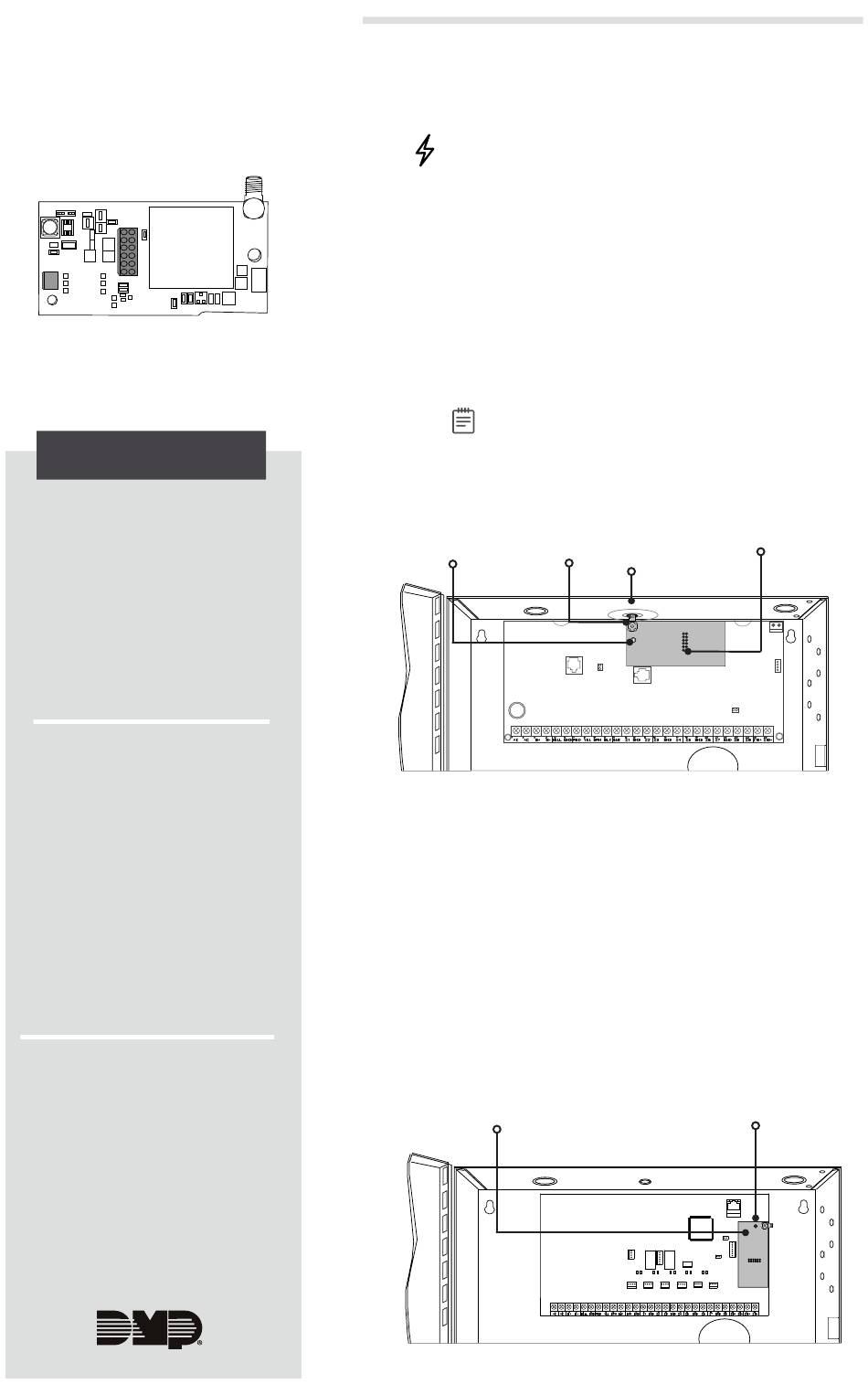

Figure 1: 263LTE-INT
DESCRIPTION
The 263LTE-INT Series Cellular
Communicator provides
a fully-supervised alarm
communication path over an
LTE network. The 263LTE-INT
installs on the panel inside
the enclosure and is powered
by the panel so no additional
enclosure, power supply, or
battery back-up is needed.
Compatibility
Control panel firmware
should be updated to the
following versions when
installing a 263LTE-INT:
• XT30INT/XT50INT
Series panels with
Version 693 or higher
• XR150INT/XR550INT
Series panels with
Version 693 or higher
What is Included
• 263LTE-INT Cellular
Communicator
• 383 antenna
• PCB standoff
• Hardware pack
1
INSTALL THE 263LTE-INT
Caution: Touch grounded metal to discharge
static before handling the panel.
XT30INT/XT50INT Series Panels
1. Open the panel enclosure, set the reset
jumper, and remove power from the panel.
2. Insert the included standoff into the
panel standoff hole.
3. Align the 263LTE-INT SMA antenna
connector with the antenna hole in the top
of the panel enclosure, place one washer
around the connector, and secure it on the
12-pin cell module connector. See Figure 2.
Note: For XT50INT panels, install the included
washers between the antenna and the panel.
4. Align the 263LTE-INT standoff hole with the
standoff already placed in the panel and
snap it into place.
Standoff and
Standoff Hole
SMA Connector
Figure 2: 263LTE-INT on an XT30INT/XT50INT Panel
XR150INT/XR550INT Series Panels
1. Open the panel enclosure, set the reset
jumper, and remove power from the panel.
2. Insert the included standoff into the
XR150INT/XR550INT Series panel standoff
hole.
3. Secure the 263LTE-INT on the 12-pin cell
module connector. See Figure 3.
4. Align the 263LTE-INT standoff hole with the
standoff already placed in the panel and
snap it into place.
Back of the
263LTE-INT
Figure 3: 263LTE-INT on an XR150INT/XR550INT Panel
Back of the
263LTE-INT
Washer (XT50INT only)
Standoff and
Standoff Hole
1
2
3
4
