DMP 263LTE Series Installation Manual

263LTE SERIES CELLULAR
COMMUNICATOR
Installation Guide

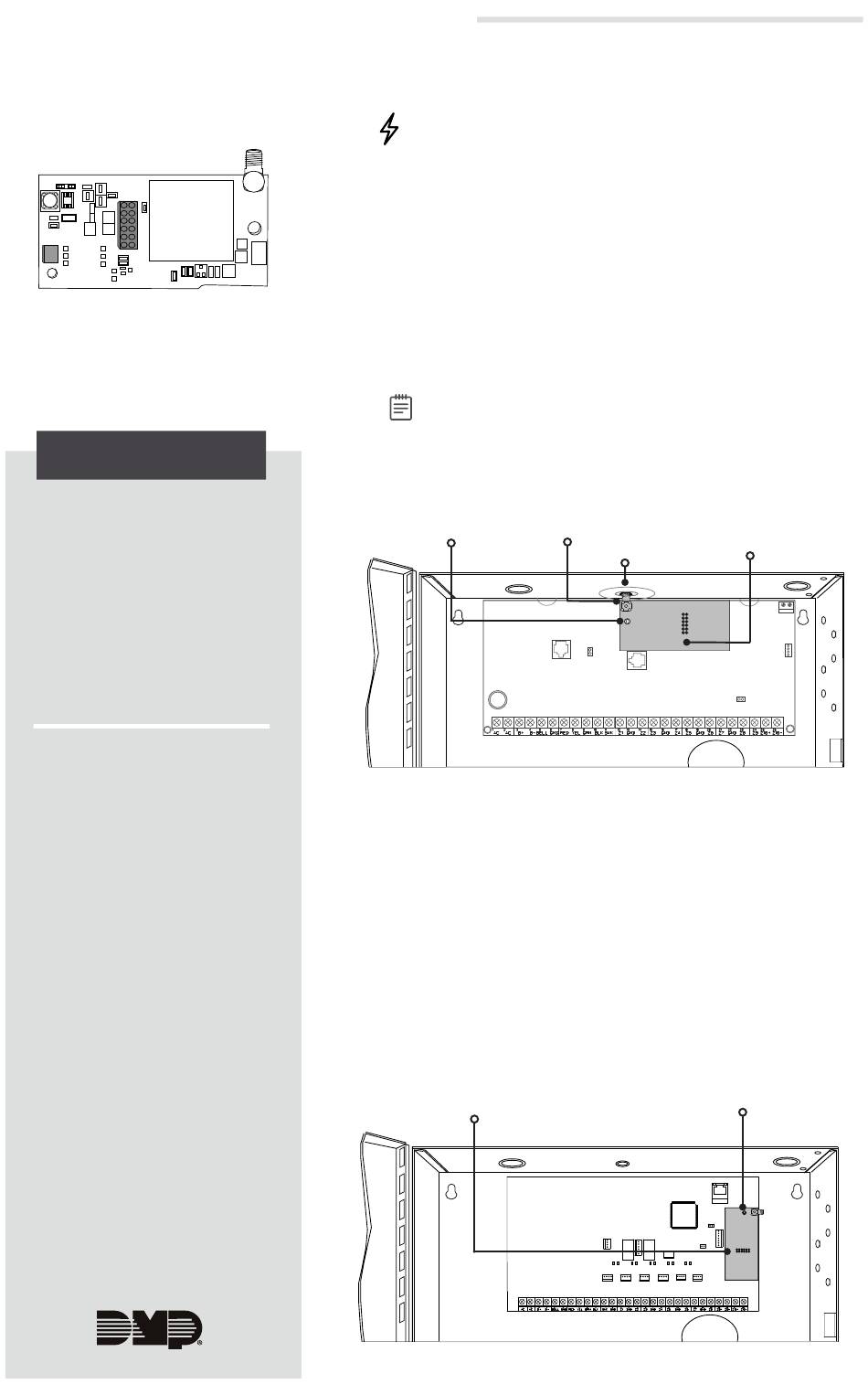

Figure 1: 263LTE
DESCRIPTION
The 263LTE Series Cellular
Communicator provides
a fully-supervised alarm
communication path over
an LTE network. The 263LTE
installs on the panel inside
the enclosure and is powered
by the panel so no additional
enclosure, power supply, or
battery back-up is needed.
What is Included?
• 263LTE Cellular
Communicator
• 383 antenna
• PCB standoff
• Hardware pack
1
INSTALL THE 263LTE
Caution: Touch grounded metal to discharge static
before handling the panel.
XT Series Control Panels
1. Open the panel enclosure, set the reset jumper,
and remove power from the panel.
2. Insert the included standoff into the panel
standoff hole.
3. Align the 263LTE SMA antenna connector
with the antenna hole in the top of the panel
enclosure, place one washer around the
connector, and secure it on the 12-pin cell module
connector. See Figure 2.
Note: For XT50 and XT75 panels, install the included
washers between the antenna and the panel.
4. Align the 263LTE standoff hole with the standoff
already placed in the panel and snap it into place.
Standoff and
Standoff Hole
Figure 2: 263LTE on an XT Series Control Panel
XR and XF6 Series Control Panels
1. Open the panel enclosure, set the reset jumper,
and remove power from the panel.
2. Insert the included standoff into the
panel standoff hole.
3. Secure the 263LTE on the 12-pin cell module
connector. See Figure 3.
4. Align the 263LTE standoff hole with the standoff
already placed in the panel and snap it into place.
Back of the
263LTE
Figure 3: 263LTE on an XR and XF6 Series Control Panel
SMA Connector
Washer
Back of the
263LTE
1
2
3
4
Standoff and
Standoff Hole
