V7 UPS1RM2U1500 User Manual

Ups 1500va 2u r/t lcd line interactive
Hide thumbs Also See for UPS1RM2U1500:
Table of Contents

Advertisement

Quick Links

Download this manual
UPS 1500VA 2U R/T LCD LINE INTERACTIVE
UPS1RM2U1500-1N
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UPS1RM2U1500 and is the answer not in the manual?

Questions and answers

Related Manuals for V7 UPS1RM2U1500

Summary of Contents for V7 UPS1RM2U1500

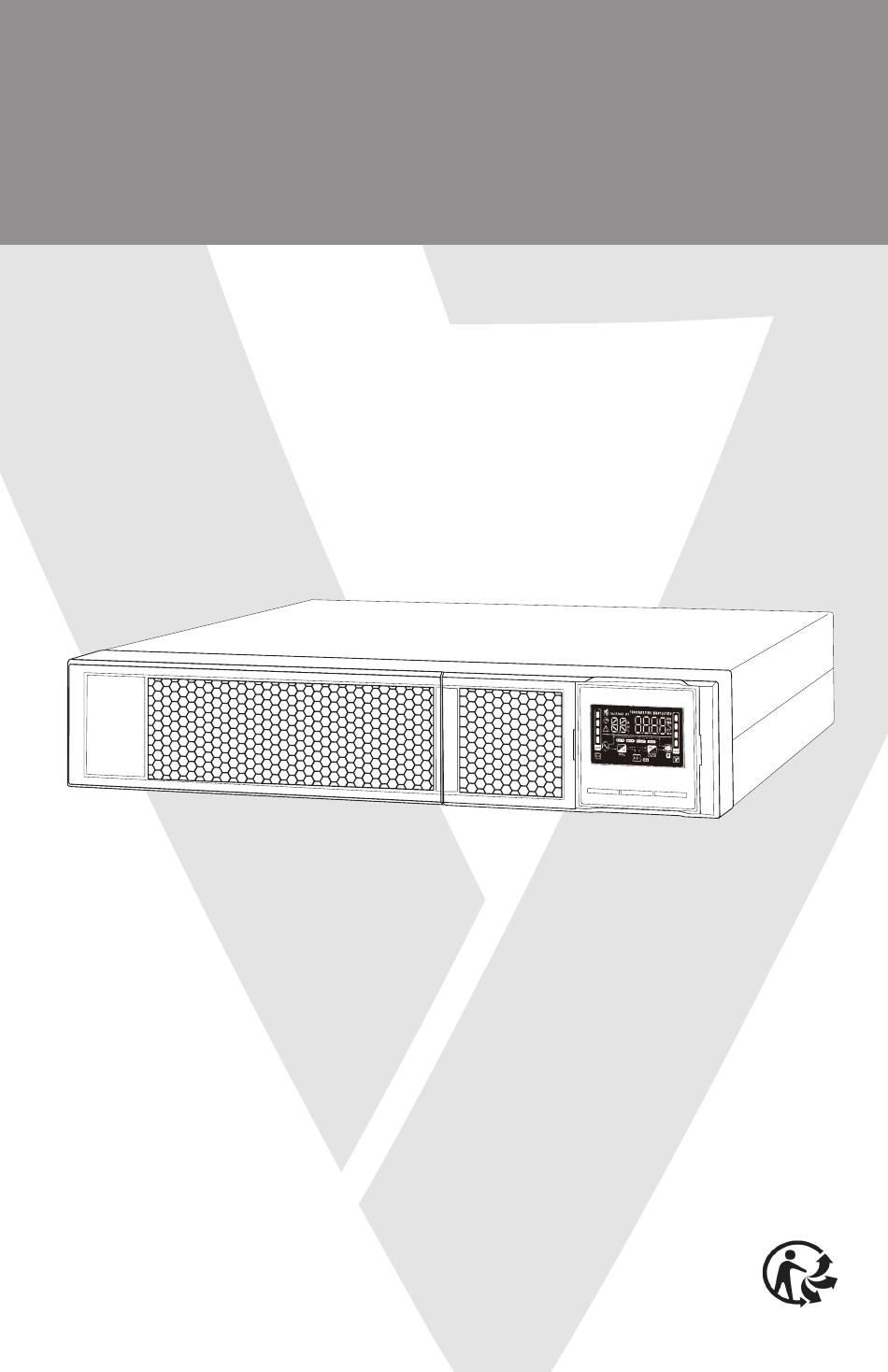

  • Page 1 UPS 1500VA 2U R/T LCD LINE INTERACTIVE UPS1RM2U1500-1N User Guide...
  • Page 2 1. Rear Panel View NOTE: Inspect the unit for shipping damage prior to installation Programmable outlets: connect to non-critical loads. Output receptacles: connect to mission-critical loads. AC input Input circuit breaker Network/Fax/Modem surge protection Emergency power off function connector (EPO) USB communication port RS232 communication port SNMP intelligent slot...

  • Page 3: Rack Mount Installation

    2. Installation The UPS ships without the battery terminals connected. Follow these steps to reconnect the battery before attempting to operate the UPS Remove the front panel Connect the battery terminals Replace the front panel and AC input cable Rack Mount Installation CAUTION –...

  • Page 4: Connecting The Ups

    NOTE: When installing the UPS using tower feet, place them 70mm (2.75”) from the ends of the UPS. 3. Connecting the UPS Step 1: UPS input connection Plug the UPS into a two-pole, three-wire, grounded power receptacle only. Do not use extension cords.

  • Page 5: Step 8: Install Software

    Step 4: Network connection Network/Fax/Phone surge port Connect a modem/phone/fax line into surge-protected “IN” RJ-11 connector and another modem/fax/phone line cable to the “OUT” RJ-11 connector. Step 5: Disable and enable EPO function This UPS is equipped with Emergency Power Off (EPO) function. The UPS default configuration ships with Pin 1 and Pin 2 closed (a plate covers Pin 1 and Pin 2) for UPS normal operation.

  • Page 6: Battery Replacement

    3. Battery Replacement When the icons are flashing in the LCD display and an audible alarm sounds every 2 seconds, the batteries need replacing. Contact your reseller or service provider for the proper replacement batteries. The battery can be swapped without powering off the UPS off or disconnecting the load.

  • Page 7: Button Operation

    4. Operations 4.1 Button Operation Button Function ON/MUTE Button Ø Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds to turn on the UPS. Ø Mute the alarm: After the UPS is turned on in battery mode, press and hold this button for at least 3 seconds to disable or enable the alarm system.
  • Page 8 4.2 LCD Panel Display Function Backup time information Indicates the estimated backup time. H: hours, M: minute, S: second. Configuration and fault information Indicates the configuration items. Configuration items are listed in detail in section 4-5. Indicates the warning and fault codes. Codes are listed in detail in section 4-7 and 4-8.
  • Page 9 Battery information Indicates the battery level by 0-24%, 25-49%, 50-74%, and 75-100%. Indicates low battery. 4.3 Audible Alarm Battery Mode Sounds every 10 seconds Low Battery Sounds every 2 seconds Overload Sounds every second Fault Continuously sounds 4.4 LCD Display Wordings Index Abbreviation Display content Definition...
  • Page 10 4.5 UPS Settings There are two parameters to set up the UPS. Parameter 1: Program Refer to below table. Parameter 2: Setting options or values within each program. 01: Output voltage setting Interface Setting Parameter 2: Output voltage For 120VAC models, you may choose the following output voltage: 100: Sets output voltage to 100VAC 110: Sets output voltage to 110VAC 115: Sets output voltage to 115VAC...
  • Page 11 05: Autonomy limitation setting Interface Setting Parameter 2: Set up backup time on battery mode for general outlets. 0-999: Set the backup time in minutes from 0-999 for general outlets on battery mode. DIS: Disable the autonomy limitation. The backup time depends on battery capacity.
  • Page 12 00: Exit setting Interface Setting Exit settings mode. Programmable outlets settings Step 1: Before entering setting mode, place the UPS in Stand-by mode (Off-charging) and make sure the battery is connected. The LCD display is shown at right. Step 2: Press and hold the “Selection”...

  • Page 13: Warning Indicator

    Buck mode when AC When the input voltage is higher than the voltage is normal. regulation range, but lower than high loss point, AVR ‘buck’ mode will be activated. Boost mode when When the input voltage is lower than the voltage AC is normal.

  • Page 14: Troubleshooting

    EPO enable Sounds every 2 seconds Over temperature Sounds every 2 seconds Charger failure Sounds every 2 seconds Sounding every 2 seconds (UPS is Battery fault off as a precaution - check the battery) Battery replacement Sounds every 2 seconds EEPROM error Sounds every 2 seconds NOTE: “Site Wiring Fault”...

  • Page 15: Storage And Maintenance

    The UPS shut down Fault code 43 and the icon Remove excess loads from automatically because of is displayed on the LCD. Alarm UPS output and restart it. overload at the UPS output. sounds continuously. The UPS shut down Fault code 14 is displayed on Check output wiring and if automatically because a short the LCD and the alarm sounds...

  • Page 16: Specifications

    6. Specifications MODEL UPS1RM2U1500 CAPACITY 1500VA / 1350W INPUT Acceptable Voltage Range 75-117/81-134/86-139/89-145/102-152VAC Frequency Range 60/50 Hz (auto sensing) OUTPUT Voltage Regulation (AC Mode) * 100*(-13%/+10%)/110 (-15%/+10%)/115 (-14%/+10%)/120 (-14%/+10%)/125 (-11%/+11%) VAC Voltage Regulation (Batt. Mode) 100/110/115/120/125 VAC ± 1.5% (before low battery alarm) Frequency Range (Batt.

This manual is also suitable for:

Ups1rm2u1500-1n
