Specifications
lGENERAL
Power Supply:
Power Consumption:
Power Consumption in Standby Mode:
Dimensions (W×H×D):
Mass:
Operating Temperature Range:
Operating Humidity Range:
lAMPLIFIER SECTION
RMS Output Power: Dolby Digital Mode
lTotal RMS Dolby Digital mode power:
At 1 kHz and total harmonic of 10%
lFront Ch:
lCenter Ch:
lSurround Ch:
At 100 Hz and total harmonic of 10%
lSubwoofer Ch:
DIN Output Power: Dolby Digital Mode
lTotal DIN Dolby Digital mode power:
AC 230-240 V, 50 Hz
135 W
approx. 0.8 W
430×60×363 mm
Main unit approx. 3.5 kg
+5°C to +35°C (+41°F to
+95°F)
5% to 90% RH (no
condensation)
1000 W
125 W / Channel (3 Ω)
250 W / Channel (6 Ω)
125 W / Channel (3 Ω)
250 W / Channel (6 Ω)
DVD Home Theater Sound System
SA-PT450EB
Colour
(K).......................Black Type
At 1 kHz and total harmonic of 1%
lFront Ch:
lCenter Ch:
lSurround Ch:
At 100 Hz and total harmonic of 1%
lSubwoofer Ch:
lFM TUNER, TERMINALS SECTION
Preset Memory:
Frequency Modulation (FM)
Frequency range:
Sensitivity:
S/N 26 dB:
Antenna terminals:
Phone Jack:
Terminal:
Front Music Port:
Sensitivity:
Terminal:
lDISC SECTION
Discs played (8 cm or 12 cm):
(1) DVD [DVD-Video]
© 2007 Matsushita Electric Industrial Co., Ltd. All
rights
reserved.
distribution is a violation of law.
ORDER NO. MD0704033CE
590 W
75 W / Channel (3 Ω)
145 W / Channel (6 Ω)
75 W / Channel (3 Ω)
145 W / Channel (6 Ω)
FM 30 stations
87.50-108.00 MHz
(50-kHz step)
1.8 µV (IHF)
1.4 µV
75 Ω (unbalanced)
Stereo, 3.5 mm jack
100 mV, (1.4 kΩ)
Stereo, 3.5 mm jack
Unauthorized
copying
and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA-PT450EB and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic SA-PT450EB

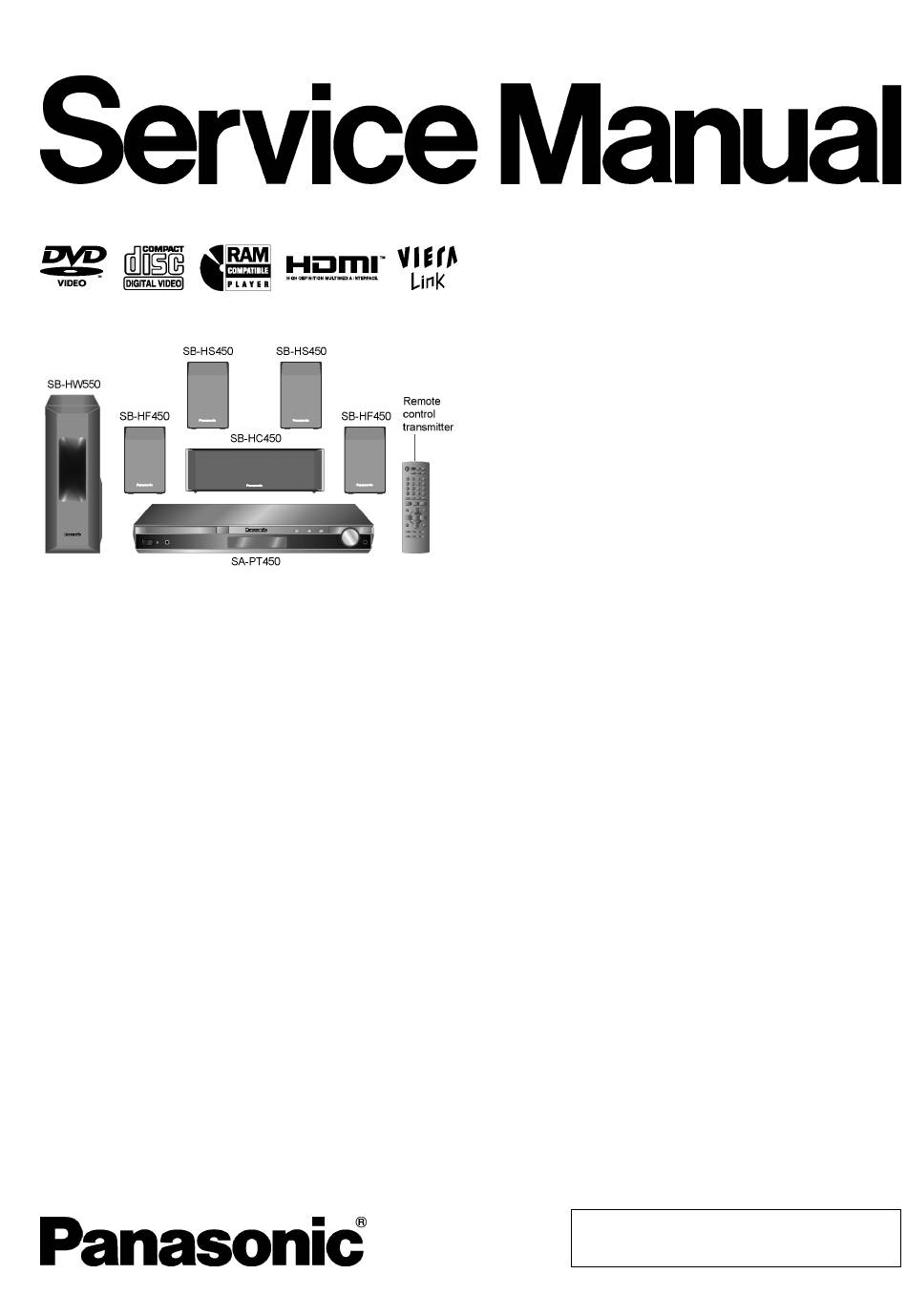

  • Page 1 ORDER NO. MD0704033CE DVD Home Theater Sound System SA-PT450EB Colour (K).......Black Type Specifications lGENERAL 590 W Power Supply: AC 230-240 V, 50 Hz At 1 kHz and total harmonic of 1% 75 W / Channel (3 Ω) Power Consumption: 135 W lFront Ch: 145 W / Channel (6 Ω)
  • Page 2 SA-PT450EB (2) DVD-RAM [DVD-VR, MP3 (*2, *5), JPEG (*4, *5)] 1. Specifications are subject to change without notice. (3) DVD-R [DVD-Video, DVD-VR, MP3 (*2, *5), JPEG (*4, *5)] Mass and dimensions are approximate. (4) DVD-R DL [DVD-Video, DVD-VR] 2. Total harmonic distortion is measured by the digital spectrum analyzer.
  • Page 3: Table Of Contents

    SA-PT450EB CONTENTS Page Page 1 Safety Precautions 1.5. Caution for AC Cord 1.1. GENERAL GUIDELINES 2 Prevention of Electro Static Discharge (ESD) to 1.2. Before Repair and Adjustment Electrostatically Sensitive (ES) Devices 1.3. Protection Circuitry 3 Precaution of Laser Diode 1.4.
  • Page 4 SA-PT450EB 4.1. Service caution based on legal restrictions 13.1. Service Tools and Equipment 5 Handling Precautions for Traverse Unit 13.2. Important points in adjustment 5.1. Cautions to Be Taken in Handling the Optical Pickup Unit 13.3. Storing and handling of test discs 13.4.
  • Page 5: Safety Precautions

    SA-PT450EB 1 Safety Precautions 1.1. GENERAL GUIDELINES 1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or damaged by the short circuit. 2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly installed.
  • Page 6: Safety Parts Information

    SA-PT450EB · Sound stops during a performance. The function of this circuitry is to prevent circuitry damage if, for example, the positive and negative speaker connection wires are “shorted”, or if speaker systems with an impedance less than the indicated rated impedance of the amplifier are used.
  • Page 7: Caution For Ac Cord

    SA-PT450EB 1.5. Caution for AC Cord For your safety, please read the following text WARNING: DO NOT CONNECT EITHER WIRE TO carefully. THE EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE EARTH SYMBOL This appliance is supplied with a moulded three pin COLOURED GREEN OR GREEN/YELLOW.
  • Page 8: Prevention Of Electro Static Discharge (Esd) To Electrostatically Sensitive (Es) Devices

    SA-PT450EB 2 Prevention of Electro Static Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor "chip"...
  • Page 9: Precaution Of Laser Diode

    SA-PT450EB 3 Precaution of Laser Diode CAUTION : This product utilizes a laser diode with the unit turned on, invisible laser radiation is emitted from the pickup lens. Wavelength : 662nm/785nm Maximum output radiation power from pickup : 100µW/VDE Laser radiation from pickup unit is safety level, but be sure the followings: 1.
  • Page 10: About Lead Free Solder (Pbf)

    SA-PT450EB 4 About Lead Free Solder (PbF) 4.1. Service caution based on legal restrictions 4.1.1. General description about Lead Free Solder (PbF) The lead free solder has been used in the mounting process of all electrical components on the printed circuit boards used for this equipment in considering the globally environmental conservation.
  • Page 11: Handling Precautions For Traverse Unit

    SA-PT450EB 5 Handling Precautions for Traverse Unit The laser diode in the optical pickup unit may break down due to static electricity of clothes or human body. Special care must be taken avoid caution to electrostatic breakdown when servicing and handling the laser diode.
  • Page 12 SA-PT450EB...
  • Page 13 SA-PT450EB 6 Accessories Din adaptor Remote control Speaker label Antenna wire AC cord...
  • Page 14: Operation Procedures

    SA-PT450EB 7 Operation Procedures 7.1. Remote Control Key Buttons Operations Television operations Adjust the television volume Select the source DVD: DVD/CD Switch the main unit on or off EXT-IN: AV* , AUX, Change the television’s video input MUSIC P. mode Select disc’s title numbers and etc.,...
  • Page 15: Main Unit Key Buttons Operations

    SA-PT450EB 7.2. Main Unit Key Buttons Operations Standby/on switch Press to switch the unit from on to standby mode MEMORY or vice versa. In standby mode, the unit is still Disc playback , consuming a small amount of power. Memorise the receiving radio stations...
  • Page 16 The volume of the home theater system is set to and a Panasonic television (VIERA) under "HDAVI This function works only when "DVD/CD" or Control". You can use this function by connecting the "AUX"...
  • Page 17: Music Port Connection And Operation

    SA-PT450EB 7.4. Music Port Connection and Operation The Music Port allows you to connect and enjoy To select "MUSIC P.". music from an external device (example: MP3 play MUSIC P. through your home theater system. Preparation To avoid distorted sound, make sure that any...
  • Page 18: Audio And Video Connections

    OI Set "Video Output Mode" ( page 23, Picture Menu). VIERA Link ("HDAVI Control") If your Panasonic television is an HDMI control compatible television, you can operate your television synchronising Æ with home theater operations or vice versa ( refer to OI page 36).
  • Page 19 SA-PT450EB 7.5.3. Audio Connection for Video Cassette Recorder or Television Æ refer to OI Press [EXT-IN] ( page 15) to select "AUX" as the source to operate the audio input. This audio connection will enable you to play audio from your video cassette recorder or television through your home theater system.
  • Page 20: Disc Information

    SA-PT450EB 7.6. Disc Information 7.6.1. Disc Playability (Media) Commercial discs Indicated in Disc Logo these Remarks instructions by DVD-Video High quality movie and music discs. Music discs with video. Video CD Including SVCD (Conforming to IEC62107). Music discs Recorded discs...
  • Page 21 SA-PT450EB 7.6.2. File Extension Type Support (WMA/MP3/JPEG) When there are more than eight groups, the eighth group onwards will be displayed on one vertical line in the menu screen. There may be differences in the display order on the menu screen and computer screen.
  • Page 22: New Features

    SA-PT450EB 8 New Features 8.1. About HDMI 8.1.1. What is HDMI? 8.1.2. Advanced Digital Pictures...
  • Page 23 SA-PT450EB 8.1.3. Advanced Digital Sound 8.1.4. Easy to Use 8.1.5. HDMI Compatible Products...
  • Page 24: Self-Diagnosis And Special Mode Setting

    SA-PT450EB 9 Self-Diagnosis and Special Mode Setting 9.1. Service Mode Summary Table The service modes can be activated by pressing various button combination on the main unit and remote control unit. Below is the summary for the various modes for checking:...
  • Page 25 SA-PT450EB 9.2.1. Service Mode Table 1 Item Key Operation FL Display Mode Name Description Front Key Jitter check Jitter check. In STOP (no disc) mode, (Display 1) Jitter rate is measured and displayed. press [STOP] button on the Measurement is repeatedly done in main unit, and [5] button on the cycle of one second.
  • Page 26 SA-PT450EB 9.2.2. Service Mode Table 2 Key Operation Item FL Display Mode Name Description Front Key (Display 1) DVD laser DVD laser drive current measurement. In STOP (no disc) mode, drive current DVD laser drive current is measured press [STOP] button on the...
  • Page 27 SA-PT450EB 9.2.3. Service Mode Table 3 Item Key Operation FL Display Mode Name Description Front Key Micro-processor Micro-processor firmware version In STOP (no disc) (Display 1) firmware version display & EEPROM checksum display. mode, press [STOP] display & EEPROM checksum is only available...
  • Page 28 SA-PT450EB Product Region TV Broadcasting Model Series Country Region Signal System Region Display Code OSD Menu Language System (Default) (Default) English, Spanish, Canadian P, PC, PX USA, Canada, PX NTSC NTSC (*A) French Japan NTSC NTSC (*A) Japanese, English English, French, German,...
  • Page 29 SA-PT450EB 9.2.4. Service Mode Table 4 Item Key Operation FL Display Mode Name Description Front Key DVD Module P.C.B. firmware version In STOP (no disc) Module P.C.B. is displayed on the FL Display. mode, press [STOP] firmware The firmware version can be updated...
  • Page 30 SA-PT450EB 9.2.5. Service Mode Table 5 Item Key Operation FL Display Mode Name Description Front Key Timer 1 check Timer 1 check In STOP (no disc) (Display 1) Laser operation timer is measured mode, press [STOP] separately for DVD laser and CD laser.
  • Page 31 SA-PT450EB 9.2.6. Optical Pick-up Self-Diagnosis The optical pickup self-diagnosis function and tilt adjustment check function have been included in this unit. When repairing, use the following procedure for effective self-diagnosis and tilt adjustment. Be sure to use the self-diagnosis function before replacing the optical pickup when "NO DISC"...
  • Page 32: Dvd Self Diagnostic Function-Error Code

    SA-PT450EB 9.3. DVD Self Diagnostic Function-Error Code 9.3.1. Mechanism Error Code Table Error Diagnosis Contents Description of error Automatic FL Display Remarks Code H01 Tray loading error The tray opening and closing is Press [ STOP] on abnormal. CLOSE and OPEN of the main unit for next error.
  • Page 33 SA-PT450EB 9.3.2. DVD Module Error Code Table Error Diagnosis Contents Description of error Automatic FL Display Remarks Code U702 HDMI/DVI I2C The communication error of I2C Press [ STOP] on communication error when connecting it with HDMI/ main unit for next error.
  • Page 34 SA-PT450EB 9.3.3. Power Supply Error Code Table Error Diagnosis Contents Description of error Automatic FL Display Remarks Code F61 The abnormalities In normal operation, when DCDET2 Press [ STOP] on in an output or power goes to "L" (Low) (Not during POWER main unit for next error.
  • Page 35: Sales Demonstration Lock Function

    SA-PT450EB 9.3.5. USB Error Code Table Error Diagnosis Contents Description of error Automatic FL Display Remarks Code F650 USB device: Devices Devices other than the mass storage Press [ STOP] on other than mass class are connected. main unit for next error.
  • Page 36: Service Precautions

    SA-PT450EB 9.5. Service Precautions 9.5.1. Recovery after the DVD player is repaired · When the FLASH ROM IC or DVD Module P.C.B. is replaced, carry out the recovery processing to optimize the drive. Playback the recovery disk to process the recovery automatically.
  • Page 37: Assembling And Disassembling

    SA-PT450EB 10 Assembling and Disassembling “ATTENTION SERVICER” Be careful when disassembling and servicing. Some chassis components may have sharp edges. Special Note: 1. This section describes the disassembly procedures for all the major printed circuit boards and main components. 2. Before the disassembly process was carried out, do take special note that all safety precautions are to be carried out.
  • Page 38: Disassembly Flow Chart

    SA-PT450EB 10.1. Disassembly Flow Chart 10.3. Top Cabinet 10.4. DVD Lid 10.8. Scart P.C.B. 10.9. Rear Panel 10.10. DVD Mechanism 10.13. Main P.C.B. 10.5. Front Panel Unit 10.14. Regulator IC 10.6. Volume P.C.B. 10.11. Relay P.C.B. (IC2903) 10.12. DVD Module 10.7.
  • Page 39: Main Components And P.c.b. Locations

    SA-PT450EB 10.2. Main Components and P.C.B. Locations...
  • Page 40: Disassembly Of Top Cabinet

    SA-PT450EB 10.3. Disassembly of Top Cabinet Step 1 Remove 4 screws. Step 2 Remove 3 screws at the rear panel Step 3 Lift up and remove the top cabinet in the direction of arrows. Step 2 Insert the gear jig into the tray open/ close hole.
  • Page 41: Disassembly Of Front Panel

    SA-PT450EB Special Note : Avoid placing the set in a position that might cause damage to the jacks when removing the front panel. Note : You can return the tray by turning the gear jig clockwise. Step 4 Remove the front panel in the direction of arrows.
  • Page 42: Disassembly Of Scart P.c.b

    SA-PT450EB · Disassembly of Volume P.C.B. Step 4 Remove 3 screws from the Volume P.C.B. Step 5 Release the hook & remove Volume P.C.B. 10.8. Disassembly of Scart P.C.B. · Follow (Step 1) to (Step 3) of Item 10.3. Step 1 Remove 2 screws from the rear panel.
  • Page 43: Disassembly Of Dvd Module

    SA-PT450EB Step 2 Remove the wire clamper to detach the fan unit connector (CN5501) on D-Amp P.C.B. Step 3 Detach FFC cable from the connector (CN2008) on Main P.C.B. Step 4 Release the tab on each side of the rear panel in the direction of arrows.
  • Page 44: Disassembly Of Main P.c.b

    SA-PT450EB · Disassembly of Mecha Chassis damage to FFC cables. Step 1 Release the claws of the mecha chassis in the direction 10.13. Disassembly of Main P.C.B. of arrows at the bottom chassis. · Follow (Step 1) to (Step 3) of Item 10.3.
  • Page 45: Replacement Of Regulator Ic (Ic2903)

    SA-PT450EB 10.14. Replacement of Regulator IC (IC2903) Note: Refer to the diagrams of Main P.C.B. (Item 10.13) for the location of the part. · Follow (Step 1) to (Step 3) of Item 10.3. 10.15. Disassembly of D-Amp P.C.B. · Follow (Step 1) to (Step 6) of Item 10.13.
  • Page 46: Replacement Of Digital Amp Ic (Ic5000)

    SA-PT450EB Step 2 Remove 1 screw from the top of the heatsink unit A. Step 7 Remove 5 screws from the rear panel. Step 3 Remove the TR spring in the direction of the arrow. Step 8 Release the tab of the rear panel in the direction of Step 4 Remove the digital amp IC (IC5000) from the heatsink arrow.
  • Page 47 SA-PT450EB Step 4 Detach FFC cable from the connector (CN5802) on SMPS P.C.B. Step 5 Remove the lead clamper. Step 2 Remove 1 screw from the switch regulator IC (IC5701) or diode (D5702). Step 3 Remove the switch regulator IC (IC5701) or diode (D5702) from the heatsink unit B.
  • Page 48: Replacement Of Regulator Diode (D5803)

    SA-PT450EB Step 2 Remove 1 screw from the regulator diode. Step 3 Remove the regulator diode (D5801/D5802) from the heatsink unit C. Caution : Handle the heatsink unit C with caution due to its high temperature after prolonged use. Touching it may lead to Step 2 Remove 1 screw from the regulator diode (D5803).
  • Page 49: Disassembly Procedure

    SA-PT450EB 11 Assembly and disassembly of DVD Mechanism Unit 11.1. Disassembly Procedure Step 4 Remove the traverse unit. 11.1.1. Disassembly of Traverse Unit (with Middle Chassis) Step 1 Slide the lever (A) in the arrow direction (to the opposite side) till it stops.
  • Page 50 SA-PT450EB l(Assembly of the tray unit) Step 2 Raise the mecha chassis vertically. Step 1 Insert a part of the tray into the unit sliding over the Step 3 Slide the lever in the arrow direction till it stops and pull groove on the mecha chassis.
  • Page 51 SA-PT450EB Step 4 Remove the belt. Step 5 Unlock the tab and remove the pulley gear. 11.1.3. Disassembly of Loading Section Step 6 Remove the relay gear. Step 1 Spread the tabs at the both sides and push out the drive arm.
  • Page 52: Disassembly Of Traverse Unit

    SA-PT450EB Step 9 Pull the lever (B) at the bottom side in the direction of arrow and remove the change lever. 11.1.5. Disassembly of Traverse Unit Step 1 Spread the tabs to push in the pin in the direction of arrows.
  • Page 53 SA-PT450EB Step 3 Remove the middle chassis. Step 4 Remove the traverse unit.
  • Page 54: Service Position

    SA-PT450EB 12 Service Position 12.1. Checking & Repairing Scart P.C.B. Step 1 Remove the top cabinet to service Scart P.C.B. 12.3. Checking & Repairing Main P.C.B. Step 1 Remove the top cabinet. Step 2 Remove the DVD lid. Step 3 Disassemble the front panel.
  • Page 55: Checking & Repairing D-Amp

    SA-PT450EB 12.4. Checking & Repairing D-Amp P.C.B. · Follow (Step 1) to (Step 14) of Item 12.3. Step 1 Turn over D-Amp P.C.B vertically and place it according to the diagram shown below. Step 14 Connect FFC cable at the connectors (CN2001, CN2007, CN2008, CN2010 &...
  • Page 56 SA-PT450EB...
  • Page 57: Measurements And Adjustments

    SA-PT450EB 13 Measurements and Adjustments 13.1. Service Tools and Equipment Application Name Number Tilt adjustment DVD test disc DVDT-S20 [SPG] TORX screw driver (T6) Available on sales route. (T6) or RFKZ0185 [SPG] Others Grease RFKXPG641 [SPG] Confirmation CD test disc...
  • Page 58: Optical Adjustment

    SA-PT450EB 13.4. Optical adjustment 13.4.1. Optical pickup tilt adjustment Measurement point Adjustment point Mode Disc Tangential adjustment screw T01 (inner periphery) play DVDT-S20 [SPG] Tilt adjustment screw T30 (center periphery) T43 (outer periphery) play Measuring equipment Adjustment value None (Main unit display for servicing is used.) Adjust to the minimum jitter value.
  • Page 59 SA-PT450EB 14 Abbreviations INITIAL/LOGO ABBREVIATIONS ERROR TORQUE CONTROL ERROR TORQUE CONTROL INITIAL/LOGO ABBREVIATIONS REFERENCE A0~UP ADDRESS ENCSEL ENCODER SELECT ACLK AUDIO CLOCK ETMCLK EXTERNAL M CLOCK (81MHz/40.5MHz) AD0~UP ADDRESS BUS ETSCLK EXTERNAL S CLOCK (54MHz) ADATA AUDIO PES PACKET DATA...
  • Page 60 SA-PT450EB INITIAL/LOGO ABBREVIATIONS INITIAL/LOGO ABBREVIATIONS READ ENABLE VBLANK V BLANKING RFENV RF ENVELOPE COLLECTOR POWER SUPPLY RF PHASE DIFFERENCE OUTPUT VOLTAGE (CD-ROM) REGISTER SELECT VCDCONT VIDEO CD CONTROL (TRACKING RSEL RF POLARITY SELECT BALANCE) RESET DRAIN POWER SUPPLY VOLTAGE RESERVE...
  • Page 61: Voltage And Waveform Chart

    SA-PT450EB 15 Voltage and Waveform Chart 15.1. DVD Module P.C.B. IC3901 Ref No. MODE CD PLAY IC3901 Ref No. MODE CD PLAY IC3901 Ref No. MODE CD PLAY IC3901 Ref No. MODE CD PLAY IC3901 Ref No. MODE CD PLAY IC3901 Ref No.
  • Page 62 Q3941 Q3942 Ref No. MODE CD PLAY -0.5 Q3943 Q8321 Q8325 Q8331 Q8335 Ref No. MODE CD PLAY Q8341 Q8551 Q8552 Q8561 Q8562 Ref No. MODE CD PLAY Ref No. QR8111 QR8420 QR8571 MODE CD PLAY SA-PT450EB DVD MODULE P.C.B.
  • Page 63 MODE CD PLAY -6.9 -10.9 -7.4 -7.4 -0.6 STANDBY -6.9 -7.5 -7.5 -0.6 Q2907 Q2908 Q2909 Q2910 Q2911 Ref No. MODE CD PLAY -2.5 STANDBY -2.4 Q2916 Q2919 Q2921 Q2922 Ref No. MODE CD PLAY STANDBY 14.4 SA-PT450EB MAIN P.C.B.
  • Page 64 Ref No. MODE CD PLAY STANDBY Q5604 Q5640 Q5641 Q5642 Q5644 Ref No. MODE CD PLAY 16.9 STANDBY 16.9 SA-PT450EB D-AMP P.C.B. 15.4. SMPS P.C.B. IC5701 IC5799 IC5801 Ref No. MODE -14.6 -14.4 CD PLAY -11.3 -14.4 -14.6 -14.7 -14.6 -13.7...
  • Page 65 -22.2 Q6201 Ref No. MODE CD PLAY STANDBY SA-PT450EB PANEL P.C.B. IC904 Ref No. MODE CD PLAY STANDBY SA-PT450EB TRAY LOADING P.C.B. 15.6. Scart P.C.B. IC1101 Ref No. MODE CD PLAY STANDBY IC1101 IC1102 Ref No. MODE CD PLAY STANDBY...
  • Page 66: Waveform Chart

    SA-PT450EB 15.7. Waveform Chart 15.7.1. Waveform 1 WF No. IC1101-8,21,24 (PLAY) WF No. IC1101-11 (PLAY) WF No. IC1101-13 (PLAY) 1.3Vp-p(20usec/div) 1.1Vp-p(20usec/div) 0.5Vp-p(20usec/div) 0.5Vp-p(20usec/div) WF No. IC1102-2 (PLAY) 0.8Vp-p(20usec/div) 0.9Vp-p(20usec/div) 2.1Vp-p(20usec/div) 2.1Vp-p(20usec/div) WF No. IC2001-15 (PLAY) WF No. IC2101-14,19 (PLAY) WF No. IC2101-15,16,17, 18 (PLAY) 5.2Vp-p(100nsec/div)
  • Page 67 SA-PT450EB 15.7.2. Waveform 2 WF No. IC5000- 1 (PLAY) WF No. IC5000-10,14 (PLAY) WF No. IC5000- 2,22 (PLAY) WF No. IC5200- 1 (PLAY) 5.8Vp-p(1usec/div) 76Vp-p(1usec/div) 0.6Vp-p(200usec/div) 5.8Vp-p(1usec/div) WF No. IC5200-10,14 (PLAY) WF No. IC5200-2,22 (PLAY) WF No. IC5300- 1 (PLAY) WF No.
  • Page 68: Illustration Of Ic's, Transistors And Diodes

    SA-PT450EB 16 Illustration of IC's, Transistors and Diodes C0ABBB000230 (8p) C1BB00001008 (16p) C0HBB0000057 (44p) RFKWMHB0C320 C0JBAF000716 (14p) C1AB00002735 (100p) C0ABBB000350 (8p) C0DBZYY00018 (8p) C0JBAZ001251 (20p) C2CBYY000418 (100p) C0EBA0000029 (4p) C3ABPG000145 (54p) MN2DS0018VP (216P) C0FBBK000050 (28p) C9ZB00000461 (32p) MN864702A (128P) No.1...
  • Page 69: Wiring Connection Diagram

    (SOLDER SIDE) FP8002 CN2007 COMPONENT VIDEO OUT TO OPTICAL MAIN P.C.B. JK2001 PICKUP (SOLDER SIDE) TO SPINDLE MOTOR ASS’Y CN2006 DVD MODULE P.C.B. (SIDE:B) CN2002 CN2001 CN2015 FP8101 CN2008 NO.316 CS901 TRAY LOADING P.C.B. (SOLDER SIDE) FP3902 SA-PT450EB WIRING CONNECTION...
  • Page 70 SA-PT450EB...
  • Page 71: Block Diagram

    S6901 S6902 VREF FROM AUDIO CN2007 CN6902 KEY1 97 MPORT SELECTOR REVERSE FORWARD STOP PLAY S6801 S6802 S6803 S6804 S6907 VREF SENSE1 SENSE1 FROM/TO FROM AUDIO AUDIO SENSE2 SENSE2 CN2020 CN6901 KEY2 91 HP DETECT SA-PT450EB SYSTEM CONTROL BLOCK DIAGRAM...
  • Page 72 LD+(CD) OPOUT LD DRIVE LPCO2 OPIN+ FP8531 PIN(CD) LPC2 HFMON TRCDATA1 ACTUATOR VO1+ TRACKING LEVEL COIL SHIFT FP8531 FP8531 VO1- FOCUS COIL FP8531 VO2+ LEVEL SHIFT FP8531 QR8571 VO2- FP8531 SUPPLY CONTROL D+3.3V SWITCH VCC1 SA-PT450EB DVD (SERVO) BLOCK DIAGRAM...
  • Page 73 SA-PT450EB 18.3. DVD (Audio) : DVD RF SIGNAL LINE : DVD AUDIO SIGNAL LINE : MAIN SIGNAL LINE : USB SIGNAL LINE IC8421 IC8001 C0FBBK000050 MN2DS0018VP AUDIO DAC DV5.0 LSI OPTICAL PIC-UP UNIT FP8531 FP8101 CN2001 OUTPUT AMP AND V OUT1...
  • Page 74 RGB H CN2008 CN1001 C IN 6 MHz C OUT BIAS Q1002 SWITCH FROM SYSTEM CONTROL Q1006 BUFFER CN2008 CN1001 YC H Q2805 CN2008 CN1001 INVERTER WIDE 1 Q1008 Q1005 CN2008 CN1001 SWITCH VMUTE INVERTER SA-PT450EB DVD (VIDEO) BLOCK DIAGRAM...
  • Page 75 AND GATE NIRQ BUFFER HOTPLG D+3.3V NRST TXRST NRESET TRCDATA2 IC3952 C0CBCDC00063 HOTPLG TERMINAL VOLTAGE REGULATOR Q3941,Q3942,Q3943 CN2010 FP3902 CEC IN TO/FROM CEC CIRCUIT SYSTEM CONTROL CN2010 FP3902 CEC OUT M + 9V + 5V SA-PT450EB DVD (HDMI) BLOCK DIAGRAM...
  • Page 76 OP OUT 1 OP IN 2 OP OUT 2 SUBWOOFER CN2009 CN5050 TO AUDIO DIGITAL AMP JK6802 MUSIC PORT IC6107 C0ABBB000230 MUSIC PORT AMP CN2007 CN6902 MPORT L-CH MPORT R-CH CN2007 CN6902 MPORT MPORT SYSTEM CONTROL SA-PT450EB AUDIO BLOCK DIAGRAM...
  • Page 77: Audio Digital Amp

    D-TYPE FLIP-FLOP Q5641 FAN LOCK CN5501 FAN LOCK DETECT Q1 2 Q5640, Q5642, Q5644 FAN DC OUT CN5501 X5500 FAN MOTOR FAN DC DRIVE FAN GND CN5501 TO SYSTEM CONTROL CN2009 CN5050 DC DET SA-PT450EB AUDIO DIGITAL AMP BLOCK DIAGRAM...
  • Page 78 LIMITING D5802 SWITCH H5500 CN5801 + 30V SENSE + 30V SENSE 7, 8 D5801 H5500 CN5801 - 30V SENSE - 30V SENSE 3, 4 IC5801 C0DABFC00002 SHUNT REGULATOR Q5802, D5806 PC5720 FEED BACK CIRCUIT FEED BACK SA-PT450EB POWER BLOCK DIAGRAM...
  • Page 79: Schematic Diagram Notes

    SA-PT450EB 19 Schematic Diagram Notes : CD Head signal line : DVD Head signal line · This schematic diagram may be modified at any time with the development of new technology. : Main signal line Notes: S901: Play switch. : Tracking Error signal line S902: Open switch.
  • Page 80 SA-PT450EB...
  • Page 81: Schematic Diagram

    SA-PT450EB 20 Schematic Diagram 20.1. DVD Module (DV5/HDMI) Circuit SCHEMATIC DIAGRAM - 1 : CD HEAD SIGNAL LINE : DVD RF SIGNAL LINE : DVD AUDIO SIGNAL LINE : FOCUS ERROR SIGNAL LINE DVD MODULE (DV5) CIRCUIT : +B SIGNAL LINE...
  • Page 82 SA-PT450EB SCHEMATIC DIAGRAM - 2 DVD MODULE (DV5) CIRCUIT : +B SIGNAL LINE : DVD AUDIO SIGNAL LINE : DVD VIDEO SIGNAL LINE : MAIN SIGNAL LINE FP8101 ADAC-CLK ADAC-CLK VGND Y_PY_G LB8303 J0JBC0000042 LRCK D2: DVD MODULE (DV5): SCHEMATIC DIAGRAM 1 - 4...
  • Page 83 SA-PT450EB SCHEMATIC DIAGRAM - 3 DVD MODULE (DV5) CIRCUIT : +B SIGNAL LINE : DVD HEAD SIGNAL LINE : DVD AUDIO SIGNAL LINE : MOTOR DRIVE SIGNAL LINE : DVD RF SIGNAL LINE TO DVD MODULE (DV5) SECTION (1/4) IC9001...
  • Page 84 SA-PT450EB SCHEMATIC DIAGRAM - 4 : CD HEAD SIGNAL LINE : MOTOR DRIVE SIGNAL LINE : DVD RF SIGNAL LINE DVD MODULE (DV5) CIRCUIT : +B SIGNAL LINE : DVD HEAD SIGNAL LINE : TRACKING ERROR SIGNAL LINE : FOCUS ERROR SIGNAL LINE...
  • Page 85 D2: DVD MODULE (DV5): SCHEMATIC DIAGRAM 1 - 4 HD: DVD MODULE (HDMI): SCHEMATIC DIAGRAM - 5 R3906 LEVEL SHIFTER 4.7K IC3952 TXRST C0CBCDC00063 OSC27M TERMINAL VOLTAGE REGULATOR I2C_SCL I2C_SDA RX3901 C3955 D1H410120001 0.01 R3947 VCLK HOTPLG K3903 M+9V DMIX_SEL 2CH_SEL SA-PT450EB DVD MODULE (HDMI) CIRCUIT...
  • Page 86 SECTION (2/4) W2593 VIDEO_+5V D2810 B0JCAE000001 IC2801 Q2805 IC2801 C9ZB00000461 B1GBCFJN0033 Q2801 VIDEO BUFFER INVERTER B1GBCFJN0033 MUTING Q2804 B1GBCFJN0033 MUTING RGB_H C2838 C2837 W2619 W2617 W2618 W2616 VIDEO_+5V W2573 IC2802 C1AB00001731 VIDEO BUFFER TO MAIN SECTION (3/4) SA-PT450EB MAIN CIRCUIT...
  • Page 87 EEPROM MUTE_C_S D2005 L2008 (NOT SUPPLIED) MUTE_S (MODE 1) W2643 B0ACCK000005 G0C3R3JA0027 MUTE_F_SW SYS6V MUTE_F (MODE 2) HOP_DA FHOP SW+5V DC_DET2 Q2003 DC_DET MOD_DA B1GBCFLL0037 W2558 C2006 MOD_DA RESET 50V2.2 VREF TO MAIN SECTION (4/4) SA-PT450EB MAIN CIRCUIT GNDE GNDE...
  • Page 88 R2202 3.3K MIXR MIX-R ADAC5V MIXL C2111 R2102 3.3K MIX-L DVD_ADAC+5V ADAC5V ADGND VGND DGND VGND TO MAIN AGND W2606 SECTION (4/4) DGND_1 VGND VGND CR/PR/R W2630 VGND CB/PB/B W2625 W2659 VGND Y/PY/G VGND SA-PT450EB MAIN CIRCUIT VGND E2901 CHASSIS...
  • Page 89 E2900 YC_H RECOUT_R W2577 ROUT SW+5V_GND TV-RCH AGND AGND TV-LCH L2903 R2930 G0A101G00022 RECOUT_L 4.7K LOUT R1022 L2905 R2923 R2906 G0A100HA0023 M+9V 1.2K 6.8K R1021 C1020 SCART_MUTE 50V4.7 Q1009 B1GDCFGA0018 Q1009 MUTING CONTROL MGND VGND CHASSIS GND SA-PT450EB MAIN CIRCUIT...
  • Page 90 R6934 D6901 B3AAA0000803 AQUA RED LED DGND SYNC CN6902 ACS_MUTE W6119 MPORT-LCH MPORT-LCH AGND MPORT-RCH MPORT-RCH FL_IC_STB FL_IC_STB MAIN CIRCUIT FL_IC_CLK FL_IC_CLOCK (CN2007) FL_IC_IN IN SCHEMATIC FL_IC_DATA DIAGRAM - 7 SW_+5V VREF DGND KEY1 KEY1 SYNC SYNC SA-PT450EB PANEL CIRCUIT...
  • Page 91: D-Amp & Smps Circuit

    D5643 JK5001 B0ACCK000005 SURROUND L- C5697 SURROUND L+ 50V1 signal_trigger SIGNAL SURROUND R- K5253...3 SURROUND R+ D5644 B0ACCK000005 K5252...2 FRONT L- FRONT L+ TO SPEAKERS FRONT R- FRONT R+ CENTER - CENTER + SA-PT450EB D-AMP CIRCUIT SUBWOOFER - SUBWOOFER +...
  • Page 92 C5211 C5222 R5205 MUTE_F L5201 MUTE F_SW (MODE 2) 0.47 5.6K R5200 R5201 G0B9R5K00003 220P 220P FHOP C5203 C5205 C5234 L5200 DC_DET DC_DET G0A150L00003 R5210 VDDA2 1000P 220P 220P MOD_DA MOD_DA VDDP C5509 35V470 VSSP R5211 VSSA2 SA-PT450EB D-AMP CIRCUIT...
  • Page 93 C0DABFC00002 FEED BACK R5728 100K SHUNT REGULATOR W5009 C5700 F1BAF1020020 R5729 W5006 Q5802 1000P Q5802 B1ABCF000176 W5007 FEED BACK CONTROL 3 2 1 PC5701 W5010 B3PBA0000402 ZJ5803 -30V_SENSE D5806 B0BC7R500001 SYS6V FEED BACK QR5810 PCONT B1GBCFLL0037 SA-PT450EB SMPS CIRCUIT INVERTER...
  • Page 94 B0EAMM000057 C5798 SYS6V 50V56 D5896 B0EAMM000057 SYNC D5797 Q5899 D5797 C5898 MA2J72800L B1ABCF000176 R5786 R5795 CURRENT LIMITING SWITCH Q5899 C5794 C5790 2200P R5796 D5793 2.2K D5897 B0EAKB000004 B0BC3R700004 W5011 R5797 4.7K C5791 50V2.2 IC5799 MIP4110MSSCF SWITCHING REGULATOR SA-PT450EB SMPS CIRCUIT...
  • Page 95 C1016 C1035 1000P LOUT 25V22 C1010 CROUT CHASSIS CRIN C1036 1000P VCC2 CRSAG C1021 Q1006 6.3V100 XN0460100L BUFFER W1033 R1006 Q1200 B1ABGC000005 MUTING W1021 BLANKING_IO R1200 R1201 R1203 W1020 Q1200 Q1100 R1101 R1103 R1100 Q1100 B1ABGC000005 MUTING SA-PT450EB SCART CIRCUIT...
  • Page 96 (CN2015) C5704 C5705 TRAY CCW F1BAF1020020 IN SCHEMATIC F1BAF1020020 TRY CLOSE 1000P 1000P DIAGRAM - 7 TRY OPEN ZJ5701 S901 PLAY C984 25V10 S902 OPEN LOADING MOTOR (REF NO. 316) SA-PT450EB VOLUME / AC-INLET / RELAY / TRAY LOADING CIRCUIT...
  • Page 97 (FOR REFERENCE ONLY) TO ACT TO HFM GND(Im) RELAY CIRCUIT VREF2(RF-) (FP8004) PIN(DVD) LD(CD) IN SCHEMATIC LD GND DIAGRAM - 16 LD(DVD) GND(OEIC) VREF1 SUB2 SUB1 PIN(CD) TO LDU GND(Im) VREF SUB2 SUB1 LD(CD) LD(DVD) LDGND SA-PT450EB OPTICAL PICKUP UNIT CIRCUIT...
  • Page 98 SA-PT450EB...
  • Page 99: Printed Circuit Board

    SA-PT450EB 21 Printed Circuit Board 21.1. DVD Module P.C.B. DVD MODULE P.C.B (REPX0563F) Q3942 Q3943 R3945 C8424 R3944 FP3902 FL8104 FP8101 Q3902 R3904 RX3901 Q3901 R3925 R3943 C3927 C3920 R3946 C3964 C8421 VA3912 K8005 R3902 C3918 LB3908 LB8423 LB3906 LB3905...
  • Page 100 SA-PT450EB 21.2. Main P.C.B. MAIN P.C.B. (REPX0589A) R2298 R2282 C2296 W2660 L2701 R2704 W2201 FP2900 R2182 R2275 CN2004 L2910 C2171 C2278 CN2020 IC2102 Q2103 C2196 R2271 R2055 W2403 X2700 Q2101 C2904 R2297 R2701 R2281 R2279 C2199 C2297 D2903 R2902 IC2004...
  • Page 101 SA-PT450EB 21.3. Panel & Volume P.C.B. PANEL P.C.B. (REPX0589A) S6902 (OPEN/CLOSE) CN6902 R6916 W6054 C6910 W6046 MUSIC PORT W6053 W6118 W6114 IC6107 R6919 C6934 R6966 W6119 W6002 R6934 JK6802 W6057 Z6900 W6122 C6937 C6921 R6967 C6913 L6904 Q6201 W6058 L6905...
  • Page 102 SA-PT450EB 21.4. D-Amp P.C.B. D-AMP P.C.B. (REPX0560D) CN5501 W5049 (TO FAN ) Q5640 R5511 R5659 W5048 R5655 R5507 R5023 C5033 R5640 X5500 IC5500 Q5644 Q5642 R5639 W5071 D5503 IC5501 K5004 R5505 W5033 Q5641 W5007 K5406 K5301 W5032 C5000 C5234 W5044...
  • Page 103 SA-PT450EB 21.5. SMPS P.C.B. SMPS P.C.B. (REPX0569A) ZJ5803 Q5720 Q5722 D5729 W5811 D5724 D5723 C5728 W5813 R5725 D5732 C5721 HEATSINK W5003 R5750 W5820 D5702 R5731 W5000 Q5721 C5700 C5726 C5722 C5713 IC5701 R5702 D5727 R5726 R5706 W5718 T5701 R5703 W5709...
  • Page 104 SA-PT450EB 21.6. AC-Inlet, Scart, Relay & Tray Loading P.C.B. AC-INLET P.C.B. (REPX0569A) RELAY P.C.B. (REPX0604A) L5702 L5701 P5701 ZA5701 ZA5702 250V T5AH W5780 W5741 FP8003 W5781 FP8001 AC IN FP8004 (TO OPTICAL PICKUP UNIT) 230V-240V 50HZ W5782 FP8002 ZJ5701 W5783...
  • Page 105: Basic Troubleshooting Guide For Traverse Unit (Dvd Module P.c.b)

    SA-PT450EB 22 Basic Troubleshooting Guide 22.1. Basic Troubleshooting Guide for Traverse Unit (DVD Module P.C.B) Problems Checking Points Checking Components 1) Distorted picture or a) Check SDRAM address, IC8051 abnormal sound is head data bus, CLK and other during the initialization...
  • Page 106: Basic Troubleshooting Guide For Hdmi Av Output

    SA-PT450EB 22.2. Basic Troubleshooting Guide for HDMI AV output Problems Checking Points Checking Components 1) TV does not have any 1) Check setting of the set *This year HDMI always ON. No need check Setup display. Set FL display in Setup Menu whether the Menu.
  • Page 107: Checking Points

    SA-PT450EB Problems Checking Points Checking Components 2) When switching the 1) Supply for Up-Con LB3902 video output mode from (IC3901) 480P to 720p/1080i, TV - Pin 9, 124 2) GND for Up-Con display becomes blank - Pin 7, 125 C3902, C3928, C3925...
  • Page 108 SA-PT450EB 23 Overall Block Diagram for PT450 23.1. SC-PT450 Simplified Block...
  • Page 109 SA-PT450EB 23.2. SC-PT450 Power Block...
  • Page 110 SA-PT450EB 23.3. SC-PT450 SMPS Block...
  • Page 111: Terminal Function Of Ics

    SA-PT450EB 24 Terminal Function of ICs 24.1. IC2001 (C2CBYY000418): Terminal Name Function System Control IC 56 POS_SW Position Sensor 57 NC No Connection Terminal Name Function 58 NC No Connection 59 SENS1 Digital Amp Output Sensor 1 1 TRAY_CLOSE LOADING MECHA CLOSE SW (L: SW...
  • Page 112: Exploded Views

    SA-PT450EB 25 Exploded Views...
  • Page 113: Cabinet Parts Location

    SA-PT450EB 25.1. Cabinet Parts Location...
  • Page 114 SA-PT450EB...
  • Page 115 SA-PT450EB 25.2. Packaging...
  • Page 116: Replacement Parts List

    SA-PT450EB 26 Replacement Parts List Notes: · Important safety notice: Components identified by mark have special characteristics important for safety purpose. Furthermore, special parts which have purposes of fire-retardant (resistors), high-quality sound (capacitors), low-noise (resistors), etc. are used. When replacing any of components, be sure to use only manufacture’s specified parts shown in the parts list.
  • Page 117: Component Parts List

    SA-PT450EB 26.1. Component Parts List Ref. Part No. Part Name & Description Remarks RML0628 CHANGE LEVER Ref. Part No. Part Name & Description Remarks RML0629 LOCK LEVER RML0631 TRAY SLIDER CABINET AND CHASSIS RMM0247-3 DRIVE RACK RMM0248 SUB RACK L6FAJCCH0007...
  • Page 118 SA-PT450EB Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks IC9002 C0JBAZ001251 IC LATCH Q8561 2SD1819A0L TRANSISTOR Q8562 B1ADGB000008 TRANSISTOR TRANSISTORS QR5801 B1GBCFJN0033 TRANSISTOR Q1002 UNR221200L TRANSISTOR QR5810 B1GBCFLL0037 TRANSISTOR Q1003 2SD0601AHL TRANSISTOR...
  • Page 119 SA-PT450EB Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks D5793 B0EAKB000004 DIODE FP8001 K1MN06BA0147 6P CONNECTOR D5797 MA2J72800L DIODE FP8002 K1MN06BA0148 6P CONNECTOR D5798 B0EAMM000057 DIODE FP8003 K1MY26BA0053 26P CONNECTOR D5801 B0HBSM000043...
  • Page 120 SA-PT450EB Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks L8330 G1C100K00019 CHIP COIL L8501 G1C100K00019 CHIP COIL X2001 H2B100500004 CERAMIC RESONATORS L8550 G1C100KA0055 CHIP INDUCTOR X2700 H0H433400002 CRYSTAL X5500 H2A6023A0011 CERAMIC RESONATOR...
  • Page 121 SA-PT450EB Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R1015 ERJ3GEYF750V 75 1/16W R2101 ERJ3GEYJ103V 10K 1/16W R1016 ERJ3GEYF750V 75 1/16W R2102 ERJ3GEYJ332V 3.3K 1/16W R1017 ERJ3GEYF750V 75 1/16W R2103 ERJ3GEYJ273V 27K 1/16W...
  • Page 122 SA-PT450EB Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R2292 ERJ3GEYJ332V 3.3K 1/16W R2870 ERJ3GEYJ103V 10K 1/16W R2296 ERJ3GEYJ222V 2.2K 1/16W R2871 ERJ3GEYJ103V 10K 1/16W R2297 ERJ3GEYJ104V 100K 1/16W R2872 ERJ3GEYJ103V 10K 1/16W...
  • Page 123 SA-PT450EB Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R3945 ERJ2GEJ103X 10K 1/32W R5508 ERJ3GEYJ105V 1M 1/16W R3946 ERJ2GEJ272X 2.7K 1/32W R5510 ERG2SJ271E 270 1/32W R3947 ERJ2GEJ103X 10K 1/32W R5511 ERJ3GEYJ220V 22 1/16W...
  • Page 124 SA-PT450EB Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks R5863 ERJ6GEYF103V 10K 1/10W R8334 ERJ2GEJ102X 1K 1/32W R5864 ERJ6GEYF103V 10K 1/10W R8335 ERJ3RBD201V 200 1/16W R5890 ERJ3GEYJ222V 2.2K 1/16W R8336 ERJ2GEJ330X 33 1/32W...
  • Page 125 SA-PT450EB Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks RX3901 D1H410120001 CHIP RESISTOR W2534 ERJ6GEY0R00V CHIP RESISTOR RX8001 D1H410320002 CHIP RESISTOR W2536 ERJ6GEY0R00V CHIP RESISTOR RX8011 D1H88204A024 CHIP RESISTOR W2539 ERJ6GEY0R00V CHIP RESISTOR...
  • Page 126 SA-PT450EB Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks W6101 ERJ3GEY0R00V CHIP RESISTOR C2016 ECJ1VB1H221K 220P 50V W6102 ERJ3GEY0R00V CHIP RESISTOR C2017 ECJ1VB1H103K 0.01 50V W6103 ERJ3GEY0R00V CHIP RESISTOR C2018 ECEA1AKA470B 47 10V...
  • Page 127 SA-PT450EB Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C2301 ECJ2YB0J475K 4.7 6.3V C2810 ECJ1VB1H103K 0.01 50V C2302 ECJ1VB1C393K 0.039 16V C2811 ECJ1VB1C104K 0.1 16V C2303 ECJ1VB1C104K 0.1 16V C2812 ECJ1VB1C104K 0.1 16V...
  • Page 128 SA-PT450EB Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C3923 ECJ1VB0J105K 1 6.3V C5208 ECJ1VB1H104K 0.1 50V C3924 ECJ1VB0J105K 1 6.3V C5209 ECJ1VB1H104K 0.1 50V C3925 ECJ0EB1A104K 0.1 10V C5211 ECJ2VC2A221J 220P 100V...
  • Page 129 SA-PT450EB Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C5418 ECJ1VB1H104K 0.1 50V C5791 ECEA1HKA2R2B 2.2 50V C5419 ECJ3YB2A104K 0.1 100V C5794 ECJ1VC1H220J 22P 50V C5421 ECJ1VB1C224K 0.22 16V C5795 ECJ2VC1H102J 1000 50V...
  • Page 130 SA-PT450EB Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks C8014 ECJ0EF1C104Z 0.1 16V C8511 ECJ1VB0J105K 1 6.3V C8015 ECJ0EF1C104Z 0.1 16V C8512 ECJ1VB0J105K 1 6.3V C8016 ECJ0EF1C104Z 0.1 16V C8513 ECJ0EB1A104K 0.1 10V...

Table of Contents
