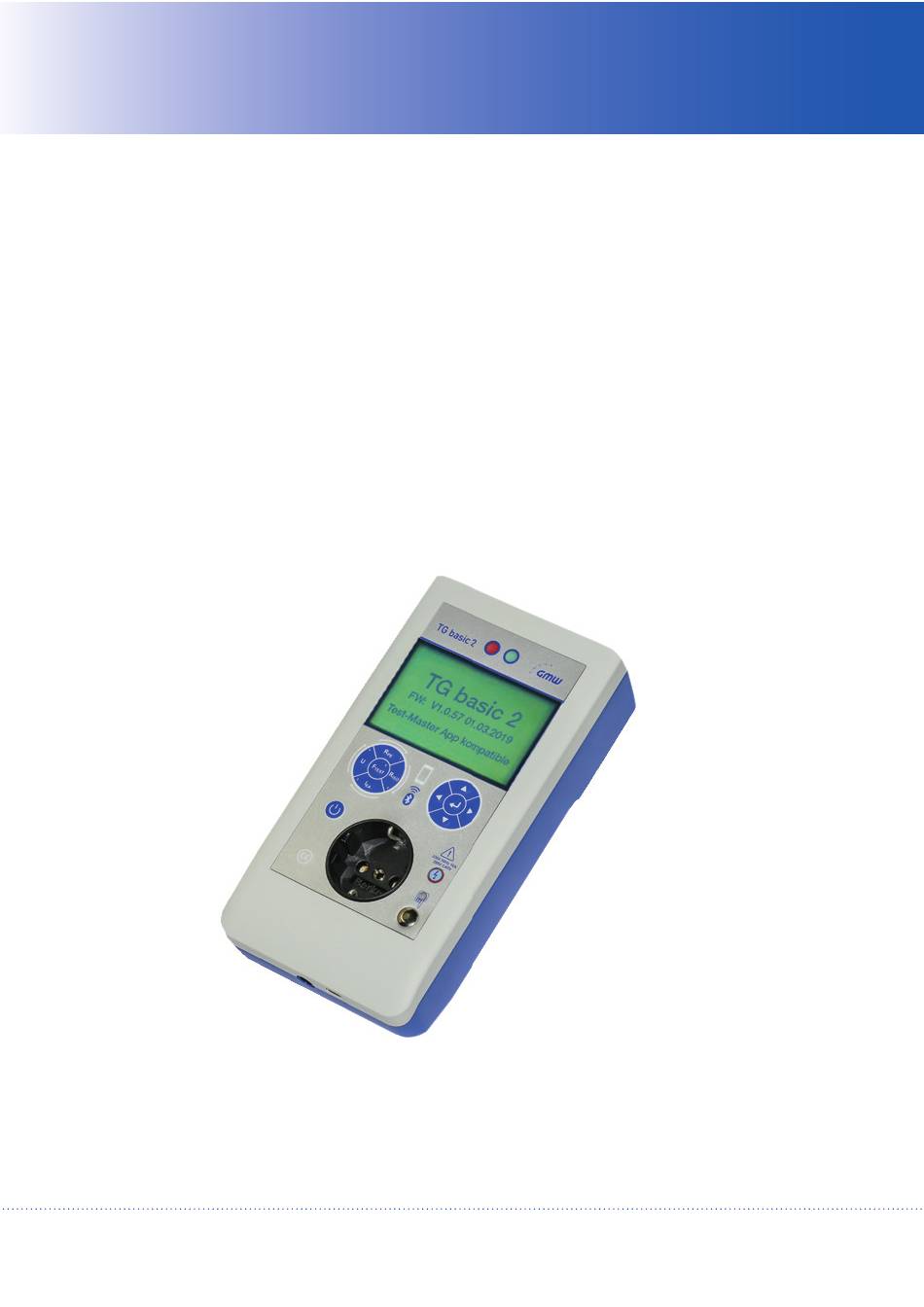

- Page 1 TG Basic 2 / TG Basic 2+ Safety Appliance Tester DIN VDE 0701/0702 ÖVE 8701 - 1 - 2 Gilgen, Müller & Weigert (GMW) GmbH & Co. KG Am Farrnbach 4A Phone: +49 (0) 9103 7129-0 90556 Cadolzburg Fax: +49 (0) 9103 7129-205/207...
- Page 2 Operation overview TG basic 2 / TG basic 2+ Three-pin IEC connector for testing of extensions and RCDs just for TG basic 2+ Mains power connection Measuring socket GND for the probe-probe Probe / test adapter measurement Display „fail“ Display „pass“...
-
Page 3: Service Information
Service information Location Gilgen, Müller & Weigert (GMW) GmbH & Co. KG Am Farrnbach 4A 90556 Cadolzburg Tel: +49 (0) 9103 7129-0 E-Mail: info@g-mw.de Product description Calibration / Service order • No measurements may be taken on unsecured measuring circuits! •... -
Page 4: Scope Of Delivery
Test lead Schuko plug socket (TG basic 2+) • Test lead Schuko 4 mm safety plug [A1] (TG basic 2) • Test lead Schuko plug socket 4 mm safety plug [A2] (TG basic 2) • 1 soft bag • Quick start guide Accessories (optional): •... - Page 5 Installation ■ Download im Google Play Store ■ Compatible with Android (from Android 5.0) First settings ■ Confirm admission ■ Setup ■ Enter the company address ■ Compensation of the RPE measurement Customer and device data ■ Start menu> Test > Customer ■...
- Page 6 Operation without app - possible types of measurement Measurement in battery operation possible Select and confirm the type of measurement Low resistance measurement ■ Test current: 200 mA ■ RPE - socket RPE - extension ■ Limit value adjustable by line length: Limit value: max.
- Page 7 Substitute leakage current ■ IEA - LN-PE ■ Test voltage: 90 V ■ Limit value: max. 3,5 mA ■ Only for devices without an electronic switching device Function test ■ ID, IB, U, I and P ■ Differential current ■ Contact current ■...
- Page 8 Party in liabillity or warranty legal terms, these instructions can not be removed.. Gilgen, Müller & Weigert (GMW) GmbH & Co. KG Gilgen, Müller & Weigert (GMW) GmbH & Co. KG Am Farrnbach 4A...
