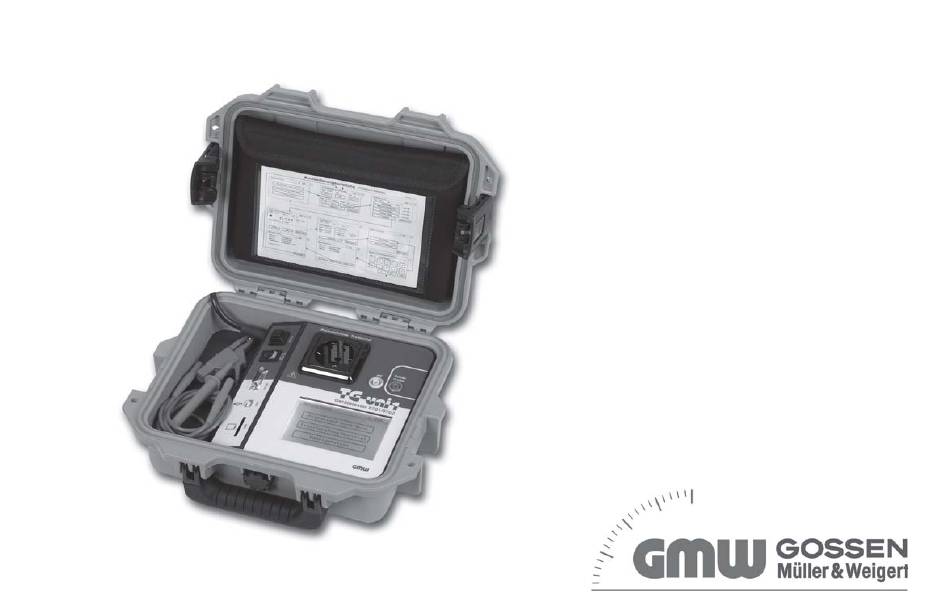

- Page 1 TG uni 1 Appliance tester for testing safety measures in accordance with DIN VDE 0701and 0702 Operating Manual Version 1.07...
-
Page 2: Table Of Contents
Operating manual for the TG uni 1 appliance tester Contents Contents Page Contents Page Safety information ............4 Conducting tests: Explanation of terminology ............14 Introduction ...............4 Touch current (I ) ..............14 Model and type designation / identification .......5 Differential current (I )............14... - Page 3 Operating manual for the TG uni 1 appliance tester Contents Contents Page Contents Page Conducting tests with the appliance tester in accordance with DIN VDE 0701 and DIN VDE 0702, PC I ......22 Technical data ..............42 10.1 Visual inspection ...............23 15.1...
-
Page 4: Safety Information
Carefully read the (commissioning / installation) of the tester the operating manual following safety information before commissioning the TG uni 1 appliance should be carefully read through and followed in all points. -
Page 5: Model And Type Designation / Identification
Operating manual for the TG uni 1 appliance tester Introduction 2.1 Model and type designation / identification 2.4 Scope of delivery A type plate and serial number sticker are situated on the inside of the 1 TG uni 1 appliance tester housing cover (behind the accessories bag).In the case of queries, always... -
Page 6: Safety Instructions
3. Safety instructions The measuring lines and the measuring accessories may only be The appliance tester TG uni 1 was constructed and tested in accordance touched in the designated handling areas. with the applicable safety regulations and left the workshop in a faultless Touching measuring connections, e.g. -
Page 7: Appropriate Usage
Operating manual for the TG uni 1 appliance tester Appropriate usage 4. Appropriate usage In order to avoid damaging the testing device, the test socket and the The tester may only be used under the conditions and for the purposes for measurement connections may not be connected to an external voltage which it has beeen designed. -
Page 8: Operating Elements
Operating manual for the TG uni 1 appliance tester Operating elements 5. Operating elements Test / mains socket for connecting the test object with earted Explanation of the tetster’s connections, operating elements and displays plug , 230 V 16 A, 50 Hz Optional connecting sockets (VDE 0751): ´L1´... -
Page 9: Commissioning
Operating manual for the TG uni 1 appliance Tester Commissioning 6. Commissioning As the tester does not have its own real-time clock, you are prompted to The tester is equipped with modern touch-screen technology. That means confirm the displayed date or enter a new date. -
Page 10: Compensation Of The Measuring Line
Operating manual for the TG uni 1 appliance tester Commissioning 6.2 Compensation of the measuring line 6.3 Setting the measurement method for protective conductor In order to achieve correct results when measuring the protective conductor current measurement (also current touch measurement) -
Page 11: Setting The Date
Operating manual for the TG uni 1 appliance Tester Commissioning 6.4 Setting the date Inserting the MMC memory card: You can set the test date on the tester. Insert the memory card, with the label facing down, into the card slot and Press the function button [Date] to change to the input screen (Fig. -
Page 12: Changing The Duration Of A Test Stage
Operating manual for the TG uni 1 appliance tester Commissioning ☞ 6.6 Changing the duration of a test stage The entered name is assigned to every test carried out and also With automatic test procedures, the preset duration of every test stage is 5 appears in the log printout. -
Page 13: Conducting Tests: General Information On
Operating manual for the TG uni 1 appliance tester General Information on DIN VDE 0701 and DIN VDE 0702 7. Conducting tests: 7.2 What? General information on DIN VDE 0701 and DIN VDE 0702 Whoever operates, services and repairs transportable devices must... -
Page 14: Conducting Tests: Explanation Of Terminology
Operating manual for the TG uni 1 appliance tester Explanation of terminology 8. Conducting tests: 8.2 Differential current (I Explanation of terminology In terms of the standards DIN VDE 0701/0702, this is the total instantaneous values of all currents flowing through all active conductors on the mains side connection of the device (test object). -
Page 15: Insulation Resistance
Operating manual for the TG uni 1 appliance tester Explanation of terminology 8.4 Insulation resistance (R 8.5 Protection class I (PC I) Ohmic resistance between the conductive parts separated by insulation. The active parts of the device are protected against direct touching by the basic insulation. -
Page 16: Protective Conductor Current
Operating manual for the TG uni 1 appliance tester Explanation of terminology 8.8 Protective conductor current (I 8.10 Visual inspection Current that flows through the protective conductor from the devices (test Testing in accordance with DIN VDE 0701 or 0702 also involves visual objects) of protection class I, when their bodies are insulated from earth. -
Page 17: Conducting Tests In Accordance With Din Vde 0701 And Din Vde 0702: Definition Of Standards
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - definition of standards 9. Conducting tests in accordance with DIN VDE 0701 and 9.3 Measuring insulation resistance DIN VDE 0702: The limit value is: Definition of standards 1 MΩ... -
Page 18: Measuring The Protective Conductor Current
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - definition of standards 9.4a Measuring the protective conductor current Caution! The test object is supplied with mains voltage (with devices of protection class I) during the test. -
Page 19: Measuring Touch Current
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - definition of standards 9.4b Measuring touch current Caution! The test object is supplied with mains voltage (with devices of protection class II) during the test. -
Page 20: Diagram
Operating manual for the TG uni 1 appliance tester Test procedure in accordance with VDE 0701 and 0702 9.8 Diagram 1 Test procedure for devices of portection class I Fig.15 Visual Inspection Test object with conductive parts that are not connected... -
Page 21: Diagram
Operating manual for the TG uni 1 appliance tester Test procedure in accordance with VDE 0701 and 0702 9.9 Diagram 2 Test procedure for devices of protection class II and III Fig.36 Visual Inspection Fig.35 Protection class II or III... -
Page 22: Conducting Tests With The Appliance Tester In Accordance With Din Vde 0701 And Din Vde 0702, Pc I
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC I 10. Conducting tests with the TG uni 1appliance tester: Settings for measuring in accordance with DIN VDE 0701 and DIN VDE 0702, PC I Press the function button [Test procedure according to standard] in the ‘Main... -
Page 23: Visual Inspection
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 -PC I The [PE -> 5.0 m] button determines the length of the test object’s The headline shows the setting for a manual [H] or automatic [A] test connecting cable. -
Page 24: Insulation Resistance
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC I 10.3 Insulation resistance (compare with Point 10.4a) The [->Next] button takes you to the first electrical test: the protective The limit value is: conductor resistance (Fig. -
Page 25: Protective Conductor Current (Substitute Leakage Current)
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 -PC I 10.4a Protective conductor current (substitute leakage current) 10.4b Protective conductor current (compare with Point 10.4a) The limit value is: The limit value is: 3.5 mA (PC I) -
Page 26: Function Test
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC I With your assent – by pressing the large button – the display changes to 10.5 Function test (only required for DIN VDE 0701) measuring the protective conductor current and the mains voltage is Press the [OK] button to go to the menu ‘Function test’... -
Page 27: Documentation
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC I 10.7 Documentation With the [Save] button the display changes to ‘Enter appliance identification’. After pressing the [OK] button, the display changes to the ‘Test result’... - Page 28 Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC I Confirm the entry with the [OK] button – the display changes (Fig. 30) and The test results can be saved on a PC with the supplied PC programme or shows the ID number, the name of the inspector and the date (see Points printed from there in the form of a test log.
-
Page 29: Conducting Tests With The Appliance Tester In Accordance With Din Vde 0701 And Din Vde 0702, Pc Ii
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC II Conducting tests with the TG uni 1 appliance tester: Settings for measuring in accordance with DIN VDE 0701 and DIN VDE 0702, PC II Press the function button [Test procedure according to standard] in the Main menu (Fig. -
Page 30: Visual Inspection
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC II The corresponding limit values are given in the limit values line. 11.1 Visual inspection With the function button [Hand/Auto] you determine whether the test The [->Next] button takes you to the first stage of the test, the visual... -
Page 31: Touch Current (Substitute Leakage Current)
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC II 11.3a Touch current (substitute leakage current) 11.3b Touch current (compare with Point 11.2) The limit value is: The limit value is: 0.5 mA... -
Page 32: Function Test
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC II The star sign on the left side of the display blinks when the 11.4 Function test (only required for DIN VDE 0701) ☞... -
Page 33: Documentation
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC II 11.6 Documentation In the ‘Memory menu’ you can use the function button [Change memory] to After pressing the [OK] button, the display changes to the ‘Test result’... - Page 34 Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC II Confirm the entry with the [OK] button – the display changes (Fig. 49) and The test results can be saved on a PC with the supplied PC programme or shows the ID number, the name of the inspector and the date (see Points printed from there in the form of a test log.
-
Page 35: Conducting Tests With The Appliance Tester In Accordance With Din Vde 0701 And Din Vde 0702, Pc Iii
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC III Conducting tests with the TG uni 1 appliance tester: in Settings for measuring accordance with DIN VDE 0701 and DIN VDE 0702, PC III Press the function button [Test procedure according to standard] in the Main menu (Fig. -
Page 36: Visual Inspection
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC III ☞ Manual test procedure means that you have to confirm every test 12.2 Insulation resistance The limit value is: stage by pressing the [OK] button to get to the next test stage. -
Page 37: Documentation
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC III 12.3 Documentation In the ‘Memory menu’ you can use the function button [Change memory] to After pressing the [OK] button, the display changes to the ‘Test result’... - Page 38 Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - PC III Confirm the entry with the [OK] button – the display changes (Fig. 60) and After the saving process, the display changes to the ‘Settings for measuring’...
-
Page 39: Conducting Tests With The Appliance Tester In Accordance With Din Vde 0702, All Protection Classes
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0702 Conducting tests with the appliance tester TG uni 1: in accordance with DIN VDE 0702, all protection classes The function test is not expressly required in the standard DIN VDE 0702. -
Page 40: Conducting Tests With The Appliance Tester In Accordance With Din Vde 0701 And Din Vde 0702 - Special Test Procedure According To Customer-Specific Settings
Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - special test procedure Conducting tests with the appliance tester TG uni 1 in accordance with DIN VDE 0701 and DIN VDE 0702 – special test procedure according to customer-specific settings ☞... - Page 41 Operating manual for the TG uni 1 appliance tester Conducting tests in accordance with VDE 0701 and 0702 - special test procedure Fig. 67 Fig. 68 Fig. 69 Fig. 70 Fig. 71 Fig. 72 The tester is now ready to start new tests Fig.
-
Page 42: Technical Data
Operating manual for the TG uni 1 appliance tester Technical data 15. Tecnical data Touch current, direct: Measuring range 0 ... 1 mA Protective conductor resistance: Display range 0 ... 1 mA Measuring range 0 ... 2 Ω Resolution 0.001 mA Display range 0 ... -
Page 43: Technical Data For Function Tests
Operating manual for the TG uni 1 appliance tester Technical data 15.1 Technical data for function tests Frequency: Measuring range 40 ... 50 ... 60 Hz Voltage: Display range 40.0 ... 50.0 ... 60.0 Hz Measuring range 190 ... 250 V Resolution 0.1 Hz... -
Page 44: Manifacturer's Guarantee Conditions
Manufacturer’s guarantee conditions The TG uni 1 appliance tester is subject to a strict quality inspection. Nevertheless, we grant a 24 month manufacturer’s guarantee in the case of malfunctions during normal daily usage. Manufacturing or material faults will be remedied, free of charge, as long as the device shows no signs of third party actions and is unopened before it is sent back to us.
