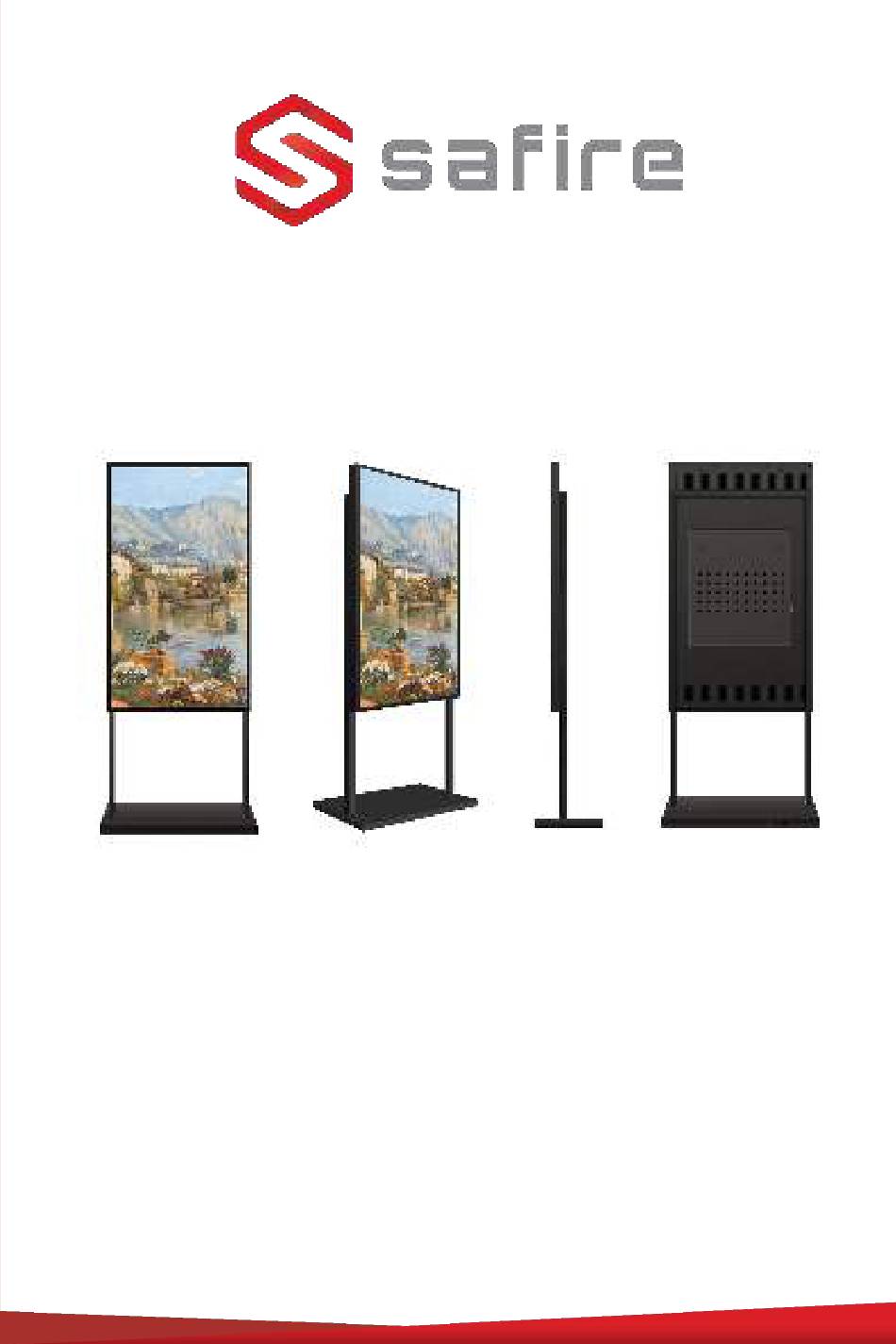

FLOOR BRACKET
Installation manual
Before installation and use, please read this manual carefully to ensure proper use.
is
recommended
manual are for reference only.
SF-32WF-FB
SF-43WF-FB
SF-49WF-FB
SF-55WF-FB
SF-65WF-FB
SF-75WF-FB
SF-86WF-FB
to
keep
this
manual for future
use. The pictures in this
It
Advertisement
Related Manuals for Safire SF-32WF-FB
Summary of Contents for Safire SF-32WF-FB
- Page 1 FLOOR BRACKET Installation manual SF-32WF-FB SF-43WF-FB SF-49WF-FB SF-55WF-FB SF-65WF-FB SF-75WF-FB SF-86WF-FB Before installation and use, please read this manual carefully to ensure proper use. recommended keep this manual for future use. The pictures in this manual are for reference only.
-
Page 2: Installation Steps
Installation Steps Step 1: Install the power cable - Insert the A part of the power cable into the bore and slide it to the end. NOTE: Part B will remain on the opposite side to be connected later to the monitor. - Page 3 Installation Steps Step 3: Install base beams Short side Long side M8 screws - Install the base beams fixing it with M8 screws. NOTE: the long side of the beams will be the rear part of the bracket and the short side the front of the bracket.
- Page 4 Installation Steps Step 4: Connect the socket, switch wire and install the front and back covers of the base. - Connect the socket and switch wires first. - Secure the front and rear covers with M3 screws.
- Page 5 Installation Steps Step 5: Install the monitor - Fix the monitor to the floor bracket with M6 screws. NOTE: The back of the monitor must be installed toward the switch side. - Conect the B part of the power cable to the monitor. - Conect the power cable to the socket of the base.
- Page 6 Dimensions SF-32WF-FB SF-43WF-FB...
- Page 7 Dimensions SF-49WF-FB SF-55WF-FB...
- Page 8 Dimensions SF-65WF-FB SF-75WF-FB...
- Page 9 Dimensions SF-86WF-FB...
