Siemens 82AD Series Instructions

SIEMENS
______________________________________________________________________
Instructions
Installation
These instructions do not purport to cover all details or variations in equipment, nor to
provide for every possible contingency to be met in connection with installation,
Maintenance
operation or maintenance, should further information be desired or should particular
problems arise which are not covered sufficiently for the purchaser's purposes, the
Replacement
matter should be referred to the local Siemens sales office.
The content of this instruction manual shall not become part of or modify any prior or
March 2017
existing agreement, commitment or relationship. The sales contract contains the entire
obligation of Siemens. The warranty contained in the contract between the parties is the
sole warranty of Siemens. Any statements contained herein do not create new
warranties or modify the existing warranty.
Hazardous Voltage.
Will cause death or serious injury.
Turn off and lock out all power supplying
this device before working on this device.
Replace all covers before power
supplying this device is turned on.

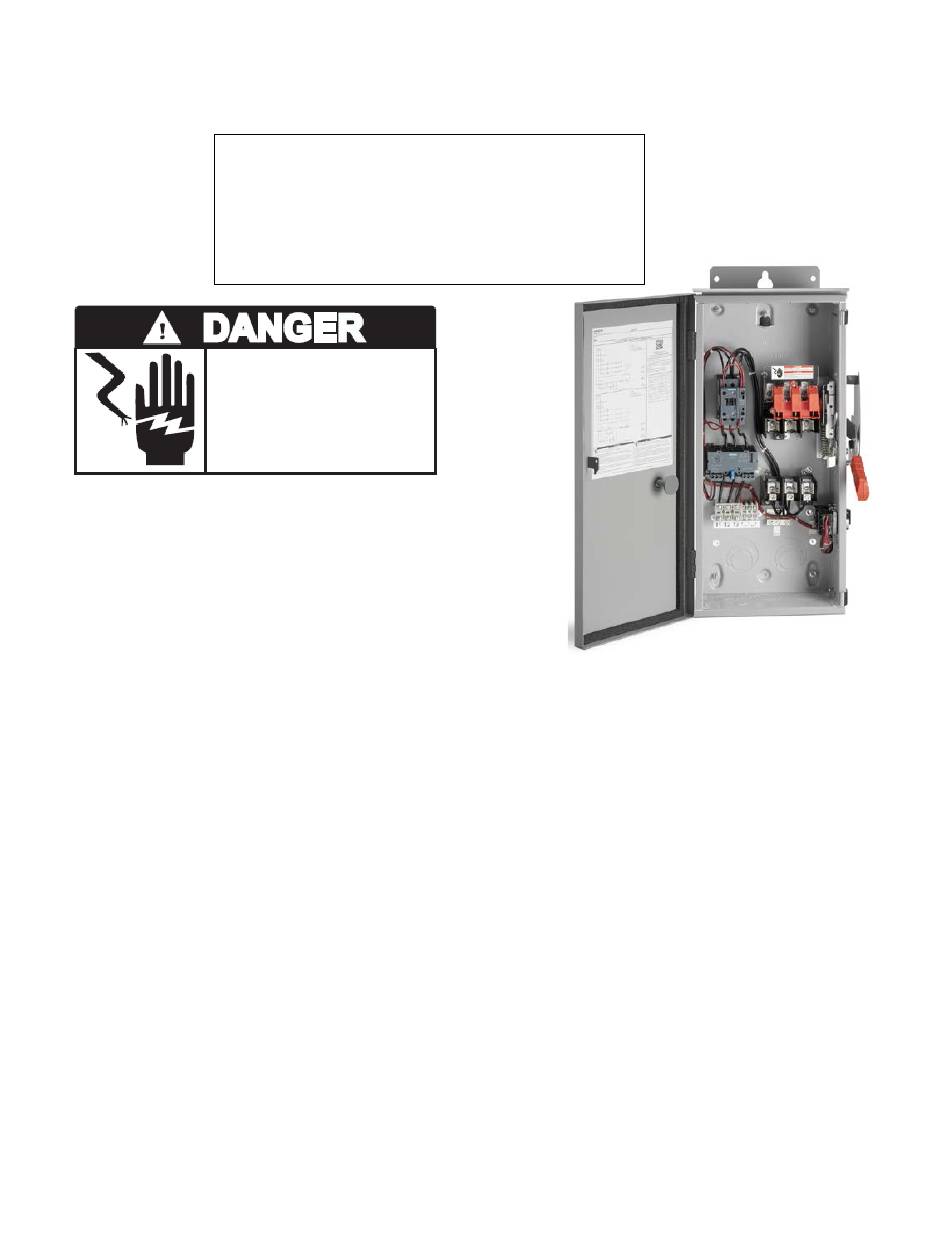

Description
Class 82 NEMA rated Slim Line pump panels
include a fusible disconnect, NEMA rated
contactor, solid-state overload relay, power and
control terminal blocks, HAND-OFF-AUTO
selector switch, START push button and
ground lug as standard. These components are
mounted in a NEMA 3/3R weather resistant
enclosure with gasketed door that can be easily
removed. The enclosure is furnished with pole
straps, watertight conduit hub cover on the top
and conduit knockouts on the bottom.
Installation
1. Verify that the supply voltage matches
the voltage rating of the pump panel.
2. Verify that the horsepower, voltage and
current rating of the motor do not
exceed the pump panel rating.
3. Examine the enclosure and each
component for shipping damage. Notify
carrier for a claim if any damage is
found. DO NOT apply power to any
damaged pump panel.
______________________________________________________________________________
Siemens Industry, Inc. 3333 Old Milton Parkway
For replacement parts information or an application guide,
visit our website at www.usa.siemens.com/controls or contact
your local Siemens sales office.
IMPORTANT
4. Operate disconnect switch with external
handle to verify operation.
5. Manually operate magnetic contactor to
verify that moving parts do not bind.
6. Toggle the selector switch and push
button (if included) to verify that moving
parts do not bind.
7. Firmly fasten enclosure to solid
mounting surface. Install in accordance
with National Electric Code and any
applicable local codes.
8. Turn off and lock out the power that will
be supplying the pump panel.
9. Install conduit and necessary grounding
means and wire pump control panel in
accordance with the wiring diagram
supplied and in accordance with the
National Electric Code and any
applicable local codes. Joint compound
or equivalent is recommended on
conduit threads to prevent water from
entering pump control panel.
Alpharetta, GA. 30005
E87010-A0067-T003-A4-82AD
Class 82 Pump Panels
A5E35327591A-003
82AD*
82AF*
82BD*
1
