Minuteman OEPD 208V Series Installation Instructions

Rack Mount Instructions - The following or similar rackmount instructions are included with the installation instructions:
a. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given
to installing the equipment in an environment compatible with the maximum ambient temperature specified by the
manufacturer.
b. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of airflow required for
safe operation of the equipment is not compromised.
c. Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not
achieved due to uneven mechanical loading.
d. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and
the effect that overloading of the circuits might have on over-current protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing this concern.
e. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should
be given to supply connections other than direct connections to the branch circuit (e.g., use of power strips).

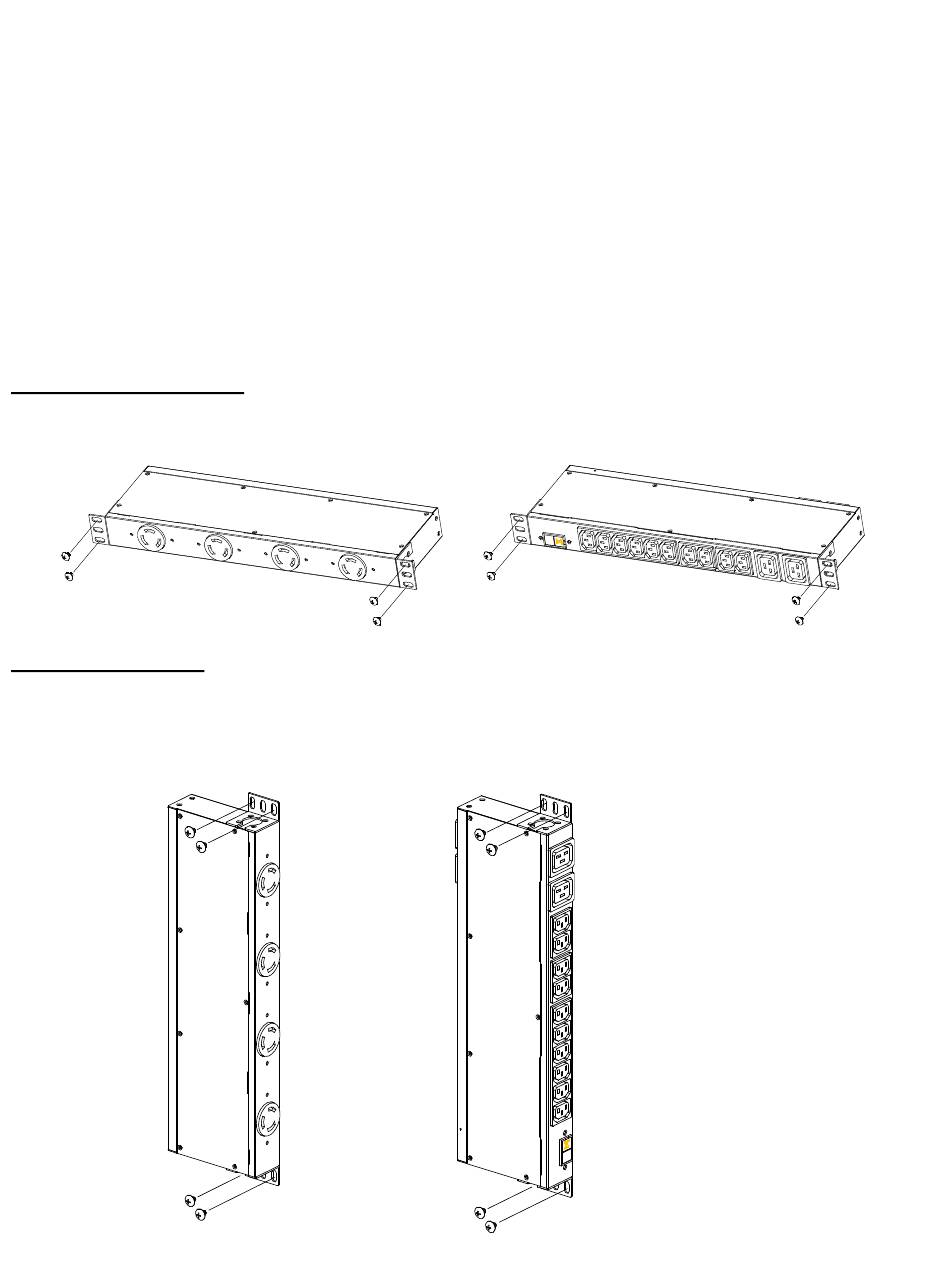

1U Horizontal Installation
1. Install the PDU into the rack and attach with the retaining screws (not provided).
2. The installation is complete. See Connecting the Equipment.
1U Vertical Mounting
1. Attach the mounting brackets on each end of the PDU with the retaining screws (provided) as shown. The
mounting brackets can be mount in either direction.
2. Attach the PDU to the side of the rack with the retaining screws (not provided).
3. The installation is complete. See Connecting the Equipment.
OEPD 208V PDU Installation Instructions
1
