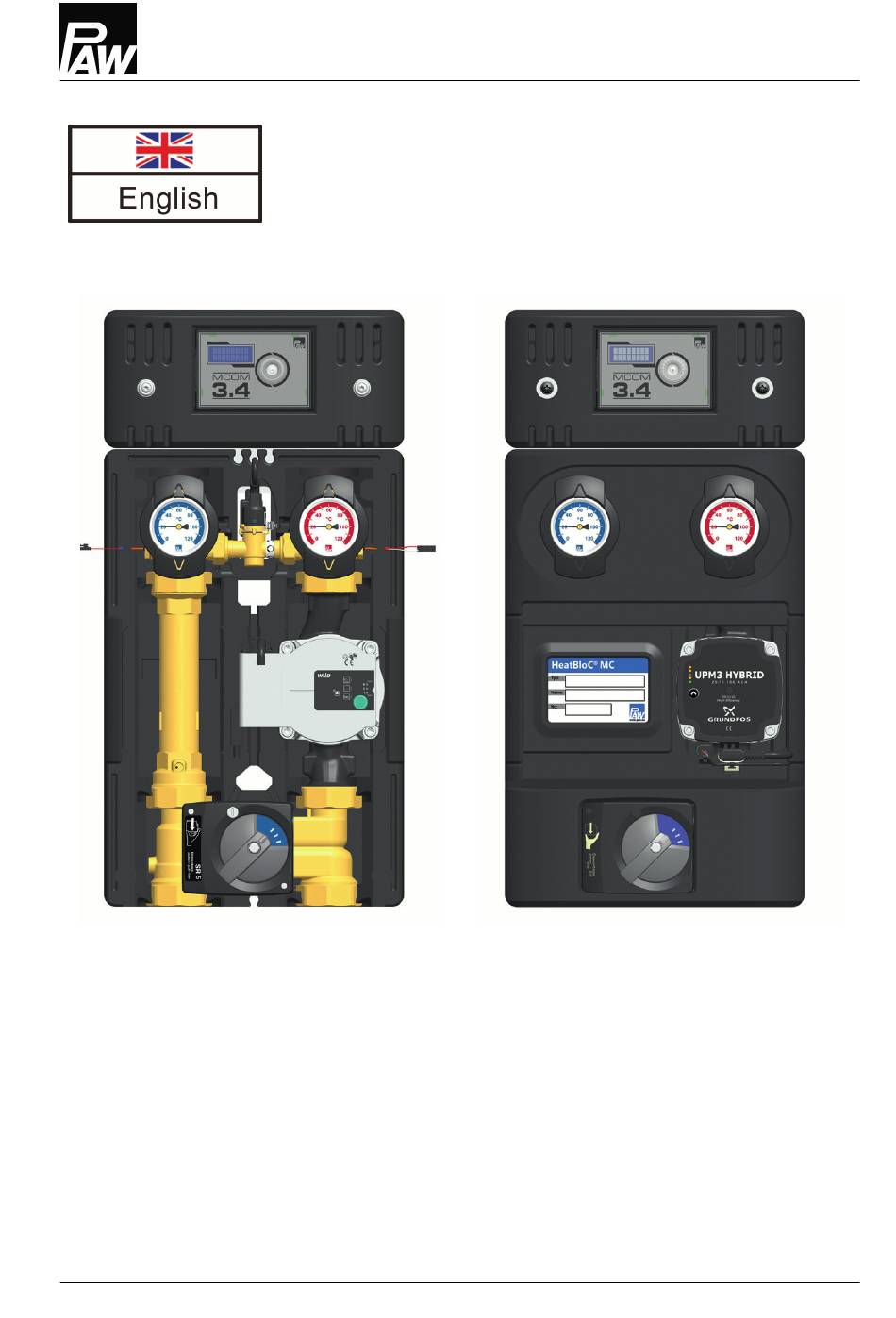

- Page 1 PAW GmbH & Co. KG Böcklerstraße 11, 31789 Hameln, Germany Phone: +49-5151-9856-0, Fax: +49-5151-9856-98 E-mail: info@paw.eu, Web: www.paw.eu Installation and Operation Instructions HeatBloC® MC42 / MC43 / MC44 DN 25 / DN 32 12/2024 99453x0x3x-mub-en V04...
-
Page 2: Table Of Contents
Table of Contents Table of Contents General Information....................4 Scope of these instructions..................4 Designated use......................4 Safety instructions......................5 Product description....................6 Equipment........................6 Function........................7 3-way mixing valve [specialist]..................8 Pump [specialist]......................10 3.4.1 Pump settings Grundfos UPM3 Hybrid..............10 3.4.2 Pump settings Wilo Para STG O / MAXO..............11 Check valve and non-return valve................12 Assembly of the actuator................... - Page 3 Insulation and controller DN 32................32 Hydraulics DN 32......................33 Technical data......................35 Dimensional drawing DN 25..................36 Dimensional drawing DN 32..................36 Pressure drop and pump characteristic curves MC42..........37 Pressure drop and pump characteristic curves MC43 / MC44.........38 Disposal........................
-
Page 4: General Information
Improper usage excludes any liability claims. This product complies with the relevant directives and is therefore labelled with the CE mark. The Declaration of Conformity is available upon request, please contact the manufacturer. Only use PAW accessories with the product. 99453x0x3x-mub-en V04 12/2024... -
Page 5: Safety Instructions
Safety instructions 2 Safety instructions The installation and commissioning as well as the connection of electrical components require technical knowledge commensurate with a recognised vocational qualification as a fitter for plumbing, heating and air conditioning technology, or a profession requiring a comparable level of knowledge [specialist]. -
Page 6: Product Description
Thus, the hydraulic balancing at the distribution manifold is assured and an energy-saving operation of the pump is guaranteed at any time. The PAW HeatBloC® must be either installed on a PAW modular distribution manifold or a PAW wall bracket. -
Page 7: Function
The mixing valve is adjusted by an external controller (HeatBloC MC42 and MC44) or an internal controller (HeatBloC MC43) in combination with the electrical actuator. *bypass for MC43 and MC44 only Application range: Installations with several HeatBloC®s and different flow temperatures (radiators and radiant... -
Page 8: 3-Way Mixing Valve [Specialist]
Product description 3.3 3-way mixing valve [specialist] The 3-way mixing valve (C), driven by an electric actuator, adjusts the flow temperature of the consumer circuit to the required value by means of the flow sensor and the controller. The mixing valve is equipped with a bypass which must be operated separately. Via this bypass, cold return water can be added to the flow. - Page 9 Product description 1. During commissioning, determine the optimum bypass position for the operation of the installation. Find out and check the correct adjustment through a trial-and-error process. If the slot of the bypass screw is in a vertical position, the bypass is closed. If the slot of the bypass screw is in a horizontal position, the bypass is completely open.
-
Page 10: Pump [Specialist]
Product description 3.4 Pump [specialist] The pump can be completely isolated. It can be replaced and maintained without draining the HeatBloC®s. 1. Close the ball valves in the flow and the return (A-2, F-2). 2. Remove the actuator from the mixing valve. 3. -
Page 11: Pump Settings Wilo Para Stg O / Maxo
Product description 3.4.2 Pump settings Wilo Para STG O / MAXO The pump settings are recognizable by glowing LEDs and must correspond to the following figure. Please observe the separate instructions of the pump! Wilo Para STG O Wilo Para MAXO 12/2024 99453x0x3x-mub-en V04... -
Page 12: Check Valve And Non-Return Valve
Product description 3.5 Check valve and non-return valve The product is equipped with a check valve and with a non-return valve. The valves can be opened. operation During operation, the markings must point to "Z". The check valve and the non-return valve are ●... -
Page 13: Assembly Of The Actuator
Product description 3.6 Assembly of the actuator For mixing valves with flow on the left, the scale must be turned by 180°. For mixing valve with flow on the right For mixing valve with flow on the left Assembly of the actuator - flow on the right: 1. -
Page 14: Change Of The Flow Line [Specialist]
Change of the flow line [specialist] 4 Change of the flow line [specialist] 1. Dismount the temperature sensors of the ball valves (A-2 and F-2). 2. Unscrew both nuts of the sensor (G). 3. Unscrew the nuts above and beneath the pump or the return pipe. - Page 15 Change of the flow line [specialist] Mount the temperature sensors T an T in the ball valves. Observe the correct attribution: Red = Flow Blue = Return Actuator . 10. Convert the actuator as described in chapter 11. Only MC42 and MC44: Please observe the instructions of the boiler control manual when changing the flow line.
- Page 16 Mixing valve with flow on the right Mixing valve with flow on the left 12. Turn the cover plate (4) in such a way that the marking PAW is at the bottom and that the scale is positioned as shown in the figure above.
-
Page 17: Mounting And Installation [Specialist]
The installation site must be dry, stable, frost-proof and protected against ultraviolet radiation in order to prevent material damage of the installation. 5.1 Installation and commissioning of the HeatBloC®s The HeatBloC® can be mounted on a PAW modular distribution manifold (not included in the scope of delivery). 12/2024... - Page 18 Mounting and installation [specialist] NOTICE Verify if the grounding cable holds securely in place at the differential pressure sensor! ► The ground lug points in the direction of the banderol. Carry out the following mounting instructions in parallel at each heating circuit of the ►...
- Page 19 Mounting and installation [specialist] Put the sealing rings on the sealing surfaces. 10. Put the HeatBloC® onto the two sealing rings. 11. Tighten the nuts. Make sure that the nuts do not get jammed and that the sealing rings do not slip. 12.
- Page 20 Mounting and installation [specialist] 16. Check the position of the check valve. During operation, the marking must be directed to "Z" Check valve ). (see chapter 17. Mount the insulating back shell. Only MC45: In case that the optional pipe set is mounted to the rear connection (C-3), make sure that the plastic cap is correctly positioned.
-
Page 21: Cabling
Mounting and installation [specialist] 5.2 Cabling 1. For DN 25 / 32: Loosen the screws of the controller insulation and dismount the insulating front shell of the controller. For DN 40 / 50: Connect the actuator (only MC43), the temperature sensors (only MC41) and the differential pressure sensor to the controller (see below). - Page 22 Mounting and installation [specialist] 6. If you do not mount the optional communication set, continue with point 10. 7. If you additionally mount the optional communication set, run the bus line of the communication set to the first (left) controller. For this purpose, disconnect the plug of the bus line from the mini PC of the communication set.
-
Page 23: Accessories
PC is equipped with a power supply unit to assure the power supply and establishes its own local WLAN network. With a smartphone and the corresponding PAW Connect app, you can establish a connection with your installation via this WLAN and set parameters or read out current values. -
Page 24: Accessories: Cutting-Ring Compression Fitting (Not Included In The Scope Of Delivery)
Mounting and installation [specialist] 5.3.4 Accessories: Cutting-ring compression fitting (not included in the scope of delivery) The connection to the heating installation can be carried out fast, pressure-proof and without soldering if you use the optionally available compression fittings. 1. Push the union nut ② and the cutting ring ③ onto the copper pipe ①. -
Page 25: Maintenance [Specialist]
Maintenance [specialist] 6 Maintenance [specialist] 6.1 Disassembly of the strainer out of the differential pressure sensor (DPS) NOTICE A maintenance of the differential pressure sensor may be necessary in different time intervals. The duration of the time interval depends on the quality of the heating water. A maintenance is necessary no later when the measurements of the differential pressure sensor vary strongly and a stable regulation of the pump is no longer possible. - Page 26 Maintenance [specialist] 5. Dismount the differential pressure sensor by removing the flat plug from the clip. The flat plug is equipped with a clamp spring. Press the clamp spring in before removing the flat plug. 6. Finally remove the clip laterally out of the fitting. 7.
-
Page 27: Installation Of The Strainer Of The Differential Pressure Sensor (Dps)
Maintenance [specialist] 6.2 Installation of the strainer of the differential pressure sensor (DPS) The installation is caried out in reverse order: 1. Put the new sealing cap on the sensor. The two bulges (see circle) must point towards the pump side. 2. - Page 28 Maintenance [specialist] 5. Put the brass fitting with the new sealings between the ball valves F-2 and A-2. Attention: The sticker with the pump symbol must point to the pressure side, see illustration. 6. Put the installation into operation again: - Open the previously closed ball valves and check the tightness of the measuring point of the differential pressure sensor.
-
Page 29: Scope Of Delivery [Specialist]
Scope of delivery [specialist] 7 Scope of delivery [specialist] NOTICE Serial number Complaints and requests/orders of spare parts will only be processed with information on the serial number! The serial number is placed on the return pipe of the product. 7.1 Insulation and controller DN 25 12/2024 99453x0x3x-mub-en V04... -
Page 30: Hydraulics Dn 25
Scope of delivery [specialist] 7.2 Hydraulics DN 25 Position Spare part Item number MC42 MC43 MC44 Controller MCom 3.4 N00143 Thermometer handle for ball valve 1" + 1¼" N00248 Dial thermometer, red, d = 50 mm, 0 - 120 °C N00242 Dial thermometer, blue, d = 50 mm, 0 - 120 °C N00243... - Page 31 Scope of delivery [specialist] Position Spare part Item number MC42 MC43 MC44 Thermometer ball valve DN 25, flange 1" x 1" N00244 int. thread Union nut G1½", wrench size 52, octagonal N00269 Sealing kit, 44.0 x 32.0 x 2.0, 1", for thread connection N00131 1½", 10 pieces 3-way mixing valve DN 25, flange F1"...
-
Page 32: Insulation And Controller Dn 32
Scope of delivery [specialist] 7.3 Insulation and controller DN 32 99453x0x3x-mub-en V04 12/2024... -
Page 33: Hydraulics Dn 32
Scope of delivery [specialist] 7.4 Hydraulics DN 32 Position Spare part Item number MC42 MC43 MC44 Controller MCom 3.4 N00143 Thermometer handle for ball valve 1" + 1¼" N00248 Dial thermometer, red, d = 50 mm, 0 - 120 °C N00242 Dial thermometer, blue, d = 50 mm, 0 - 120 °C N00243... - Page 34 Scope of delivery [specialist] Position Spare part Item number MC42 MC43 MC44 Thermometer ball valve DN 32, flange 1¼" x 1¼" N00245 int. thread Union nut G 2" 2156 Sealing kit, 55.0 x 42.0 x 2.0, 1¼", N00133 for thread connection 2", 10 pieces 3-way mixing valve DN 32, flange F1¼"...
-
Page 35: Technical Data
Technical data 8 Technical data HeatBloC MC42 / MC43 / MC44 DN 25 (1") DN 32 (1¼") Dimensions Centre distance 125 mm 125 mm Width insulation 250 mm 250 mm Height insulation 500 mm 557 mm Installation length 340 mm... -
Page 36: Dimensional Drawing Dn 25
Technical data 8.1 Dimensional drawing DN 25 8.2 Dimensional drawing DN 32 99453x0x3x-mub-en V04 12/2024... -
Page 37: Pressure Drop And Pump Characteristic Curves Mc42
Technical data 8.3 Pressure drop and pump characteristic curves MC42 DN 25: DN 32: 12/2024 99453x0x3x-mub-en V04... -
Page 38: Pressure Drop And Pump Characteristic Curves Mc43 / Mc44
Technical data 8.4 Pressure drop and pump characteristic curves MC43 / MC44 DN 25: DN 32: 99453x0x3x-mub-en V04 12/2024... -
Page 39: Disposal
Disposal 9 Disposal NOTICE Electrical and electronic devices must not be disposed of in the household waste. For your return, there are free collection points for electrical appliances and, if necessary, additional points of acceptance for the reuse of the devices in your area. The addresses can be obtained from your city or communal administration. - Page 40 Item no. 99453x0x3x-mub-en Böcklerstraße 11 31789 Hameln, Germany Translation of the original instructions www.paw.eu We reserve the right to make technical changes without notice! Phone: +49-5151-9856-0 Printed in Germany – Copyright by PAW GmbH & Co. KG Fax: +49-5151-9856-98 12/2024 99453x0x3x-mub-en V04...
