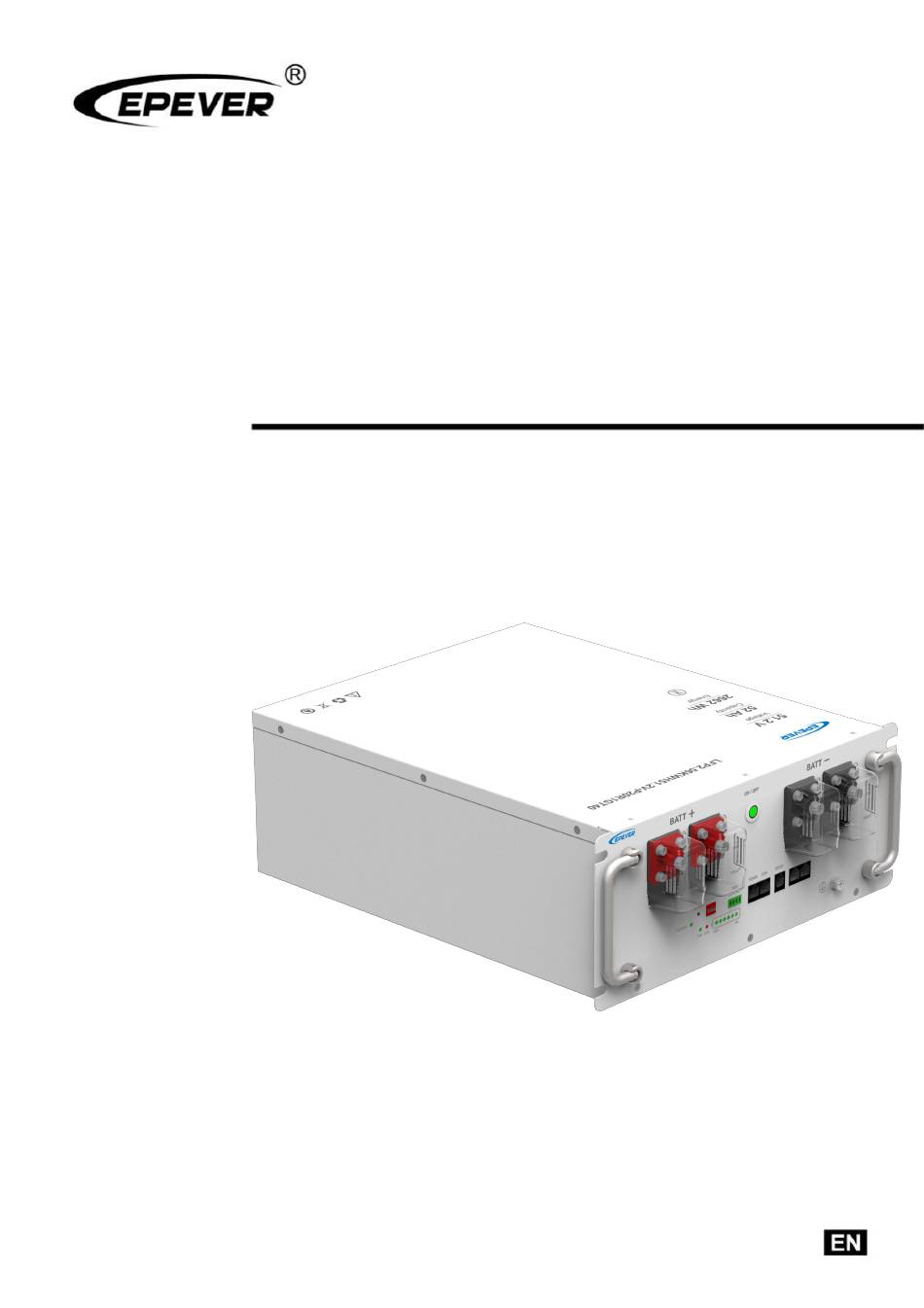

- Page 1 LiFePO4 (LFP) Battery User Manual LFP2.56KWH51.2V-P20R1GT40...
-
Page 2: Table Of Contents
Contents 1 Important Safety Instructions ............1 2 General Information ................ 3 2.1 Appearance ........................3 2.2 Interface definition ......................4 2.3 Features ..........................5 2.4 LED Indicators ........................6 2.5 Set the DIP Switch ......................9 2.6 Packing list ........................10 3 Operation Instruction ..............11 3.1 Charging Operation ...................... -
Page 3: Important Safety Instructions
1 Important Safety Instructions ※ Thanks for selecting the EPEVER LiFePO4 battery; please read this manual carefully before using the product. ※ Do not use the product in humid, salt spray, corrosion, greasy, flammable, explosive, dust accumulative, or other severe environments. - Page 4 Emergency treatments a) Avoid skin and eye contact with the electrolyte when it leaks. In case of contact, immediately wash with plenty of water and seek help from a doctor. It is forbidden for any person or animal to swallow any part of the battery or the substances contained in the battery.
-
Page 5: General Information
2 General Information 2.1 Appearance Front Side Side Vertical Instruction Instruction Metal handle PC upper computer communication interface Positive connector Inverter communication interface Weak-current switch Battery SOC indicator Negative connector Malfunction indicator Grounding screw interface Running indicator DIP switch Power switch indicator Dry contact Reset button Parallel communication interface... -
Page 6: Interface Definition
2.2 Interface definition (1) The RS232 communication interface pin are defined as follows, and the RJ11 communication interface is used to connect the upper computer of the lithium battery PC. RJ11 Pin RJ11 Definition 1、2、6 ( RJ11) (2) The pins of the CAN/RS485 communication interface are defined as follows, and the RJ45 communication interface is used for the communication connection between the lithium battery and the inverter host. -
Page 7: Features
(4) The BMS communication interface pins are defined as follows, and the RJ45 communication interface is used for the communication connection between lithium battery and lithium battery parallel machine. Pin No. RJ45 Definition RS485-B RS485-A UP-IN RS485-A (RJ45 ) RS485-B 2.3 Features ... -
Page 8: Led Indicators
2.4 LED Indicators Battery Work Indicators instructions ① Battery SOC LED POWER Normal/Alarm/Pro Status Instruction tection ● ● ● ● ● ● ● ● ● ② Sleep Power off All indicators go OFF Flash 1 Normal Standby Status Standby Display by the actual battery capacity. - Page 9 ① Battery SOC LED POWER Normal/Alarm/Pro Status Instruction tection ● ● ● ● ● ● ● ● ● Flash 3 Normal Display by the actual battery capacity. Flash 3 Flash 3 Alarms Under-voltage The battery stops discharging. protection Dischargi Temperature,...
- Page 10 ① The battery SOC indicators L1~L6 correspond to the battery SOC 0%~100%, as shown in the diagram below: ② Exit sleep mode: When the BMS is in sleep mode, press and hold the power switch (ON/OFF button) for about 2 seconds to activate the battery. Enter sleep mode：...
-
Page 11: Set The Dip Switch
84%~100% ● Run indicator Flash 3 [Flash 1] means the indicator lights up for 0.25 seconds and then turn off for 3.75 seconds. [Flash 2] means the indicator lights up for 0.5 seconds and then turn off for 0.5 seconds. [Flash 3] means the indicator lights up for 0.5 seconds and then turn off for 1.5 seconds. -
Page 12: Packing List
2.6 Packing list Before unpacking, please check the outside of the battery for damage to the packaging and check the model of the battery. If there is any abnormality, please do not open the package and contact the after-sales service center as soon as possible. After unpacking the battery, please check whether the product is complete according to the packaging information. -
Page 13: Operation Instruction
3 Operation Instruction 3.1 Charging Operation General Checking. Check thoroughly including all the cables for showing no damages. Make sure the mains supply complies with the specification of the charger and the battery. 2. Turn off the charger and connect it to the battery. WARNING: Check the battery polarity before connecting to the charger. - Page 14 During the winter when temperatures are low (<0 ℃ ), the battery should be charged as soon as possible after discharge to avoid prolonged charging time due to low battery temperature. WARNING: This lithium battery can only be used with EPEVER devices or the compatible devices. It is forbidden to use the lithium battery without communicate.
-
Page 15: Battery Connection In Parallel
3.3 Battery Connection in Parallel Positive output power cable Negative output power cable RS485 communication cable Lithium battery positive parallel power cable Lithium battery negative parallel power cable Lithium battery parallel communication cable (BMS~BMS) (250mm) - Page 16 Positive output power cable Negative output power cable RS485 communication cable Warning 1. For operational safety and compliance, please disconnect the communication and cable link with the inverter when storing the battery. 2. During the handling and installation of the battery, it is recommended to wear safety helmets, goggles, protective shoes and other safety equipment suitable for the work to prevent accidental injury;...
-
Page 17: Protections
4 Protections 1. Cell/Overall Over-charge Protection When the actual voltage of any cell/overall is higher than the over-charge protection voltage, and the duration reaches the over-charge delay, the battery enters the over-charge protection state. The charging MOS and charging current limiting module are turned off, and the battery cannot be charged. Protection Recovery: When the actual voltage of any cell/overall drops below the overcharge recovery voltage, the over-charge protection state is released. - Page 18 Protection Recovery: The cell temperature drops to the high temperature recovery value. 6. Charge/Discharge Low Temperature Protection During the charging and discharging process, when the NTC detects that the cell temperature is lower than the low temperature protection value, the charging or discharging MOSFET is turned off. In this state, the battery cannot be charged or discharged.
-
Page 19: Specifications
5 Specifications Model LFP2.56KWH51.2V-P20R1GT40 Battery Type LiFePO (LFP) 51.2V Nominal Voltage 52Ah Nominal Capacity 2662Wh Energy Continuous Discharge Current 57.6V Charge Cut-off Voltage 41.6V Discharge Cut-off Voltage Maximum Charge Current 50A@30min Maximum Discharge Current 60A @10s Peak Discharge Current Recommend Discharge Current 50.88~53.6V... -
Page 20: Dimensions
6 Dimensions... -
Page 21: Disclaimers
7 Disclaimers The warranty does not apply to the following conditions: Damage caused by improper use or inappropriate environments (It is strictly forbidden to install the Energy Storage System in the humid, salt spray, corrosive, greasy, flammable, explosive, dust accumulative or other harsh environments). - Page 22 HUIZHOU EPEVER TECHNOLOGY CO., LTD. Tel: +86-752-3889706 E-mail: info@epever.com Website: www.epever.com...
