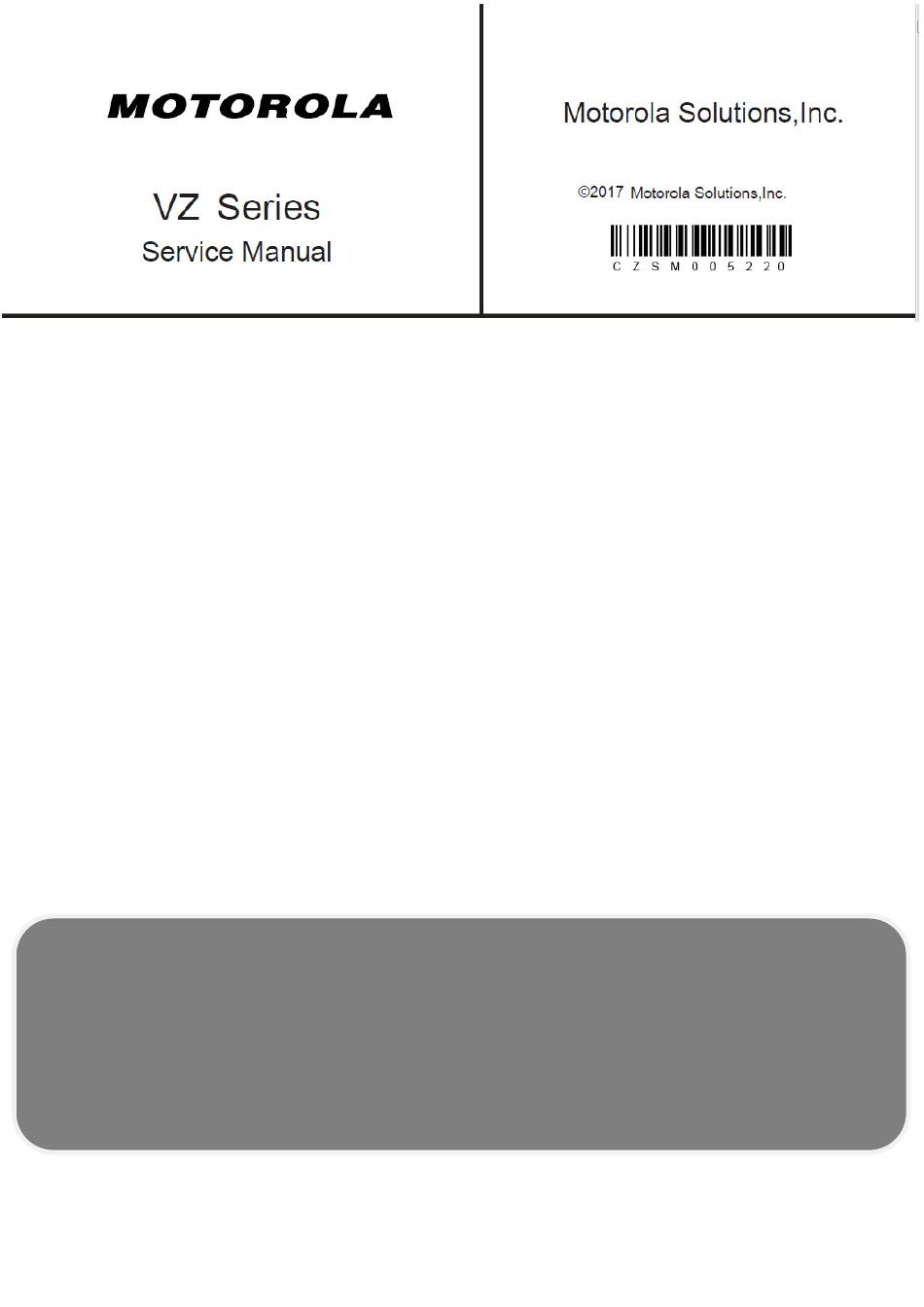

Motorola VZ Series Service Manual

Introduction
This manual provides technical information necessary for servicing the VZ series FM Transceiver.
Servicing this equipment requires expertise in handling surface-mount chip components. Attempts by non-qualified persons
to service this equipment may result in permanent damage not covered by the warranty, and may be illegal in some countries.
One PCB layout diagrams are provided for each double-sided circuit board in the transceiver. Each side of is referred to by
the type of the majority of components installed on that side ("leaded" or "chip-only"). In most cases one side has chip
components, and the other has either a mixture of both chip and leaded components (varister, coils, electrolytic capacitors,
ICs, etc.), or leaded components only.
While we believe the technical information in this
may occur as a result of typographical or other errors
in the technical information would be appreciated.
This transceiver was assembled using Pb (lead) free solder, based on the RoHS specification.
Only lead-free solder (Alloy Composition: Sn-3.0 Ag-0.5 Cu) should be used for repairs performed on this apparatus. The solder
stated above utilizes the alloy composition required for compliance with the lead-free specification, and any solder with the
above alloy composition may be used.
manual to be correct, Motorola Solutions assumes no liability
that may be present. Your cooperation in pointing out any inconsistencies
Important Note
for damage that
