G R E A S E B O S S G 1 5 & G 2 5 I N S T A L L A T I O N I N S T R U C T I O N S
First Things First
1.
Unpack the Grease Boss and read all the documentation.
2.
Ensure the Grease Boss has a current electrical test tag.
3.
Ensure the power supply can be easily located and the Grease Boss can be easily disconnected or
isolated from the power supply.
4.
Do not connect power until the Grease Boss is fully installed and all plumbing connections have been
checked.
Connections
The Grease Boss has four plumbed connections:
1.
A waste pump-out connection with a supplied flexible hose.
2.
A hot water inlet of ¾ pipe fitting (standard laundry fitting).
3.
An outlet socket of 50mm diameter stainless tube located at the rear of the Grease Boss. The outlet
MUST be plumbed with 50mm.
4.
An inlet socket of 50mm diameter stainless tube located at the rear of the Grease Boss.
The Grease Boss is supplied with two 90-degree flexible couplings for connection to the inlet and outlet
sockets.
www.mactrap.co.nz
INLET
OUTLET
HOT WATER IN
WASTE PUMP OUT

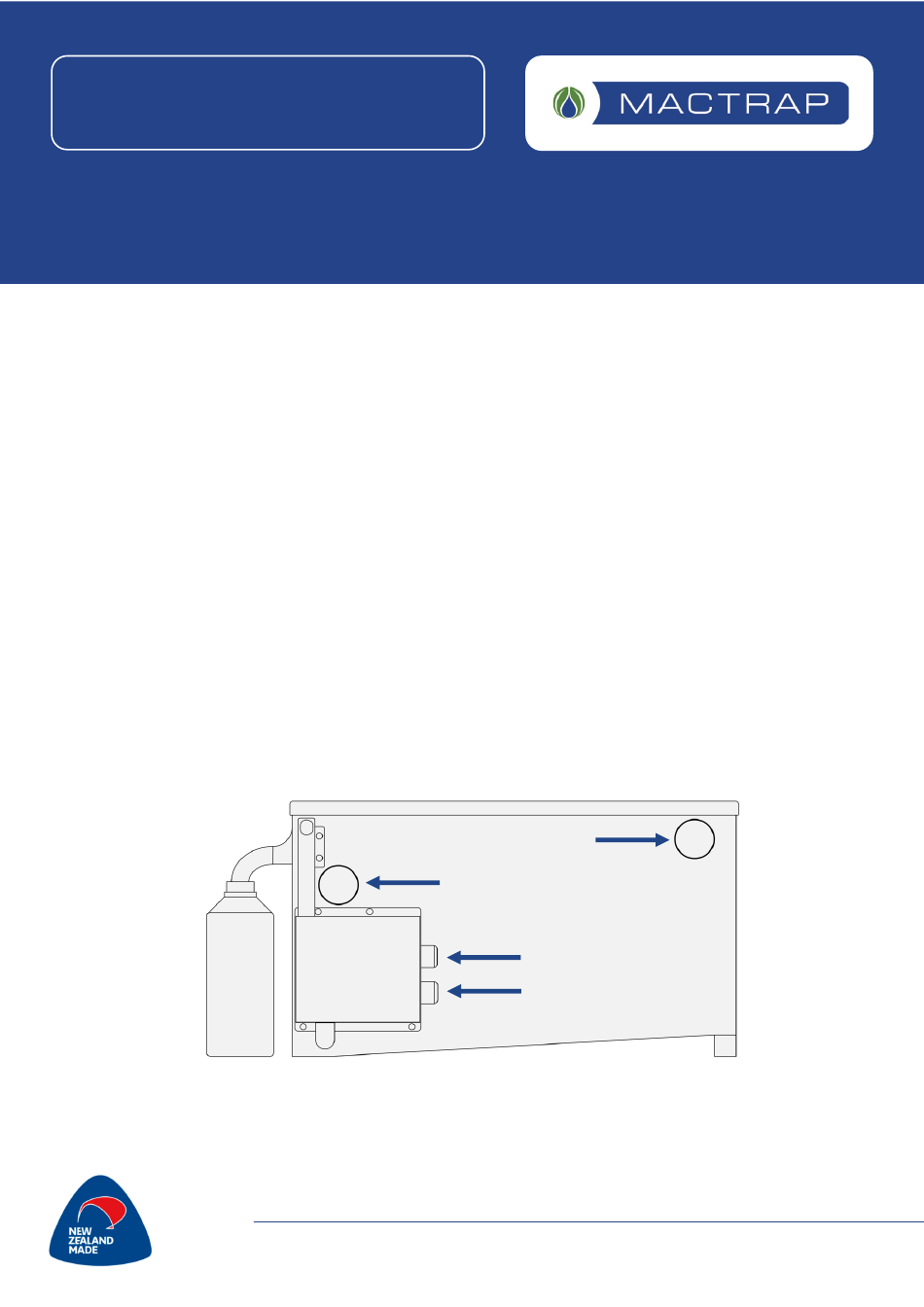

Grease Boss Rear View
