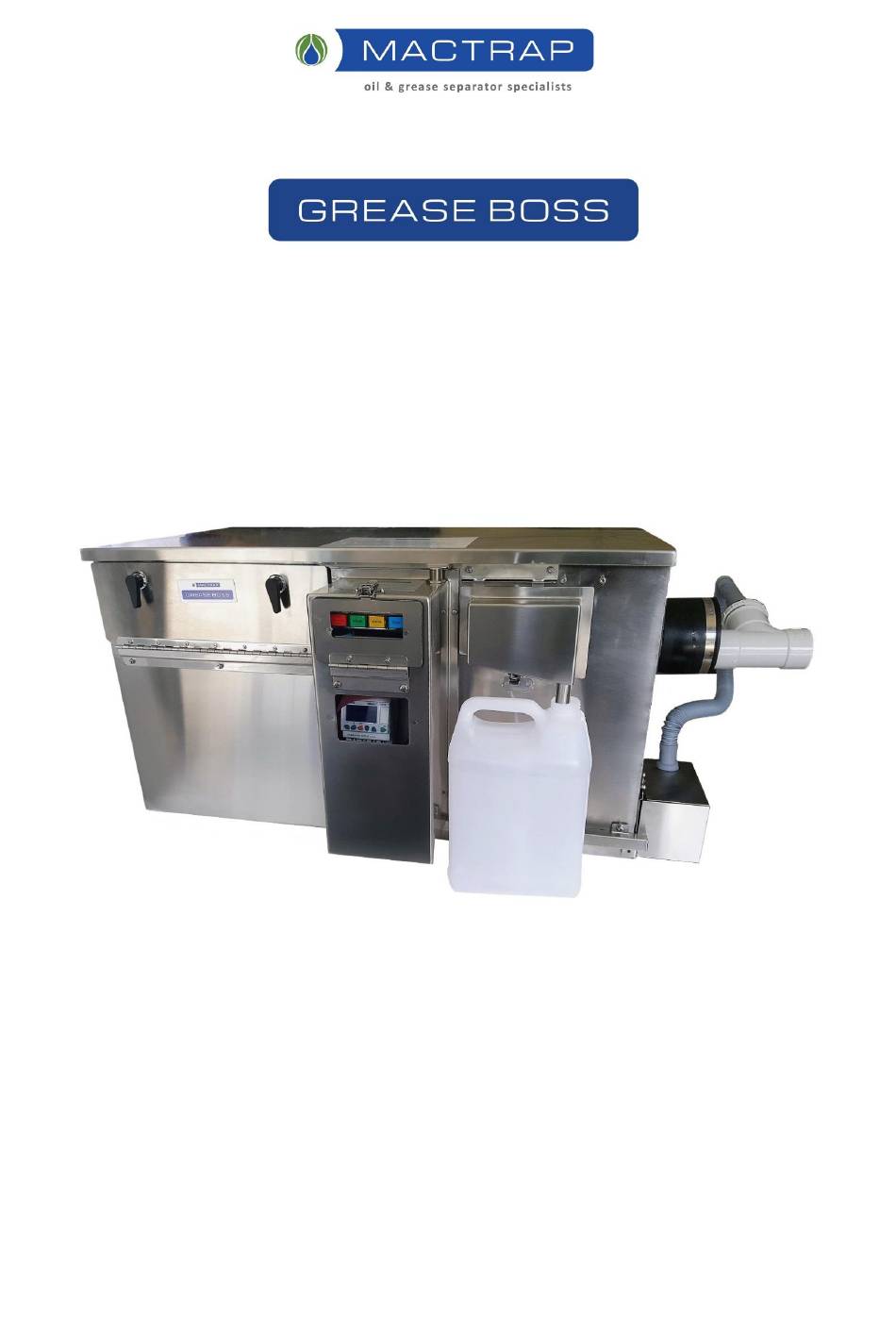

The picture above shows the MACTRAP Grease Boss with optional pump out unit at outlet end
Units are right or left hand inlet flow to suit customer location. The above example is left to right flow
Supplied and serviced By:
For more information contact
Manufactured by MACTRAP Katikati New Zealand
Mactrap Grease Boss Operational Manual v Feb 2017
OPERATIONAL MANUAL
MACTRAP Grease Boss G25 Model -216
Automatic Grease Removal Unit (GRU)
MACTRAP
MACTRAP
Phone: +64 7 549 0414 / Mobile: +64 274 978 791
Email: info@mactrap.co.nz
www.mactrap.co.nz
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MACTRAP Grease Boss G25 216
Summary of Contents for MACTRAP Grease Boss G25 216
- Page 1 Automatic Grease Removal Unit (GRU) The picture above shows the MACTRAP Grease Boss with optional pump out unit at outlet end Units are right or left hand inlet flow to suit customer location. The above example is left to right flow...
-
Page 2: How It Works
(see weir instruction page 5) Treatment capacity =<500l passive capacity Motor 230V 5RPM Timer/Controller & Magnetic isolation switch Heating element Standard Smiths 2kW SIN 2 230v, 50Hz, Crouzet PLC 24-Hour Operation Maximum operating temperature 65C Mactrap Grease Boss Operational Manual v Feb 2017... -
Page 3: Correct Installation
Check correct invert and weir levels herein shown. Note: Before switching on for the first time, lightly coat roller blades with vegetable oil (not petroleum based oil) to prevent sticking to roller. Mactrap Grease Boss Operational Manual v Feb 2017... -
Page 4: Daily Maintenance
To assist and limit problems of internal solids build up, practice wiping as much dairy waste to rubbish prior to pre wash rinsing. • As well as the MACTRAP filter we recommend permanent sink solids filters be used as well. Mactrap Grease Boss Operational Manual v Feb 2017... - Page 5 Factors affecting the efficiency of the MACTRAP Grease Removal Units Caution: The passing of dishwasher waste and self-cleaning oven waste through the MACTRAP Grease Boss may affect the efficiency of the oleophyllic attraction of fats and oils in the Grease Boss. High use of certain emulsified oils and homogenised dairy milks may also affect efficiency.
-
Page 6: Getting Started
A 12 month warranty applies to parts and materials for this MACTRAP GRU. This warranty does not include any labour, cleaning out or maintenance. If the MACTRAP GRU is not installed and operated as per these operation guidelines, the warranty will be void. -
Page 7: Troubleshooting
If not a qualified engineer/electrician should check that the thermostat is set at 55 °C. Maximum with shut down at 85°C. If water influent is to hot >65C collection efficiency will be affected. Mactrap Grease Boss Operational Manual v Feb 2017... - Page 8 If this occurs, turn off the unit immediately and consult the plumber or the distributor for more advice. Check the water level Do not run dry or empty without refilling with water Mactrap Grease Boss Operational Manual v Feb 2017...
- Page 9 To avoid blockages and odour in the MACTRAP Grease Removal Unit and filter basket - follow these daily maintenance steps. Turn off power before removing and reinstalling wiper unit or roller For more information see our maintenance video on www.mactrap.co.nz...
