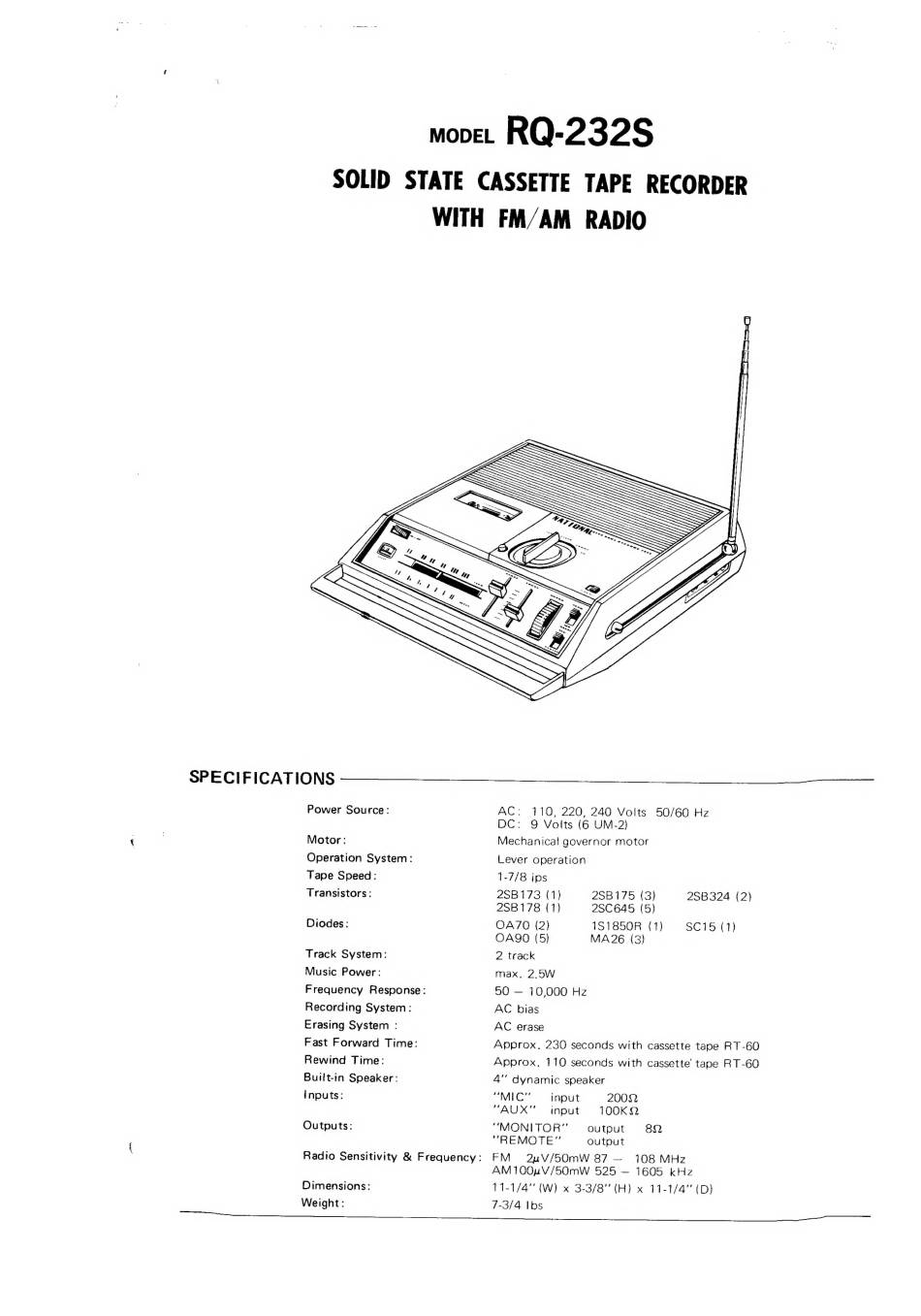

Panasonic RQ-232S Instruction Manual

SPECIFICATIONS
Power Source:
Motor:
Operation System:
Tape Speed:
Transistors :
Diodes:
Track System:
Music Power:
Frequency Response:
Recording System:
Erasing System :
Fast Forward Time:
Rewind Time:
Butit-in Speaker:
Inputs:
Outputs:
Radio Sensitivity & Frequency:
Dimensions:
AC: 110, 220, 240 Volts 50/60 Hz
DC: 9 Volts (6 UM-2)}
Mechanical governor motor
Lever operation
1-7/8 ips
2 track
max. 2.5W
50 — 10,000 Hz
AC bias
AC erase
Approx. 230 seconds with cassette tape RT-60
Approx, 110 seconds with cassette' tape RT-60
4" dynamic speaker
"MIC" — input 20022
"AUX" input 100K2
"MONITOR" ~— output B82
"REMOTE" output
FM 2uV/50mW 87 — 108 MHz
AM 100uV/50mW 525 — 1605 kHz
Weight: 7-3/4 Ibs
