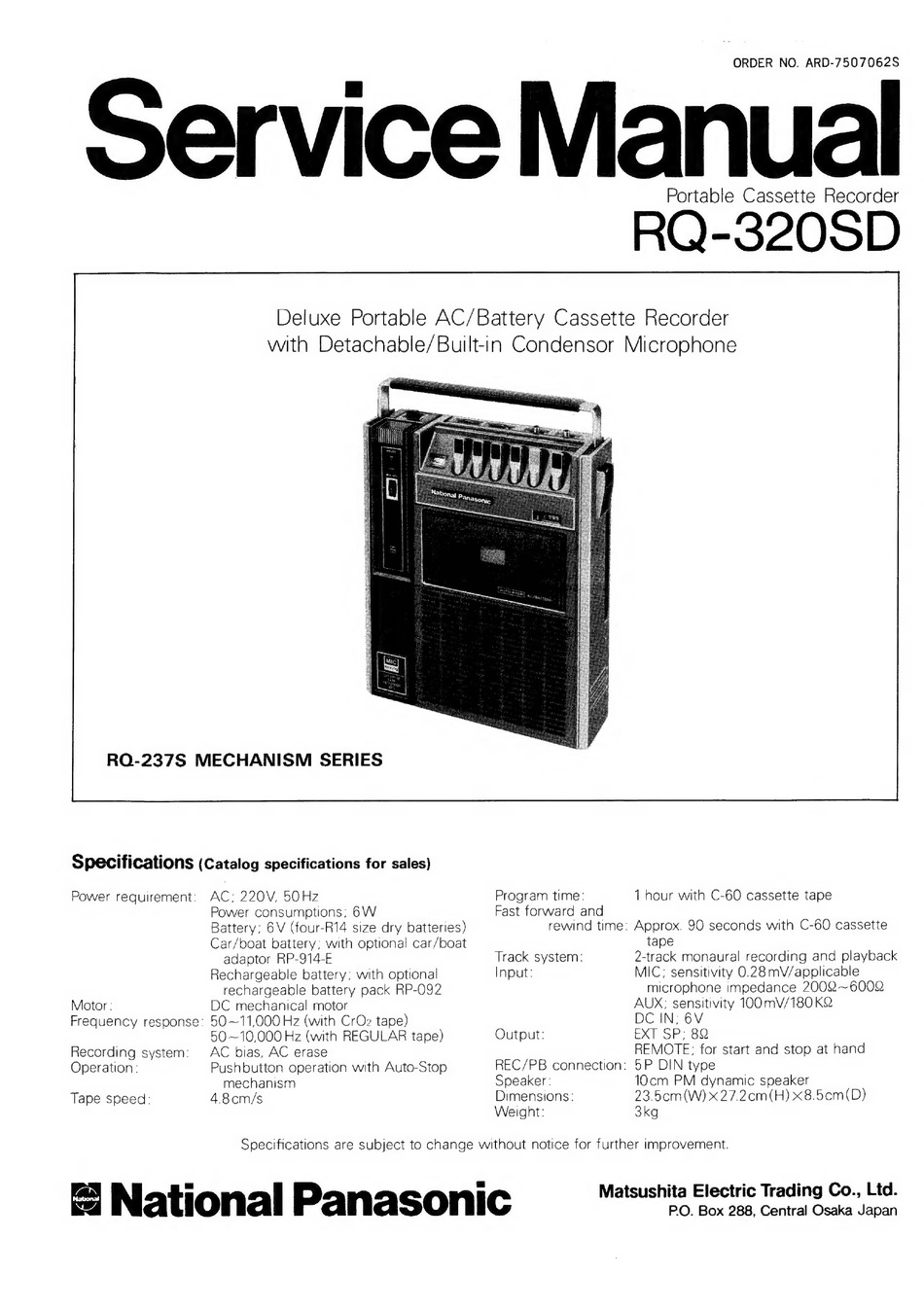

ORDER NO. ARD-7507062S
Portable Cassette Recorder
RQ-320SD
Deluxe Portable AC/Battery Cassette Recorder
with Detachable/Built-in Condensor Microphone
a
RQ-237S
MECHANISM
SERIES
Specifications (Catalog specifications for sales)
Power requirement:
Motor :
Frequency response:
Recording system:
Operation:
Tape speed:
National Panasonic
AC; 220V, 50Hz
Power consumptions; 6W
Battery; 6V (four-R14 size dry batteries)
Car/boat battery; with optional car/boat
adaptor RP-914-E
Rechargeable battery; with optional
rechargeable battery pack RP-092
DC mechanical motor
50~11,000 Hz (with CrOz tape)
50~10,000 Hz (with REGULAR tape)
AC bias, AC erase
Pushbutton operation with Auto-Stop
mechanism
4.8cm/s
I
oo:
oe
Program time:
Fast forward and
rewind time:
Track system:
Input:
Output:
REC/PB connection:
Speaker:
Dimensions:
Weight:
1 hour with C-60 cassette tape
Approx. 90 seconds with C-60 cassette
tape
2-track monaural recording and playback
MIC; sensitivity 0.28 mV/applicable
microphone impedance 2002~6002
AUX; sensitivity 100 mV/180 K2
DC IN; 6V
EXT SP; 8Q
REMOTE; for start and stop at hand
5P DIN type
10cm PM dynamic speaker
23.5em(W) X27.2cm(H) X8.5cm(D)
3kg
Specifications are subject to change without notice for further improvement.
Matsushita Electric Trading Co., Ltd.
P.O. Box 288, Central Osaka Japan
