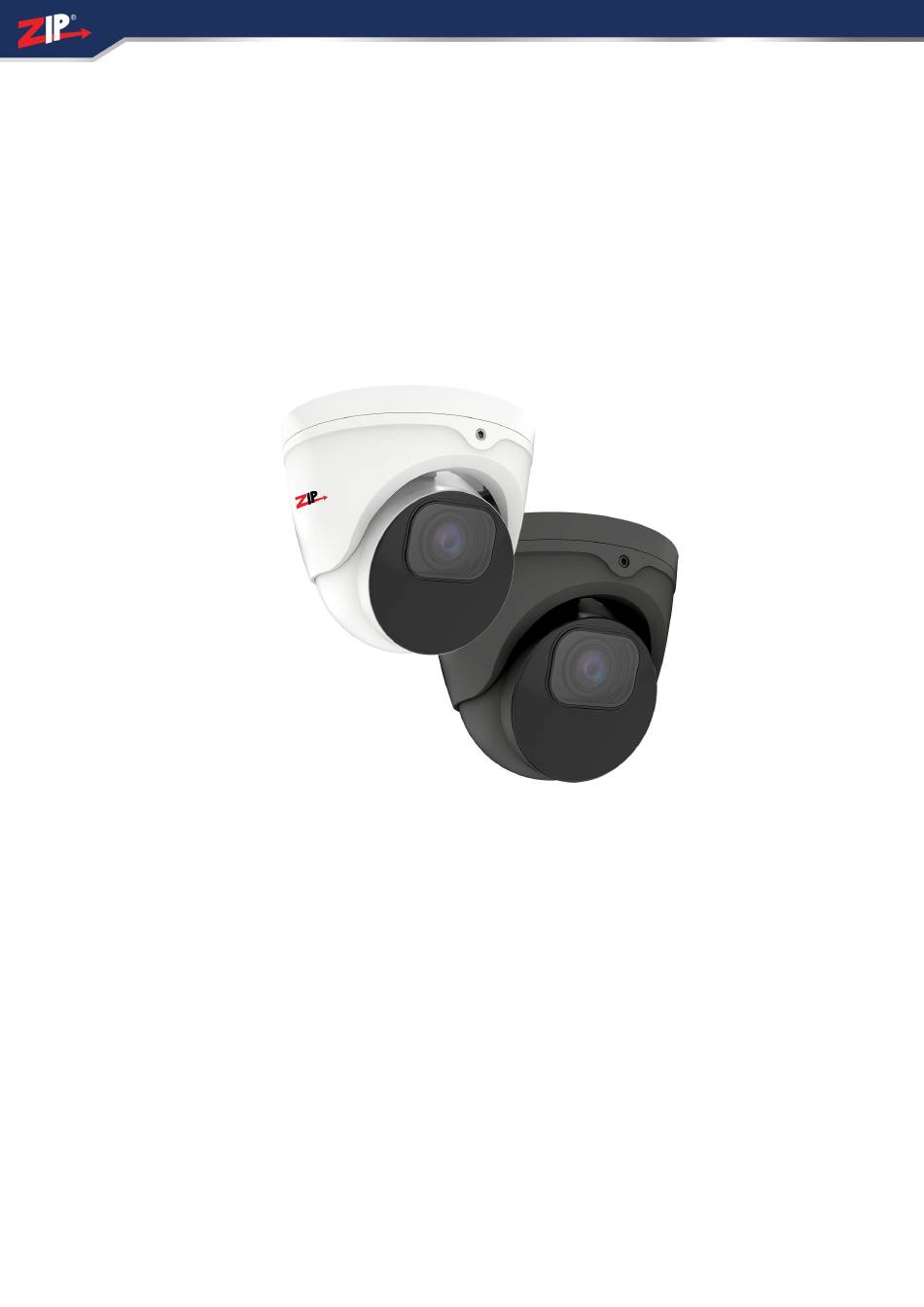

- Page 1 Instruction Manual CAM1200 © 2025 System Q Ltd ZipNVR.com...
-
Page 2: Table Of Contents
Poor Quality Images ....................... 8 Image is Black & White ....................8 NCD / No Image Displayed on Recorder ................. 8 General Maintenance Specifications CAM1200 ......................... 9 Conditions General Company Disclaimer ..................10 WEEE Declaration ......................10 Copyright ........................10 ©... -
Page 3: Connections & Dipswitches
Index Connections & Dipswitches The camera has a 2.1mm socket which requires 12V DC, use a regulated power supply rated above the current draw of the camera. The camera is polarity sensitive so connections must be correctly made. The camera has a standard BNC connector for the 4-in-1 video output, the output can be changed to AHD, CVI or CVBS if required. -
Page 4: Motorised Lens
CAM1200 Motorised Lens To access the Motorised Lens via coaxitron:- 1. Click on the image in Live view 2. Click on the PTZ button at the bottom of the screen 3. Use Zoom + and - to zoom in and out, the camera should automatically focus... -
Page 5: Mounting
Index Mounting 4.1 Mounting the Camera To mount the camera just follow the simple steps below. © 2025 System Q Ltd ZipNVR.com... -
Page 6: Osd Menu
CAM1200 OSD Menu Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set as default. To access the Cameras Menu via coaxitron:- 1. Click on the image in Live view 2. Click on the PTZ button at the bottom of the screen 3. - Page 7 Index RETURN MODE ATW / MWB RGAIN 0 ~ 32 (Default 20) BGAIN 0 ~ 32 (Default 21) DAY / NIGHT MODE EXT / AUTO / COLOR / BW RETURN IMAGE ENHANCE CONTRAST AUTO / MANUAL 0 ~ 40 (Default 21) SHARPNESS AUTO / MANUAL...
-
Page 8: Troubleshooting
- CVBS), when using a 2 MegaPixel DVR or above then use another video format, like HD-TVI. C. Reset the camera menu via Zip Coaxitron – OSD Menu D. Check if the DVR (digital video recorder) supports the resolution of the camera. -
Page 9: General Maintenance
Check that the cameras are firmly attached to the wall or mounting bracket. · Check playback in the recorder to ensure the camera is recording and triggering properly. Specifications 8.1 CAM1200 Resolution Lens Type 2.8-12mm Varifocal Image Output 1 Volt Peak-Peak 75 ohm Min.Illumination... -
Page 10: Conditions
WEE/CG0783SS collection point as defined by your local council. 9.3 Copyright © Copyright 2025 Zip is a registered trademark of System Q Ltd, Chesterfield. Derbyshire. S40 2WB 21/05/2025 ZipNVR.com...
