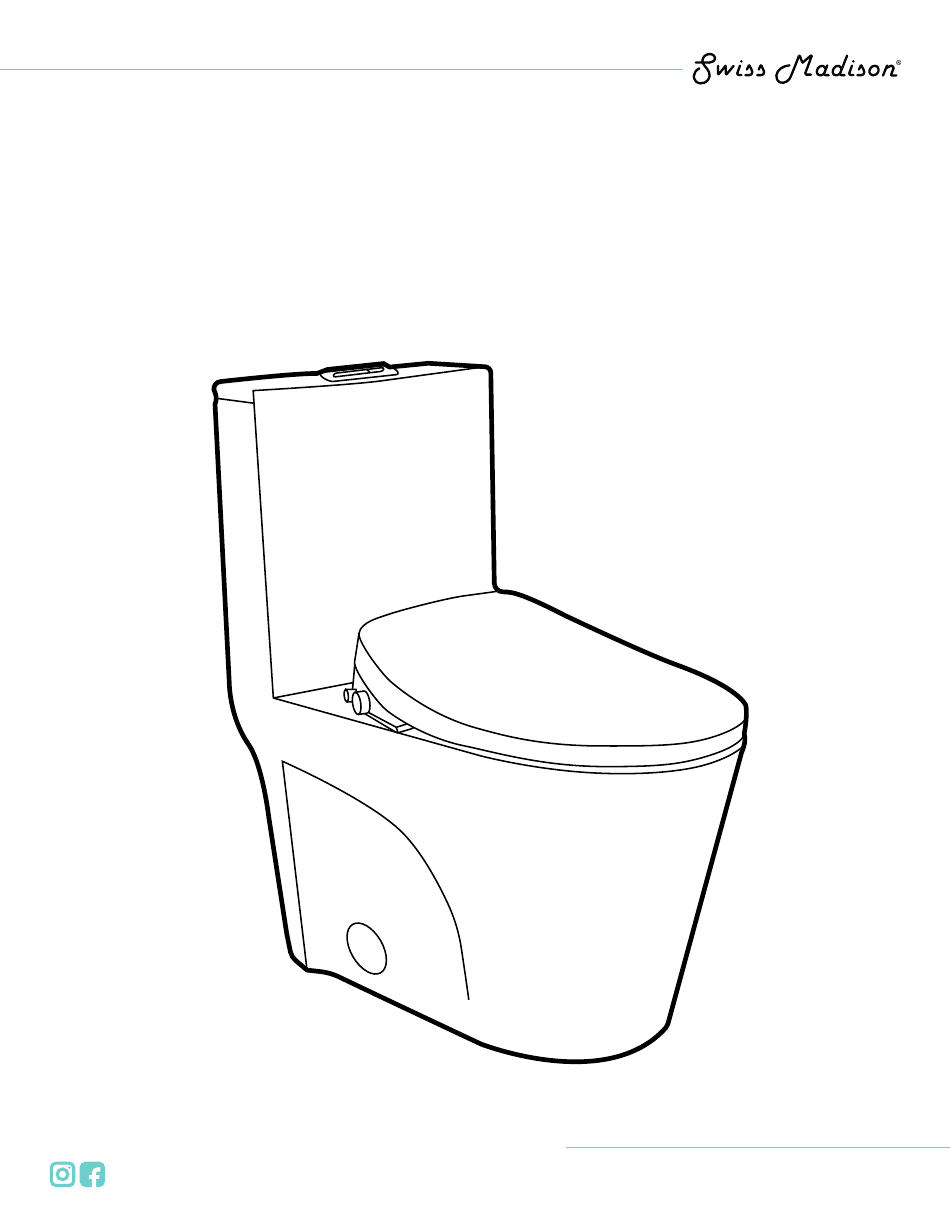

- Page 1 w e l l m a d e f o r e v e r One-Piece Toilet with Smart Seat Bidet INSTALLATION INSTRUCTIONS www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com @SwissMadison #WellMadeForever...
-
Page 2: Prior To Installation
All dimensions are nominal! Be sure to measure your toilet prior to installation. • The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. •... -
Page 3: Installation
INSTALLATION ONE-PIECE TOILET INSTALLATION: Turn Off Water Supply • Close toilet supply valve and flush tank completely, use towel to remove excess water. • Disconnect and remove supply line, if you are replacing the valve shut main water supply first. •... - Page 4 INSTALLATION ONE-PIECE TOILET Position Toilet on Flange • Unplug floor waste opening and install toilet on closet flange so bolts project through the mounting holes. • Loosely install retainer washers and nuts. Washer Bolt Install Toilet • Position toilet square to wall and, with a rocking motion, press bowl down fully on wax ring and flange.
-
Page 5: Installation Instructions
w e l l m a d e f o r e v e r Smart Seat Bidet INSTALLATION INSTRUCTIONS www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com @SwissMadison #WellMadeForever... -
Page 6: Questions Or Concerns
All dimensions are nominal! Be sure to measure your toilet prior to installation. • The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. •... - Page 7 INSTALLATION SMART SEAT BIDET When using electrical products, especially when children are present, basic safety precautions should always be followed: 1. The appliance is not to be used by people (including children) with reduced physical, sensory, mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
-
Page 8: Grounding Instructions
INSTALLATION SMART SEAT BIDET CAUTION - Failure to follow the instructions may cause body injury or property damage. 1. Do not install or use the product in wet places such as a steam room etc. 2. It is recommended to use a water-proof electrical outlet which should be installed in a place where it cannot easily get wet. 3. - Page 9 INSTALLATION SMART SEAT BIDET SM-STS21 Water Inlet Side Power Cord Inlet Side Net Weight 7.05 lb. Rated Voltage 120V~, 60Hz Rated Power Consumption 960W (When entering water temperature 15°C,flow rate 600ml/min) Maximum Power Consumption 1450W/120V Length of Power Cord 39.4” Water Supply Pressure 0.1 ~ 0.75MPa Water Supply Temperature...
-
Page 10: Install Mounting Hardware
INSTALLATION SMART SEAT BIDET REMOVE OLD SEAT INSTALL MOUNTING HARDWARE · Remove old seat according to Installation A: manufacturer’s instructions. · Insert expansion bolts into ceramic holes. · Place the fixing bracket over the expansion bolts, followed by the adjustment sheets then screws. ·... -
Page 11: Knob Functions
INSTALLATION SMART SEAT BIDET FUNCTIONS DEFAULT SETTINGS · When power is on the product will self test, when self test is over it will make a sound to notify the user it is ready to be used. · The water temperature default is about 95°F. ·... -
Page 12: Function Settings
INSTALLATION SMART SEAT BIDET FUNCTION SETTINGS · The knob lamp can be turned off by pressing the water temperature and seat temperature buttons at the same time. · The alert tones can be set to mute by unplugging your seat power, re-connecting and within 8 seconds, long press the seat temperature button for 3 seconds hold to mute. -
Page 13: Nozzle Maintenance
INSTALLATION SMART SEAT BIDET MAINTENANCE SURFACE CLEANING · Turn off power supply before cleaning. · Wipe surface with a sponge or soft cloth dampened with room temperature water or natural detergent. · Do not replace toilet seat until ceramic toilet is completely washed, it may corrode the surface of the product. NOZZLE MAINTENANCE ·... -
Page 14: Troubleshooting
INSTALLATION SMART SEAT BIDET TROUBLESHOOTING PROBLEM CAUSE SOLUTION Cool water should be It is normal, and provides normal Spray tube extends released from front end too slowly flushing about 5s later. before flushing. Insufficient water Knob is not completely turned Increase knob regulating angle. - Page 15 INSTALLATION SMART SEAT BIDET PROBLEM CAUSE SOLUTION Seat temperature is set at low Adjust seat temperature to Seat temperature is not sufficient gear. higher gear. Seat temperature is set at high Adjust seat temperature to Seat temperature is too high gear.
-
Page 16: One-Year Limited Warranty
® customers with beautiful, durable, long-lasting products. Should there be any defects in materials or craftsmanship under regular use that are discovered within the first year of installation, Swiss Madison ® will provide replacement parts at no charge, or at its discretion, replace any product or part of the product that is deemed defective, under normal installation, use, service or maintenance.
