Ambassador MARINE 134-0018-CP Installation Instructions

I
NSTALLATION
Thank you for choosing Ambassador Marine.
Your new Ambassador Marine faucet, sprayer, shower or
accessory will give you years of trouble-free performance.
Please read these instructions carefully before installing your
new item. If you have any additional questions about the
installation of this product, please feel free to contact one of
our friendly customer service representatives at 800.270.4262.
1
2
3
4
5
6
I
NSTRUCTIONS

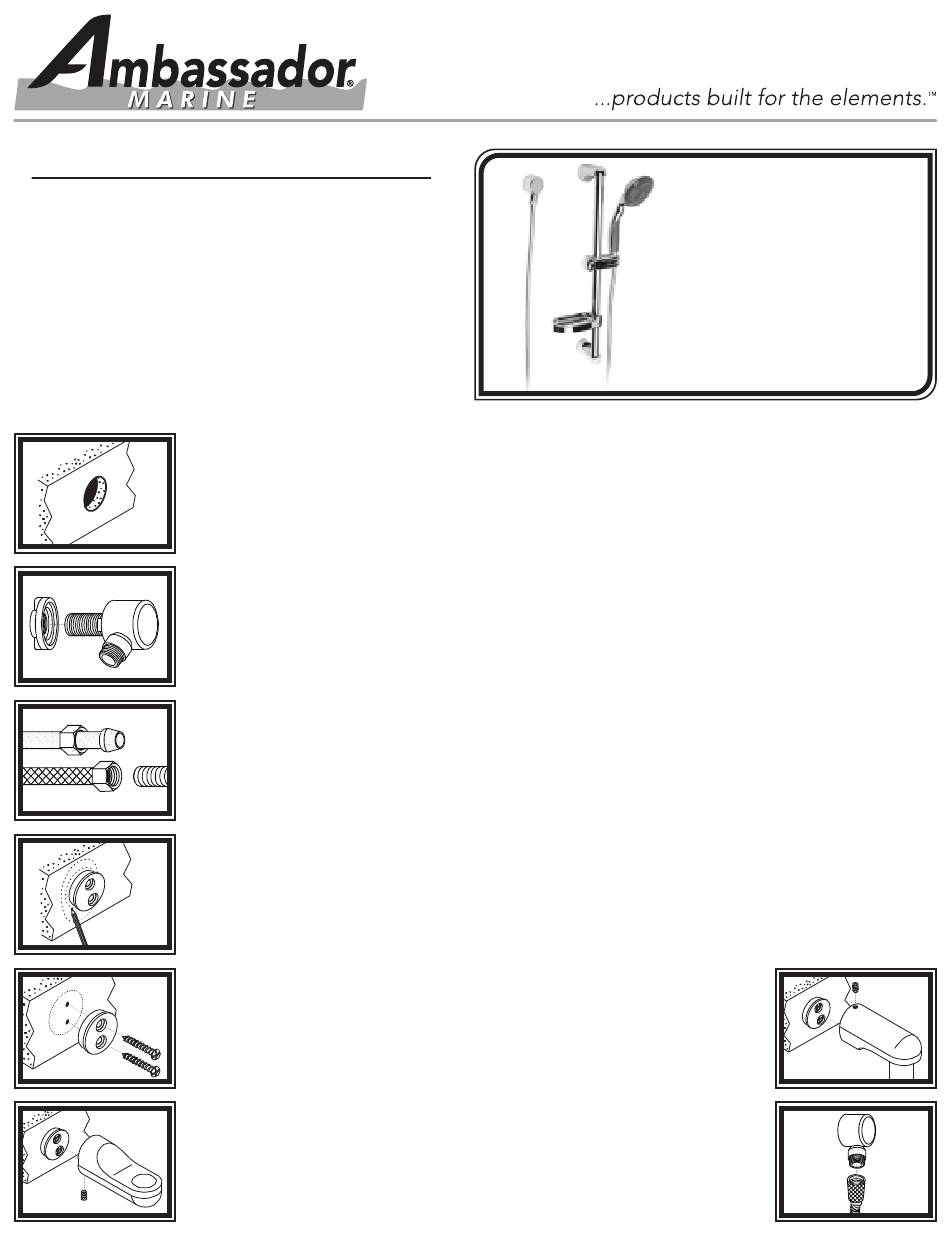

1) Hold elbow on the wall where desired. Make sure to leave enough room for the hose to hang
freely and extend into the shower. Drill 1" hole in the bulkhead in the desired location.
2) Make sure male nipple is tight into the elbow with Teflon (Plumber's) tape. Slip nipple through
the hole in the bulkhead. Make sure gasket properly lines up with the back of the elbow. From the
back side of the bulkhead, thread the lock nut onto the brass nipple and tighten.
3) Connect water supply line (not provided) to the nipple. Wrap the end of the nipple with
Teflon (Plumber's) tape. Follow the appropriate steps depending on your water supply line. If you
have a pre-assembled water supply hose with a threaded connector, simply screw on supply hose.
If you have a plastic water line with a formed end, water line will seat partially up into the brass
nipple. Connect by tightening the coupling nut. We do NOT suggest using sweat fittings as they
are prone to blow-outs.
4) Hold the bottom post on the wall where desired. With a pencil, lightly trace a circle
completely around the base of the post. Remove the post. Hold a mounting bracket directly in
the center of the outline. Trace a circle around the mounting bracket and the two mounting screw
holes.
5) Mount the bracket as shown. For mounting into fiberglass or other solid surface, drill a 1/8"
starter hole and attach the bracket to the wall.
6) Secure the post to the bracket with the set screw pointing away from the bar. Tighten the set
screw.
7) For the top post, simply set the bar into the bottom post and hold the top post at the correct
spot. NOTE: Mount the top post "in" tightly so that there is no up and down movement of the
bar. USE A BUBBLE LEVEL TO INSURE THAT THE BAR IS STRAIGHT.
Trace a circle around the top post and mount (repeat steps 4-6).
8) Attach hose to the connector. Turn the water supply on. While water
is running, check all connections for leaks. Connections may need
re-tightening.
9) To adjust the height of the holder rotate the knob 1/4 turn to unlock,
adjust to desired location and re-lock. You can also tilt the holder by
rotating its head.
CAUTION: THIS IS NOT A SAFETY DEVICE.
DO NOT USE AS A GRAB BAR.
134-0018-CP
(OEM)
135-0018-CP
(Retail)
Universal
Slide Bar Shower (Elite)
Chrome
7
8
