Ambassador MARINE Trinidad 134-0214-CP Installation Instructions

I
NSTALLATION
Thank you for choosing Ambassador Marine.
Your new Ambassador Marine faucet, sprayer, shower or
accessory will give you years of trouble-free performance.
Please read these instructions carefully before installing your
new item. If you have any additional questions about the
installation of this product, please feel free to contact one of
our friendly customer service representatives at 800.270.4262.
1
2
3
4
5
7
I
NSTRUCTIONS

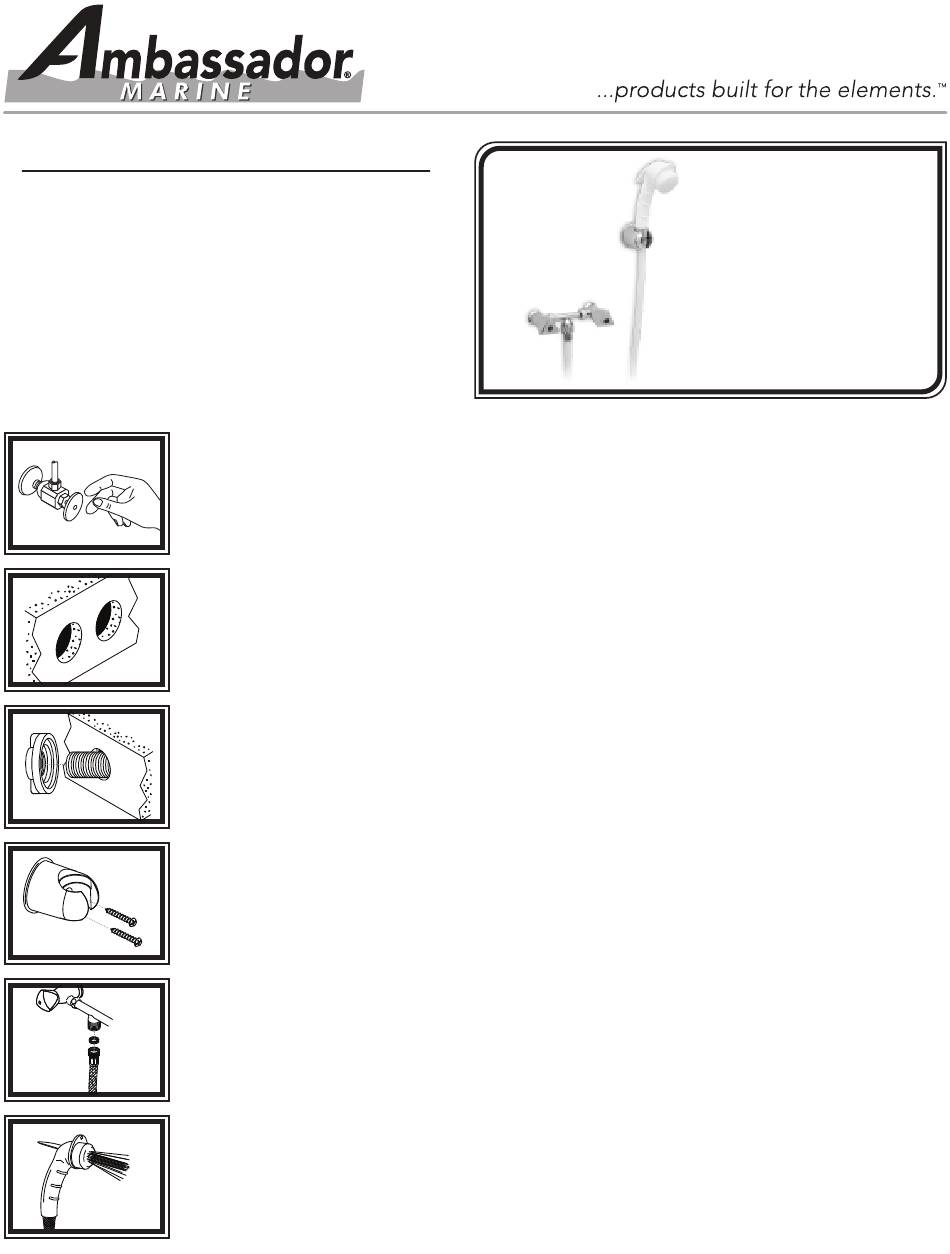

1) Turn off the water supply to your existing faucet (this procedure will vary depending on the
specific plumbing system installed on your boat). Cover the drain to prevent any small parts or
debris from falling in. Remove your existing faucet, taking care not to damage your existing water
lines. Clean area in preparation for new faucet.
2) Hold valves and bulkhead bracket on the wall where desired. Make sure to leave enough room
for your hose to hang freely and extend into the shower. Mark locations on the wall with a pencil.
Drill 1" holes in the bulkhead in the desired location for the valves and
bulkhead bracket screws.
3) Slide valves into holes in the bulkhead. From the back side of the wall attach the lock nuts and
tighten. Then attach water source to the
4) Mount bulkhead bracket with the two stainless steel screws provided. The top of the bracket is
the side with the larger diameter opening.
5) Attach hose to connector bar. Make sure black rubber washer is inside the fitting on the hose
before attaching.
6) Set sprayer in bulkhead bracket. Push down on the sprayer slightly to insure that it is resting
securely in the bracket.
7) This sprayer has two functions: intermittent and continuous. For intermittent spray, simply
press down on the trigger. For continuous spray, lift up on the trigger until it locks. To release,
simply press the trigger back down. If you wish the remove the hook from the sprayer, unscrew
the face. Slide the hook ring off the sprayer and remove the large, black, flat washer from inside
the face. Replace the face.
1 / " Male inlets.
2
134-0214-CP
(OEM)
135-0214-CP
(Retail)
Trinidad
External Shower Mixer
Chrome / Black
/ " starter holes for the
1
8
