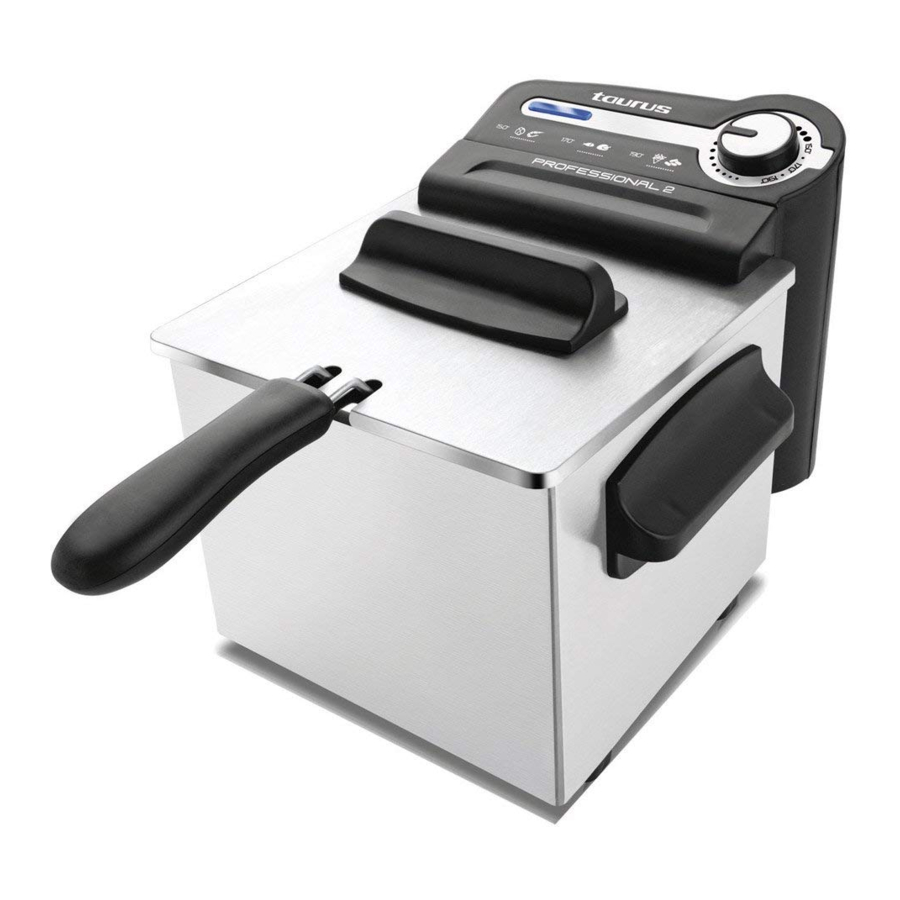

Taurus PROFESSIONAL 2 / 3 / 4 Manual

INTRODUCTION

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

DESCRIPTION

1. Lid
2. Lid handle
3. Temperature regulating thermostat
4. Pilot light
5. Automatic safety button
6. Level profiles
7. Control Unit
8. Heating element
9. Basket
10. Basket handle
11. Basket support
12. Tank
13. Level indicators
14. Body
15. Rearm button
16. Mains connection housing
17. Mains connection
18. Control unit support

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident. Failure to follow and observe these instructions may result in an accident.

USE AND CARE

• Fully unroll the appliance's power cable before each use.
• Never connect the appliance without having first of all filled the oil bowl
• Do not use the appliance if the on/off switch does not work.
• Do not move the appliance while in use.
• Do not move the appliance whilst in operation or if the oil is still hot. Once cooled, transport the appliance using the handles.
• Use the appliance handle/s, to catch it or move it.
• Do not turn the appliance over while it is in use or connected to the mains.
• Respect the MAX and MIN levels
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
• This appliance should be stored out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Do not store or transport the appliance if it is still hot.
• Never leave the appliance unattended while in use.
• Never leave the appliance unattended when in use and keep out of the reach of children, as this is an electrical appliance that heats oil to high temperatures and may cause serious burns.
• If fat is used instead of oil, melt first in a separate recipient.
• If fat has hardened in the tank, make a few holes in the solid fat in order to allow the water, which has been retained in the fat to be released as steam when heated at the minimum thermostat temperature.
• If, for some reason, the oil were to catch fire, disconnect the appliance from the mains and smother the fire using the lid, a cover or a large kitchen cloth.. NEVER WITH WATER.
• Turn the thermostat control to the minimum (MIN) setting. This does not mean that the iron is switched off permanently.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all the product's packaging has been removed.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

OIL FILLING:

• Open the cover.
• Ensure that the electrical equipment is appropriately positioned.
• Pour oil up to the mark indicating the MAXIMUM level on the bowl.
• The appliance must not be used with less oil than that indicated by the MINIMAL mark.

USE:

• Take the length of cable required out of the housing.
• Connect the appliance to the mains.
• Remove the lid. This fryer is not designed to fry with the lid on.
• Remove the basket and attach the handle by pivoting until the rods engage in the housing.
• The pilot light (D) comes on.
• Select the desired frying temperature using the thermostat control. The indicator light will turn red, indicating that the oil is being heated.
• Prepare the food to be fried and place it in the basket, making sure that it does not rise above ¾ of its capacity. Allow the food to drain before placing it in the basket.
• Frozen food must be allowed for thaw beforehand. The placing of frozen food or food with high water content in the basket may cause the oil to suddenly spit after a few seconds.
• Wait until the pilot light (D) has gone out which will indicate that the appliance has reached an adequate temperature.
• Slowly place the basket in the bowl to avoid overflowing and splashing.
• When the food has been fried sufficiently, lift the basket and position it in the support in order to allow the excess oil to drain from the food.
• Empty the basket.
• Change the oil approximately every 15 or 20 frying operations, or every 5 – 6 months if not used frequently.
• In order to minimize the generation of acrylamide during the frying process, avoid reaching dark brown colours on the fried food, remove any burnt leftovers from the oil container, food rich in starch (such as potatoes or corns) should be fried at temperatures lower than 170ºC.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Select the minimum position (MIN) using the thermostat control.
• Unplug the appliance from the mains.
• Put the cable back in the cable housing.
• Fit the basket into the tank.
• The basket handle may be left attached or you can whisk towards the interior of the basket by pressing sideways on the rods and pivoting.
• Close the lid.

CORD HOUSING

• This appliance has a cable compartment situated on its posterior.

CARRY HANDLE/S:

• The device has a handle on the upper part so it can be transported easily and comfortably.

PRACTICAL RECOMMENDATIONS:

• Fry a few pieces of bread to remove the smell of used oil.
• For food with a high water content, it is better and quicker to fry in two lots with less food than in just one. This will reduce the risk of splashes and spillage.
• This will reduce the risk of splashes and spillage. This system consists of first frying the food until it is reasonably well done and then frying again using very hot oil to brown the food.
• Olive oil with a minimum acidity level is recommendable for frying.
• Do not mix different oils.
• Wash potatoes before frying to stop them from sticking.

SAFETY THERMAL PROTECTOR:

• In the event of overheating, the thermal safety mechanism will be activated and the appliance will stop operating. When this occurs the appliance should be disconnected from the mains and left to cool. Then press the rearming button, situated at the back of the electrical circuit, with the tip of a pen or similar in order to reactivate the appliance (Fig.1)

CLEANING:

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Dismantle the appliance as follows:
• Take off the lid
• Remove the basket and take out the electrical equipment
• Remove the tank
• Carefully pour the used oil from the bowl into a container (not the sink), according to the regulations in force for the treatment and disposal of waste.
• Except for the power unit and the mains connection, all the parts can be cleaned with detergent and water or in washing up liquid. Rinse thoroughly to remove all traces of detergent
• Clean the electrical equipment and the mains connection with a damp cloth and dry. DO NOT IMMERSE IN WATER OR ANY OTHER LIQUID.
• Clean the equipment using a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• The following parts are suitable for cleaning in hot soapy water or in a dishwasher (using a soft cleaning program):
  • Basket
  • Lid
  • Tank
  • Body

ANOMALIES AND REPAIR:

• Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

SAFETY ADVICE AND WARNINGS

• This appliance is for household use only, not professional or industrial use. This appliance is only for domestic use, not for industrial or professional use. It is not intended to be used by guests in hospitality environments such as bed and breakfast, hotels, motels, and other types of residential environments, even in farm houses, areas of the kitchen staff in shops, offices and other work environments.
• This appliance must not be used by children under 8 years old.
• This appliance can be used by children over 8 years old if they are continuously supervised by an adult.
• This appliance can be used by people unused to its handling, disabled people if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Keep the appliance and its cable out of reach of children under the age of eight.
• Cleaning and user maintenance must not be done by children unless they are supervised
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• Place the appliance on a horizontal, flat and stable surface with handles if these exist, placed to prevent possible spillage of hot liquids.
• Do not use the appliance in conjunction with a programmer, timer or other device automatically connected to it.
• The temperature of the accessible surfaces may be high when the appliance is in use.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.
• If the mains connection is damaged, it must be replaced. Take the appliance to an authorised Technical Assistance Service In order to prevent any danger, do not attempt to dismantle or repair it yourself.
• Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.
• This symbol means that surface could to get hot during the use.
• Ensure that the voltage indicated on the nameplate matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Do not force the electrical wire. Never use the electric wire to lift up, carry or unplug the appliance.
• Do not wrap the cable around the appliance.
• Do not allow the connection cable to hang or to come into contact with the appliance's hot surfaces.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not touch the plug with wet hands.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• This appliance is not suitable for outdoor use.
• Keep the working area clean and well lit. Cluttered and dark areas invite accidents.
• Do not force the electrical wire. Never use the electric wire to lift up, carry or unplug the appliance.
• Do not use or store the appliance outdoors.
