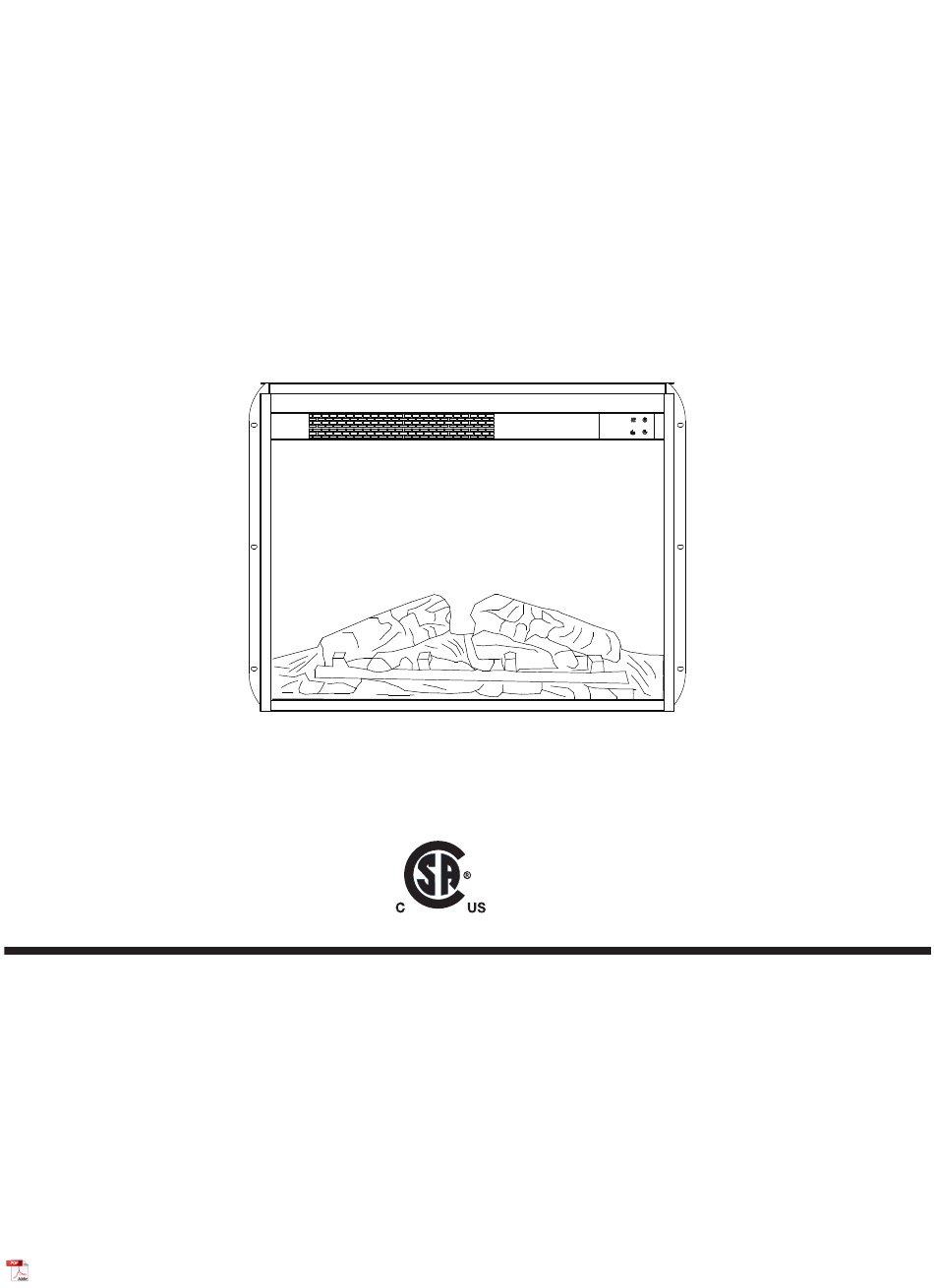

HOMEOWNERS OPERATING MANUAL
CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE
INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE
INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR
INJURY AND WILL VOID THE WARRANTY.
WARNING: IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED, AN ELECTRIC
SHOCK OR FIRE MAY RESULT IN PROPERTY DAMAGE, PERSONAL INJURY, OR LOSS OF
LIFE.
THIS INSTRUCTION BOOKLET CONTAINS
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
ELECTRIC FIREPLACE
261046
MODELS: RV23V80L-MT1
RV26V80L-MT1
RV23V80S-MT1
RV26V80S-MT1
RV23V80M-MT1
RV26V80M-MT1
IMPORTANT
SAFETY INFORMATION.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for INNOFLAME RV23V80L-MT1
Summary of Contents for INNOFLAME RV23V80L-MT1
- Page 1 ELECTRIC FIREPLACE HOMEOWNERS OPERATING MANUAL MODELS: RV23V80L-MT1 RV26V80L-MT1 RV23V80S-MT1 RV26V80S-MT1 RV23V80M-MT1 RV26V80M-MT1 261046 CONSUMER SAFETY INFORMATION: PLEASE READ THIS MANUAL BEFORE INSTALLING AND OPERATING THIS APPLIANCE. FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A POSSIBLE ELECTRIC SHOCK, FIRE HAZARD, AND/OR INJURY AND WILL VOID THE WARRANTY.
-
Page 2: Important Instructions
IMPORTANT INSTRUCTIONS When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock, and/or injury including the following: 1. Read all instructions before using this heater. 2. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If pro- vided, use handles when moving this heater. -
Page 3: Installation Instruction
INSTALLATION INSTRUCTION Position your completed mantel close to its final location. Make sure you can access the back of the mantel as your electric fireplace appliance will be installed from back. Using a Phillips head screwdriver, remove the screws and the metal mounting center opening. Next unpack the electric fireplace appliance carefully. -
Page 4: Grounding Instructions
GROUNDING INSTRUCTIONS: Figure 2 This heater is for use on 120 volts. The cord has a plug as shown at (A) in figure 2. An adapter as shown at (C) is available for connecting three-blade grounding-type plugs to two-slot receptacles. The green grounding lug extending Grounding Pin from the adapter must be connected to a per- Cover of Grounded Outlet Box... - Page 5 Do not share a socket with other appliances when using electric fireplaces, please use a dedicated socket. × √ × Never use with an extension cord or relocatable power tap (outlet / power strip). ×...
-
Page 6: Cleaning Trim
COLD CLIMATE INSTALLATION RECOMMENDATION: When installing this unit against a Non-insulated exterior wall or chase, it is mandatory that outer walls be insulated to conform to applicable insulation codes. ELECTRICAL CONNECTION The unit comes standard with 6 feet (1.8M) three wire cord, exiting from the rear of the fire- place. - Page 7 OPERATING INSTRUCTION On the top-right of the electric fireplace is the mechanical control panel. This panel contains the buttons to properly operate the electric fireplace. The buttons on the remote control func- tion in the same way. The remote control has an effective range of up to 6 m. Digital Display NOTE: The remote control is intended only for the functional operation of the product, It can...
-
Page 8: Batteries Replacement
TIMER The TIMER has adjustable setting at range from 1 hour to 8 hours and OFF. As shown the following: 1h-2h-3h-4h-5h-6h-7h-8h-OFF. If the digital display turns on and nothing happens within 10 seconds, the digital display will auto shut off. Once you have set the timer, and the timer is up, close all the functions and enter standby mode. -
Page 9: Year Limited Warranty
1 YEAR LIMITED WARRANTY Electrical Fireplace Basic Warranty Our electrical fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. 1. This electric fireplace must be installed and operated at all times in accordance with the installation and operating instructions furnished with the product, Any unauthorized repair, alteration, willful abuse, accident, or misuse of the product shall nullify this warranty.
