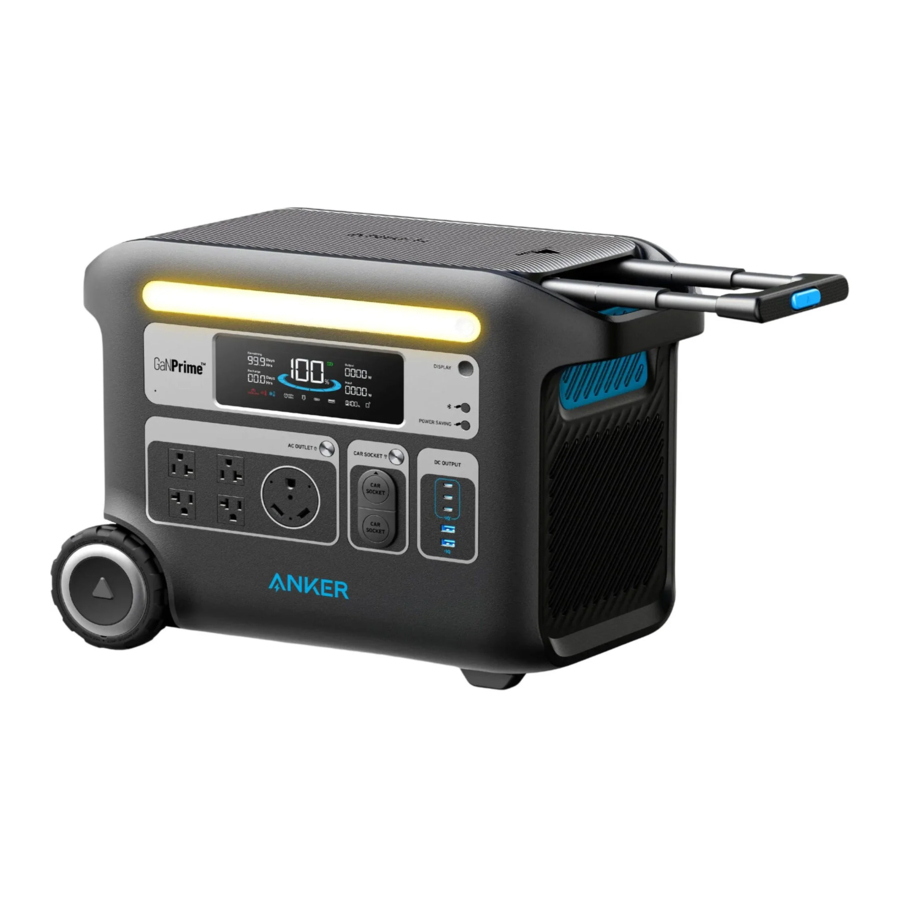

Anker 767, A1780 Manual

What's in the Box

Overview

1. Display Button
2. IoT Button
3. Power Saving Button
4. Car Socket Button
5. USB Ports
6. Car Sockets
7. TT-30R AC Output Port
8. NEMA-20R AC Output Ports
9. AC Outlet Button

10. Retractable Handle (Press the button on the retractable handle and pull to extend)
11. Solar Input and Car Input
12. Overcharge Protection
13. AC Input Port
14. Wheel(s)
15. Expansion Battery Port

Recharging Your Power Station

AC recharging (1440W Max)
Recharge your power station by connecting to a wall outlet with the AC charging cable.

Solar Panel Recharging (1000W Max)
Recharge your power station with a maximum solar input of 1000W by connecting up to five Anker 531 Solar Panel (200W) as shown in the figure with a solar charging cable.

Car Recharging
Recharge your power station by connecting to a car's output port with the car charging cable.

When your portable power station only has 1% battery remaining, the "Remaining Battery" indicator will flicker to remind you to recharge.

Powering Your Devices

Power Saving Mode
Turning on the Power Saving mode prevents wasting energy as it automatically turns off the power station once all your devices are fully charged.
Turning off the Power Saving mode will enable stable charging over an extended period, such as for time-lapse photography or when using a CPAP machine overnight.
The AC outlets can intelligently identify whether a plug is inserted. This helps prevent power wastage by automatically turning off the power station if no plug is detected for more than 15 minutes, whether the Power Saving mode is turned on or off.

AC Charging
Press the AC outlet button and connect your devices to the AC output ports.

Press the AC outlet button and charge your RV via the TT-30R AC output ports. Please note that the max output of the AC outlet is 2400W, so do not power devices that are higher than 2400W.

USB Charging
Connect your devices to the USB ports.

Car Socket Charging
Turn on the car socket and connect your devices to start charging.

Uninterruptible Power Supply (UPS)

To use the UPS feature, connect your power station to a wall outlet with the AC charging cable, then press the AC outlet button and connect your devices via the AC output ports.

Connect with an Expansion Battery

Your power station can be connected with an expansion battery to double the capacity to 4096Wh. Please refer to the user manual of Anker 760 Portable Power Station Expansion Battery (2048Wh) for detailed instructions.

The Anker App for Smart Control

You can remotely control your power station using the Anker App. Please download the app and its user manual by scanning this QR code.
Connect the device to a network before using the app for the first time. After connecting successfully, you can connect your devices off-grid.

Light

Ambient light
Press the button once to turn on the ambient light, and press again up to 2 times to switch between brightness levels.

SOS Mode
Press and hold the button for 2 seconds to turn on SOS mode.

LCD Screen Guide

1. Current Output Power
2. Current Input Power
3. IoT
   Press the IoT button for 2 seconds and connect your devices through the app when this icon appears on the screen.
4. Remaining Battery for Expansion Battery
   When the expansion battery is connected successfully, this icon appears on the screen.
5. USB-A Output Port
6. USB-C Output Port
7. Car Charging
8. AC Charge and Voltage Frequency
9. Low-Temperature Alert
   When this icon shows, stop using the power station until the icon disappears.
10. High-Temperature Alert
    When this icon shows, stop using the power station and let it cool down until the icon disappears.
11. Overload Warning
    This icon appears when a port is overloaded. The port will be turned off to avoid any damage. Please remove the device causing overload.
12. Estimated Time to Fully Recharge
13. Estimated Time for Battery to Deplete
14. Remaining Battery for Power Station
15. Power Saving Mode

FAQ

What is the max power output of the AC output ports?
The AC output ports can deliver a maximum of 2400W to connected devices.

Can Anker 767 Portable Power Station power a CPAP machine?
Yes, but make sure to turn off the Power Saving mode first.

What should I do when using a solar charger to charge Anker 767 Portable Power Station?
The solar input supports an 11-60V solar charger with an XT-60 connector. If you use an 11-32V solar charger, the current supports 10A max. When you use a 32-60V solar charger, the current supports 20A max. We recommend using Anker 531 Solar Panel (200W) to get the best compatibility.

Can the USB-C ports be used to charge Anker 767 Portable Power Station (input only) or are they output only?
The USB-C ports support output only.

What should I do when AC recharging fails?

If AC recharging does not work, check to see if the overload protection switch is switched on. If it is on, press down to reset and then continue recharging.

How do I reset Anker 767 Portable Power Station?

If your power station isn't working correctly, insert a paper clip or pin into the reset hole for 1 second for a factory reset. If the power station still doesn't work, please contact support@anker.com.

Why is the power station not working after it hasn't been used for a long time?
If the power station is stored at a low capacity for a long time, lithium batteries will self-consume power which may lead to a quick discharge. This often leads to poor conductivity and a reduced battery lifespan that causes the battery not to work.

How should I store and maintain the power station?

When storing your portable power station, please make sure that you:

1. Turn off all the outputs.
2. Store the power station in a dry and cool environment.
3. Check the remaining battery capacity each week. If the battery level is below 30%, fully charge the power station. Don't forget to charge it to 100% once every 3 months.

Specifications

Cell Capacity	2048 Wh
AC Input Voltage	120V ~ 12A Max, 60Hz
AC Input Power (Charging)	1440W Max
AC Input Power (Bypass Mode)	1440W Max
Solar Panel Input	11-32V 10A; 32V-60V 20A (1000W Max)
Car Charger Output	12V 10A
AC Output	120V~ 20A, 60Hz, 2400W Max
USB-A Output	5V 2.4A (2.4A Max Per Port)
USB-C Output (100W)	5V 3A/9V 3A/15V 3A/20V 3A/20V 5A (100W Max Per Port)
UPS	20ms
Discharging Temperature	-4°F-104°F / -20°C-40°C
Charging Temperature	32°F-104°F / 0°C-40°C
Size	20.7 × 15.5 × 9.8 in / 52.5 × 39.5 × 25.0 cm
Net Weight	67.2 lb / 30.5 kg

Attention

Not permitted on aircraft.

IMPORTANT SAFETY INSTRUCTIONS

When using this product, basic precautions should always be followed, including the following:

• Read all the instructions before using the product.
• To reduce the risk of injury, close supervision is necessary when the product is used near children.
• Do not put fingers or hands into the product.
• Do not expose the product to rain or snow.
• Use of an attachment not recommended or sold by the product manufacturer may result in a risk of fire, electric shock, or injury.
• To reduce the risk of damage to the electric plug and cord, pull the plug rather than the cord when disconnecting the product.
• Do not use the product in excess of its output rating. Overload outputs above rating may result in a risk of fire or injury.
• Do not use the product or attachment that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury.
• Do not operate the product with a damaged cord, plug, or output cable.
• Do not disassemble the product. Take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or electric shock.
• Do not expose the product to fire or high temperatures. Exposure to fire or temperatures above 130°C may cause explosions.
• To reduce the risk of electric shock, unplug the power pack from the outlet before attempting any instructed servicing.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• When charging a device, the product may feel warm. This is a normal operating condition and should not be a cause for concern.
• When charging the internal battery, work in a well-ventilated area and do not restrict ventilation in any way.
• Do not clean the product with harmful chemicals or detergents.
• Misuse, dropping, or excessive force may cause product damage.
• When disposing of secondary cells or batteries, keep cells or batteries of different electrochemical systems separate from each other.
• Do not use or store the power station in direct sunlight for a long period, such as in a car, cargo bed, or any other place where it will be exposed to high temperatures. Doing so may cause the product to malfunction, deteriorate, or generate heat.

  Risk of explosion if the battery is replaced by an incorrect type.
• Disposal of a battery into a fire or hot oven, or mechanically crushing or cutting off a battery, can result in an explosion.
• Leaving a battery in an extremely high-temperature environment can result in an explosion or leakage of flammable liquid or gas.
• A battery subjected to extremely low air pressure may cause an explosion or leakage of flammable liquid or gas.
• Unplug the AC power cable to disconnect from the line voltage.

GROUNDING INSTRUCTIONS
This product must be grounded. In the event of a malfunction or breakdown, grounding provides a path of least resistance for electrical current to reduce the risk of electric shock. This product is equipped with a cord with an equipment grounding conductor and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Improper connection of the equipment grounding conductor may result in an electric shock. Check with a qualified electrician if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

Storage and Maintenance Instructions

1. Store the product between 32°F-104°F (0°C-40°C). Avoid exposing the product to rain or using the product in a humid environment.
2. To preserve the battery lifespan, charge to 100% after using. If you plan to store your power station, recharge to 100% every 3 months.
3. Keep the product on a flat surface when using, charging, and storing.

Bluetooth: The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Anker Innovations Limited (or Anker Technology Co., Limited) is under license. Other trademarks and trade names are those of their respective owners.
