COMSOL CM24HDA User Manual

Usb-c dual 4k hdmi docking station
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Model: CM24HDA

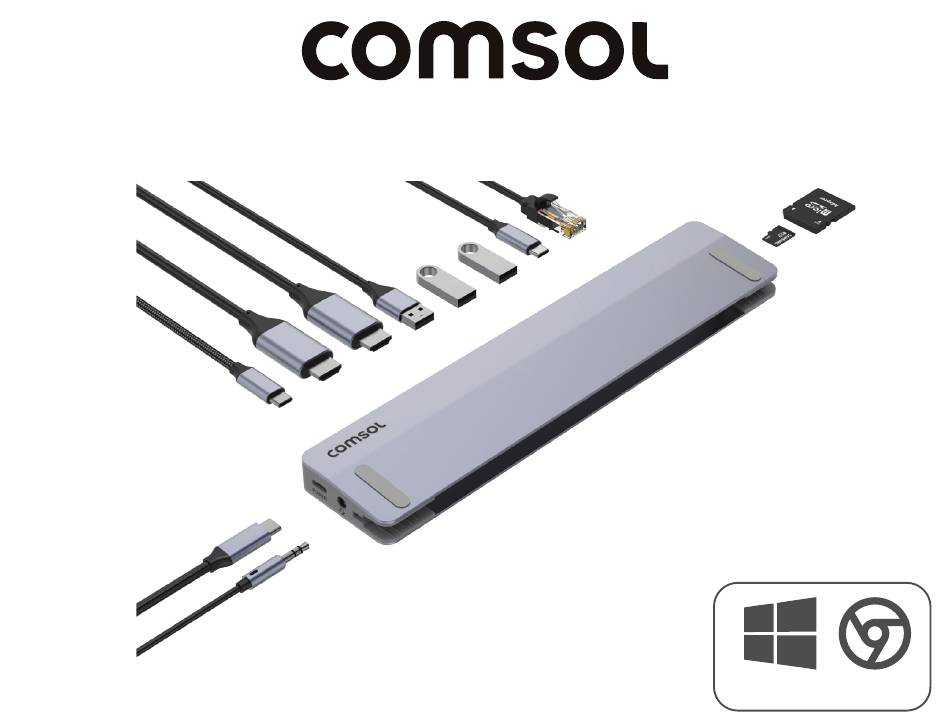

USB-C Dual 4K HDMI Docking Station
Windows
Chrome
User Manual v1.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM24HDA and is the answer not in the manual?

Questions and answers

Related Manuals for COMSOL CM24HDA

Summary of Contents for COMSOL CM24HDA

  • Page 1 Model: CM24HDA USB-C Dual 4K HDMI Docking Station Windows Chrome User Manual v1.1...

  • Page 2: Dual Monitor

    Maximum Monitor Resolutions The maximum monitor resolution supported by this docking station will depend on your computer’s USB-C port. Check with your computer’s specifications to determine if your USB-C port supports DisplayPort 1.4 or DisplayPort 1.2 Laptop USB-C Port Single Monitor Dual Monitor DisplayPort 1.4 3840 x 2160 @60Hz...
  • Page 3 Port Description USB-C to C Connect this cable from the host port on the docking station to a USB-C port on your Host Cable laptop SD Card / Insert an SD or microSD card into the respective port to access your photos, microSD Card video and other media at speeds up to 104MB/s 3.5mm Audio...

  • Page 4: Operation

    Operation It is recommended to use the USB-C docking station with your computer’s power supply connected to the USB-C Power Port This will provide power to the docking station while also providing power to charge your computer. Connect the docking station to your computer using the included USB-C to USB-C cable. Plug one end into a USB-C port on your computer and the other into the USB-C port on the docking station labeled with the computer icon Connect one or two monitors to either HDMI 1 or HDMI 2...

  • Page 5: Specifications

    `• 3 x USB-A 3.0 data ports (5Gbps) • 1 x USB-C 3.2 data port (5Gbps) In the Box • 1 x CM24HDA USB-C Docking Station • 1 x USB-C to C Host Cable • 1 x User Manual Compatibility Windows | ChromeOS Note: macOS does not support MST.

  • Page 6: Troubleshooting

    If you need further assistance please contact our Australian based tech support team via the Live Chat on our website www.comsol.com.au or by emailing support@comsol.com.au or calling 1800 266765 * Computer’s USB-C port must support DisplayPort 1.4 + DSC (Display Stream Compression) Thunderbolt is a trademark of the Intel Corporation in the U.S and other countries...
