COMSOL DS34HDA User Manual

Triple 4k display usb-c docking station with 150w power supply
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual

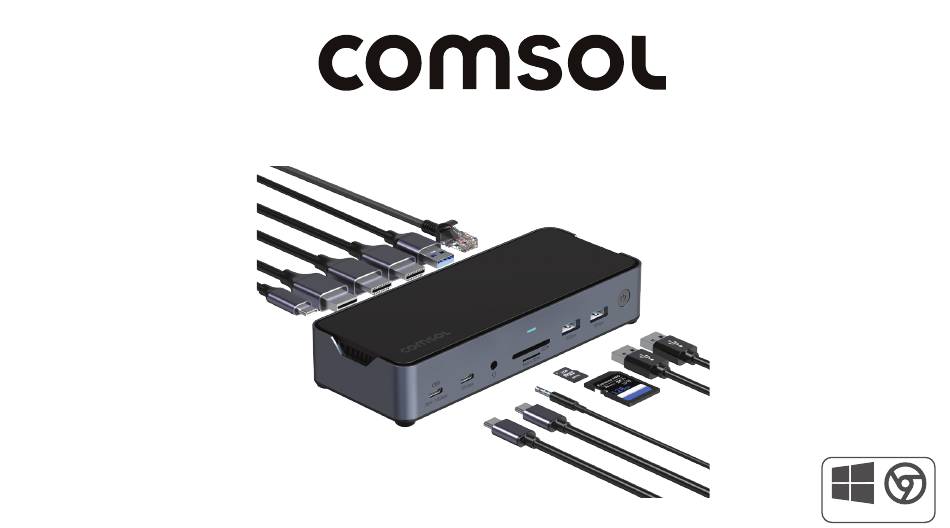

Model: DS34HDA
Triple 4K Display USB-C Docking Station
with 150W Power Supply
In the Box
• 1 x DS34HDA USB-C Docking Station
• 1 x 150W AC Power Supply
• 1 x 1m USB-C to USB-C Cable
• 1 x User Manual
User Manual v1.1
Windows Chrome

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS34HDA and is the answer not in the manual?

Questions and answers

Related Manuals for COMSOL DS34HDA

Summary of Contents for COMSOL DS34HDA

  • Page 1 Triple 4K Display USB-C Docking Station with 150W Power Supply In the Box • 1 x DS34HDA USB-C Docking Station • 1 x 150W AC Power Supply • 1 x 1m USB-C to USB-C Cable • 1 x User Manual User Manual v1.1...
  • Page 2 Port Description USB-C Data & Connect a USB-C device to this port with data transfer speeds up to 10Gbps. PD 30W Charge This port can also be used to fast charge a smartphone, tablet or other device up to 30W USB-C 3.2 Connect USB-C devices including external storage, flash drives, a web cam, a printer or Data Ports...
  • Page 3 Security Slot Protect your investment and secure your dock using a K-Slot locking device RJ45 Gigabit Connect a wired Gigabit Network with an Ethernet cable. The Green LED will illuminate to show a Port connection has been made with the network, a Yellow LED illuminates when there is network activity USB-A 2.0 Connect a legacy devices to this USB-A port with data transfer speeds up to 480Mbps Data Port...

  • Page 4: Operation

    Operation Connect the included power supply to the rear of the docking station and plug the other end into a power outlet. 150W of power will power the docking station, all connected devices and provide up to 90W of USB-C power for laptop charging. Connect the docking station to your computer using the included USB-C to USB-C cable.

  • Page 5: Specifications

    Maximum Monitor Resolutions The maximum monitor resolution supported by this docking station will depend on your computer’s USB-C port. Check with your computer’s specifications to determine if your USB-C port supports DisplayPort 1.4 or DisplayPort 1.2 Laptop USB-C Port Single Monitor Dual Monitor Triple Monitor 7680 x 4320 @30Hz or...

  • Page 6: Troubleshooting

    Contact Support If you need further assistance please contact our Australian based tech support team via the Live Chat on our website www.comsol.com.au or by emailing support@comsol.com.au or calling 1800 266765 DS34HDA Power Supply - Important Safety Instructions •...
