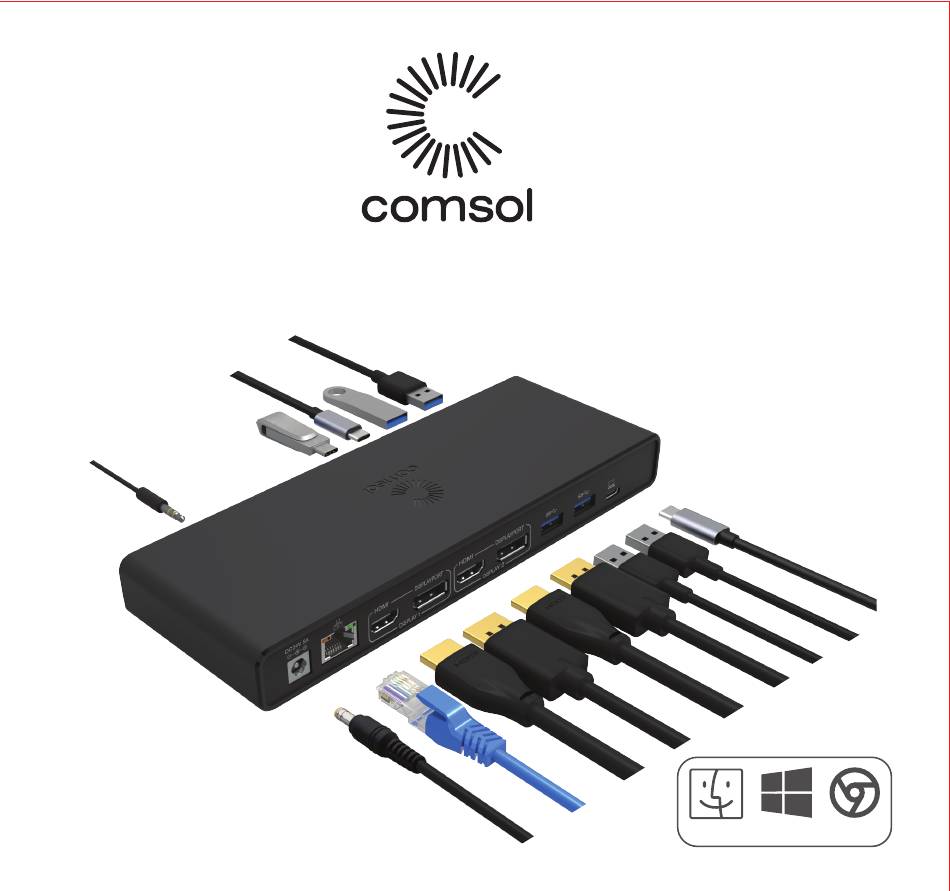

Model: CMDL24D
Universal Docking Station with Dual HDMI and DisplayPort
4 x USB-A, 2 x USB-C, Gigabit Ethernet, Audio & AC Power
Mac
Windows
Chrome
User Manual v1.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CMDL24D and is the answer not in the manual?

Questions and answers

Related Manuals for COMSOL CMDL24D

Summary of Contents for COMSOL CMDL24D

  • Page 1 Model: CMDL24D Universal Docking Station with Dual HDMI and DisplayPort 4 x USB-A, 2 x USB-C, Gigabit Ethernet, Audio & AC Power Windows Chrome User Manual v1.1...
  • Page 2 Port Description DC Power Input Connect the included 120W AC power supply to this port Connect a wired Gigabit Network with an Ethernet cable. The Green LED will illuminate to RJ45 Gigabit show a connection has been made with the network, a yellow LED illuminates when there is network activity Connect your HDMI monitor to this port HDMI Port 1...
  • Page 3 Port Description USB-A 3.0 Connect a USB-A device to this port with data transfer speeds up to 5 Gbps. This port can Data & Charge also be used to charge a phone using the BC1.2 charging specification USB-A 3.0 Connect USB-A devices including keyboard/mouse, flash drives, a web cam, a printer or Data Port external storage devices to this high speed USB-A 3.0 port at speeds up to 5Gbps USB-C 3.1...

  • Page 4: Maximum Resolutions

    Maximum Resolutions Monitor 1 Monitor 2 Single 5K Monitor HDMI + HDMI 3840 x 2160 @60Hz 3840 x 2160 @60Hz DisplayPort + DisplayPort 3840 x 2160 @60Hz 3840 x 2160 @60Hz 5120 x 2880 @60Hz DisplayPort + HDMI 3840 x 2160 @60Hz 3840 x 2160 @60Hz Operation Connect the included AC power supply to the rear of the docking station and plug the other end into a power outlet.
  • Page 5 DisplayLink Drivers for MacOS This docking station requires the host computer to have DisplayLink drivers installed to support external monitors. Windows and ChromeOS support DisplayLink natively and don’t need additional drivers installed to run external monitors. macOS users will need to install DisplayLink drivers to run external monitors. DisplayLink drivers are available for MacOS X 10.8 onwards.

  • Page 6: Specifications

    • 2 x HDMI monitor ports • 2 x DisplayPort monitor ports In the Box • 1 x CMDL24D Universal Docking Station • 1 x 1m USB-C to USB-A Cable • 1 x 120W AC Power Adapter • 1 x User Manual •...
