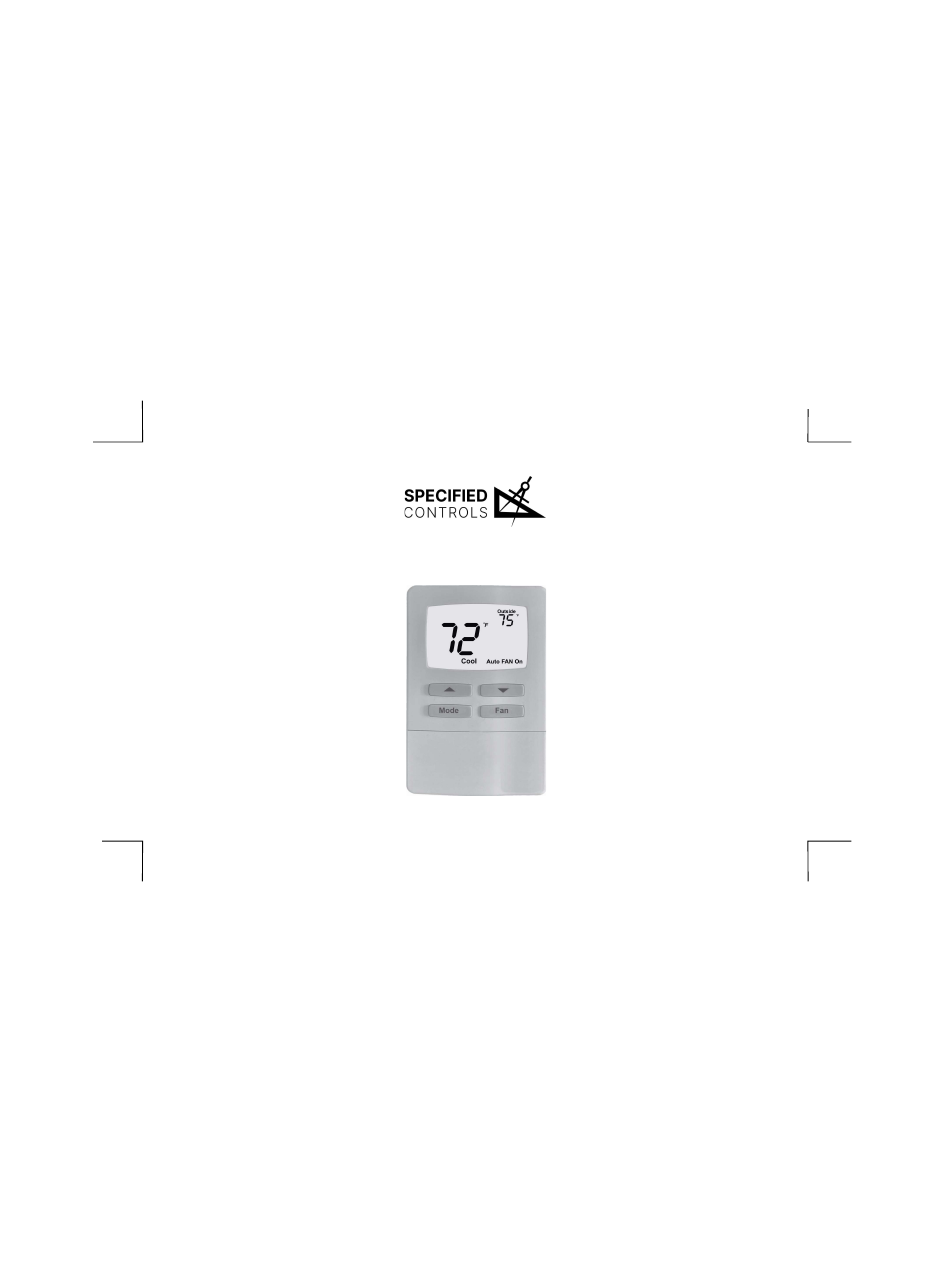

  • Page 1 SC-T32-VNP Atlas Vertical Non-programmable Thermostat User Manual...
  • Page 2 (BLANK)
  • Page 3 Due to ongoing product improvements, Specified Controls reserves the right to change the specifications of the 32-VNP Atlas thermostat or its components without notice.

  • Page 4: Thermostat Display

    THERMOSTAT DISPLAY To simplify use, the SC-T32-VNP only displays information relevant to the current mode of operation. When adjustments are required, the thermostat will display additional information or functional icons. Based on the thermostat configuration, some information and icons may not be displayed.

  • Page 5: Mode Configurations

    BASIC FUNCTIONS When in standard operating mode, the thermostat has four buttons that are used for all basic functions. MODE CONFIGURATIONS Your contractor can configure the thermostat with different mode selections based on your preference and the type of HVAC equipment. By pressing the Mode button, you have the following...
  • Page 6 BASIC FUNCTIONS MODES FOR HEAT PUMP AND DUAL FUEL EQUIPMENT Manual Changeover (Heat or Cool, *EHeat or OFF) Auto Changeover (Heat or Cool, Heat and Cool,*Eheat or OFF) Heat Only (Heat, *Eheat or OFF) Cool Only (Cool or OFF) Mode * When the thermostat is placed in the EHeat (Emergency Heat) mode, only the auxiliary heat source is used and the heat pump is locked out.

  • Page 7: Fan Selection

    BASIC FUNCTIONS FAN SELECTION Press the button to select Auto (Automatic) or (Continuous) fan mode. Auto mode, the fan operates with a heating or cooling call. If set to , the fan will run continuously. If the thermostat is turned while the fan is set to Mode the fan will continue to run until it is placed in the Auto...
  • Page 8 BASIC FUNCTIONS CHANGING THE HEAT OR COOL SET TEMPERATURE Manual Heat/Cool Mode In manual changeover mode, only the Heat Cool temperature setting will be displayed in the upper right hand corner of the display along with the room temperature. To change the setting, press either the UP or DOWN button.
  • Page 9 BASIC FUNCTIONS CHANGING THE HEAT OR COOL SET TEMPERATURE Auto Mode In auto changeover mode, the Heat Cool temperature settings alternate on the screen about every three seconds. To change the Heat Cool setting, press the UP or DOWN button. The displayed room temperature will be Mode replaced by the current Heat Set...

  • Page 10: Other Options And Features

    OTHER OPTIONS AND FEATURES COMPRESSOR TIME DELAY Your thermostat has a built in 4-minute time delay to prevent the air conditioner or heat pump from short cycling. When the short cycle timer is active and the thermostat is calling, the symbol next to Cool will blink on the display until the time delay has expired.

  • Page 11: Fresh Air Ventilation

    OTHER OPTIONS AND FEATURES FRESH AIR VENTILATION Your thermostat may have been setup to provide Fresh Air Ventilation. Fresh Air Ventilation is designed to improve residential indoor air quality by introducing fresh, outside air through a 2-wire, power open / spring closed motorized intake damper controlled by the thermostat.
  • Page 12 SC-05-1010-110122...
