ECH 44A

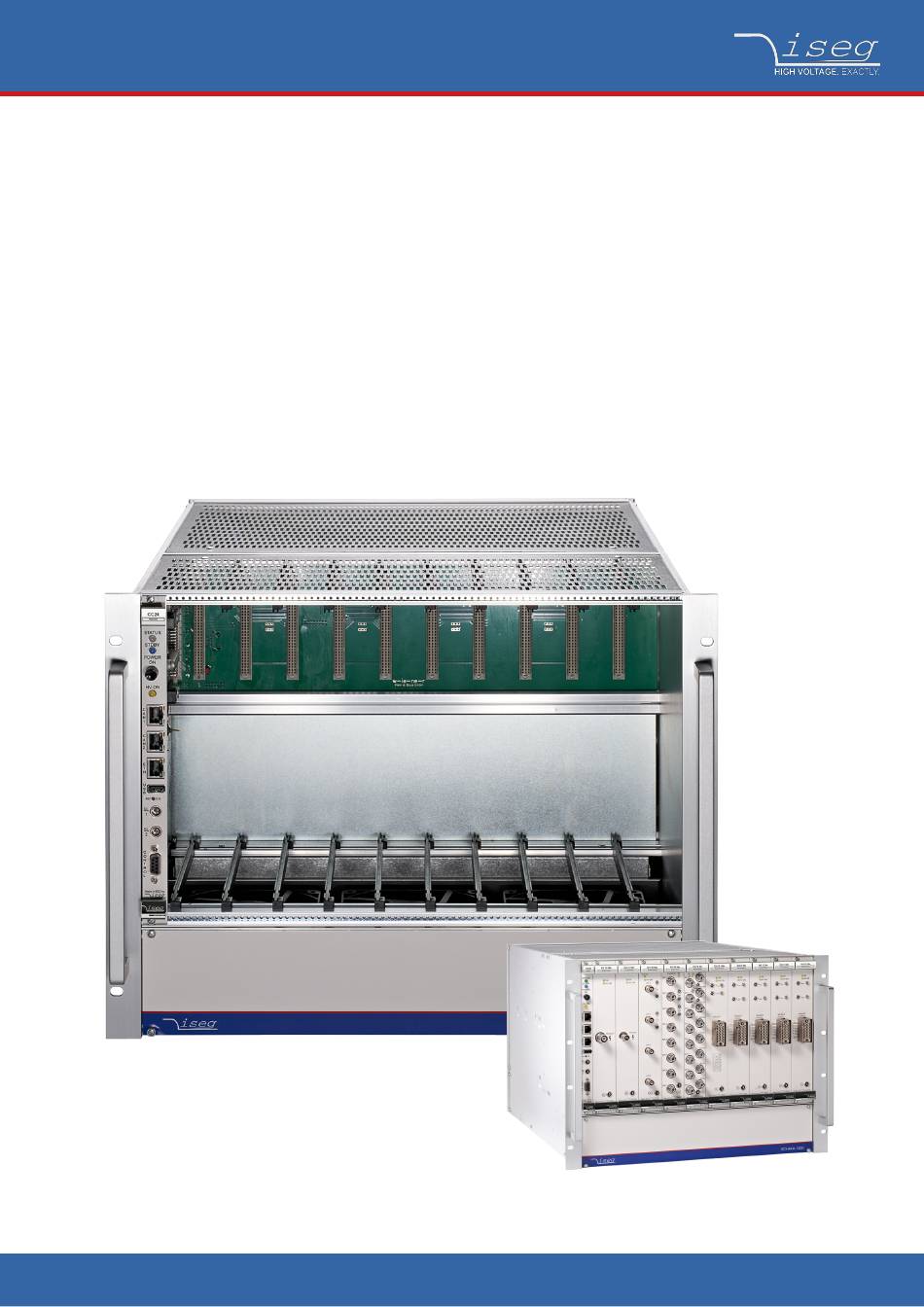

10 Slot 19" Crate for MMS - High Voltage Power Supply Modules
Up to 10 MMS-HV Power Supply Modules
•
Up to 3,000 W power
•
wide range of HV-modules
•
compatible to CC24 / CC23 Controller boards with integrated iCS Linux Server or
•
Wiener Mpod Controller
optional UPS
•
robust mechanics, module front and back reversible
•
www.iseg-hv.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for iseg ECH 44A
Summary of Contents for iseg ECH 44A
- Page 1 Technical documentation created on: 2023-04-06 ECH 44A 10 Slot 19” Crate for MMS - High Voltage Power Supply Modules Up to 10 MMS-HV Power Supply Modules • Up to 3,000 W power • wide range of HV-modules • compatible to CC24 / CC23 Controller boards with integrated iCS Linux Server or •...
-
Page 2: Document History
Copyright © 2023 by iseg Spezialelektronik GmbH / Germany. All Rights Reserved. This document is under copyright of iseg Spezialelektronik GmbH, Germany. It is forbidden to copy, extract parts, duplicate for any kind of publication without a written permission of iseg Spezialelektronik GmbH. This information has been prepared for assisting operation and maintenance personnel to enable efficient use. -
Page 3: Safety
Advices marked as “Caution!” describe actions to avoid possible damages to property. CAUTION! INFORMATION Advices marked as “Information” give important information. INFORMATION Read the manual. Attention high voltage! Important information. ECH44A – 10 Slot MMS Crate | Last modified on: 2023-04-05| www.iseg-hv.com 3/16... -
Page 4: Intended Use
You may only put the product into operation after it has been established that the high-voltage device complies with • the country-specific regulations, safety regulations and standards of the application. The high-voltage power supply unit may only be installed by qualified personnel. • ECH44A – 10 Slot MMS Crate | Last modified on: 2023-04-05| www.iseg-hv.com 4/16... -
Page 5: Important Safety Instructions
Do not operate the unit in an explosive atmosphere. WARNING! WARNING! Do not operate the unit if you suspect the unit or the connected equipment to be damaged. WARNING! ECH44A – 10 Slot MMS Crate | Last modified on: 2023-04-05| www.iseg-hv.com 5/16... - Page 6 Wear suitable personal protective equipment for all work on the product. • CAUTION! Use suitable transport and lifting equipment. • INFORMATION Please check the compatibility with the devices used. INFORMATION ECH44A – 10 Slot MMS Crate | Last modified on: 2023-04-05| www.iseg-hv.com 6/16...
-
Page 7: Table Of Contents
5.3 Replacing the battery fuse 6 Compatibility lists 7 Dimensional drawing 8 Accessories 9 Appendix 10 Warranty & service 11 Battery disposal 12 Disposal 13 Manufacturer´s contact ECH44A – 10 Slot MMS Crate | Last modified on: 2023-04-05| www.iseg-hv.com 7/16... -
Page 8: General Information
1 General information This crate device is used operating iseg High Voltage power supply modules in a 19“ rack compatbile case. It provides module slots for up to 10 MMS HV compatible High Voltage modules. Each module is connected to the backplane of the crate by a vendor specific 96 pin connector, which delivers module power supply and CAN based digital interface connection. -
Page 9: Operation And Maintenance
Begin with setting the crate into standby-mode, disconnect it from mains and wait a few minutes, now pull off the cap of the „POWER ON“-button and proceed with removing the four Phillips screws and detach the lid. ECH44A – 10 Slot MMS Crate | Last modified on: 2023-04-05| www.iseg-hv.com 9/16... -
Page 10: Forced Air Cooling
Needed tools are a Phillips- and an Allen-head ( size three) screw driver. Begin with removing the blue sticker on the module side of the crate, unscrew the four Phillips-head screws and detach the lid. Figure 3: remove cover to replace fan tray ECH44A – 10 Slot MMS Crate | Last modified on: 2023-04-05| www.iseg-hv.com 10/16... -
Page 11: Ups - Uninterruptible Power Supply (Optional)
The valve regulated lead acid batteries used inside the UPS-option power supply are free from any maintenance during their operational lifespan of 5 years. After this time the batteries need to be replaced, in this case, please contact the iseg support for further information. -
Page 12: Storage And Transport
4.1 Replacing the power supply for detaching the case lid. Insert the fuse firmly in the slot next to the mains connector labelled „ACCU-Fuse“. Figure 5: Figure 5 - replace battery fuse Fuse specification Automotive blade fuse, size MAXI, rated 32VDC, 50A, time delay ECH44A – 10 Slot MMS Crate | Last modified on: 2023-04-05| www.iseg-hv.com 12/16... -
Page 13: Compatibility Lists
Cost effective distributor module. CFG, unipolar EBS series Bipolar 4 quadrant module, CFG, bipolar, ESS series High power 2 quadrant module, sink and source, FG, unipolar Table 2 ECH44A – 10 Slot MMS Crate | Last modified on: 2023-04-05| www.iseg-hv.com 13/16... -
Page 14: Dimensional Drawing
7 Dimensional drawing Figure 6 ECH44A – 10 Slot MMS Crate | Last modified on: 2023-04-05| www.iseg-hv.com 14/16... -
Page 15: Accessories
8 Accessories CAUTION! Only use genuine iseg parts like power cables, CAN cables and terminators for stable and safe operation. CAUTION! ACCESSORY ITEM ORDER ITEM CODE Front panel (blind) RAL9001 6U/8HP Z514569 Table 3 9 Appendix For more information please use the following download links: This document http://download.iseg-hv.com/SYSTEMS/MMS/EHS/iseg_manual_ECH44A_en_2.0.pdf... -
Page 16: Warranty & Service
13 Manufacturer´s contact iseg Spezialelektronik GmbH Bautzner Landstr. 23 01454 Radeberg / OT Rossendorf GERMANY FON: +49 351 26996-0 | FAX: +49 351 26996-21 www.iseg-hv.com info@iseg-hv.de sales@iseg-hv.de ECH44A – 10 Slot MMS Crate | Last modified on: 2023-04-05| www.iseg-hv.com 16/16...
