Summary of Contents for Eureka Forbes Aquaguard AG Green Purechill 120PSS

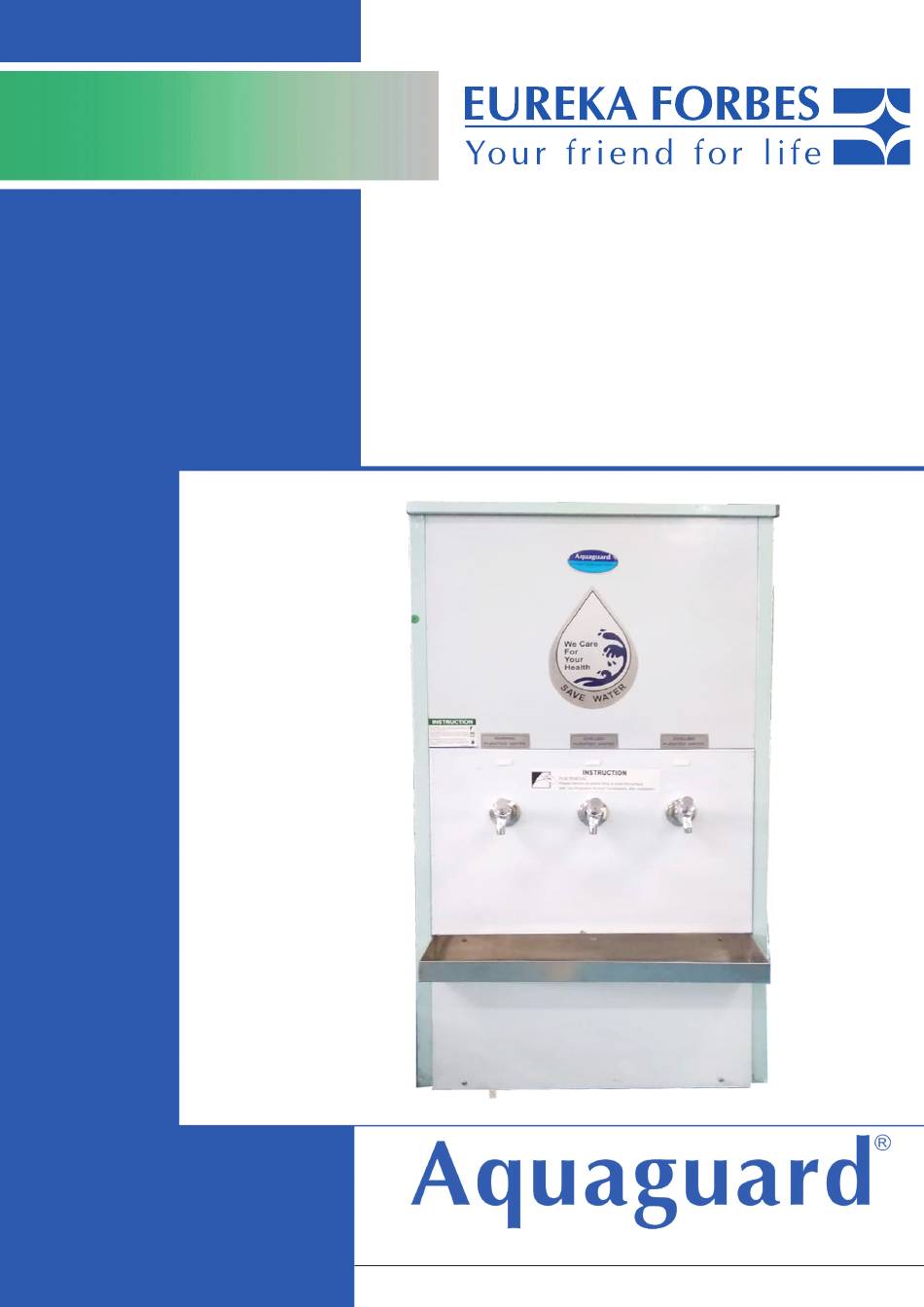

- Page 1 AG Green Purechill 120PSS RO+UV User Manual Water Purification Sysytems Read this manual carefully before using the water purifier...
- Page 2 Cum Water Purifier - The only product of its kind that assures you of Safe drinking water by converting chemically and micro biologically unpotable water to potable water. Welcome to Eureka Forbes (the marketers of Aquaguard®) family of health and hygiene brand. This manual will help you know your Aquaguard®Green Purechill 120PSS RO+UV Storage Cooler Cum Water Purifier better.
- Page 3 Particulate Filter: First Stage: Using polypropylene yarn wounded cartridge to remove physical impurities from the input water. Pre Carbon Block Filter: Second stage: Specially treated carbon block is used for adsorbing color, odor, organic impurities and chlorine. The special treatment given to carbon provides higher surface area for adsorption.
- Page 4 Guide Lines for Water Quality Parameters as per IS: 10500, 2012. Requirement Harmful Effects Produced Chemical Constituents (Desirable Limits) When Chemical Constituents Exceed (in water) IS:10500, 2012 Desirable Limits Formation of a white layer on the surface of Total Hardness as water supply structures and adverse effects CaCO3 mg/lit (max) on water usage for domestic purposes.
-
Page 5: Technical Specifications
TECHNICAL SPECIFICATIONS Description Aquaguard Green Purechill 120PSS Approximate External Dimensions(W X D X H) 750 X 570 X 1350 Operating Voltage 170-260V AC,1phase Power Supply(Input voltage) 24V DC & 48 V DC Input Current In Amps.(Max) 6 ±10% Power rating in Watts(Max) 850W ±... -
Page 6: Water Flow Diagram
Water Flow Diagram 20" PRE FILTER QG TUBE 2 UV LAMP QG TUBE 1 20" PRE CARBON HIGH PRESSURE SWITCH 10" MEMBRANE LIFE ENHANCER 10" SEDIMENT FILTER POST CARBON... -
Page 7: Wiring Diagram
Wiring Diagram... -
Page 8: Feature Benefits
FEATURE BENEFITS: Advanced operating mode- RO + UV Larger Membrane: Aquaguard® Green Purechill 120PSS has the dual advantage of high capacity Purification and storage: It is built with special membrane elements, which produce higher quantity of treated water faster and continuous. Also, a large stainless steel tank of 80 liters to store the same. - Page 9 Do’s Don’ts Demand services your unit once in four Don’t spill water on the panel. This may lead to months. electric shock and short circuit When the unit is not in use for more than two Don’t connect extra tubes to the outlet spout to days switch off the power and water supply to collect water.
-
Page 10: Flushing The Unit
Installation Procedure of Model: Aquaguard® Green Purechill 120PSS The AG Green Purechill 120PSS is a standalone with floor installation, Discuss with the customer and finalizes the place for install the unit. The preferable place is to position the product, somewhere near to the water connection, drain point and closure to the electrical socket. -
Page 11: Troubleshooting
Troubleshooting Remedial action / Problem Possible Cause Recommendation Check for the power availability Wait for the power supply Unit is not Low voltage Wait till voltage stabilize Switching ON Check for the power cord insertion Insert properly Power switch not switched ON Switch ON the power switch Chocked Filters Clean/replace filter... - Page 12 Note: The undernoted expression should have the following meaning. The ‘goods’ shall mean the goods described in the Purchase Agreement. The ‘customer’ shall mean the original purchaser under the Purchase Agreement. The ‘Company’ shall mean ‘Eureka Forbes Limited’.
- Page 14 B1/B2, Marathon Innova, Off Ganpatrao Kadam Marg, Lower Parel, Mumbai 400013. Tel No: 022-30449700; Fax No: 30434970...
