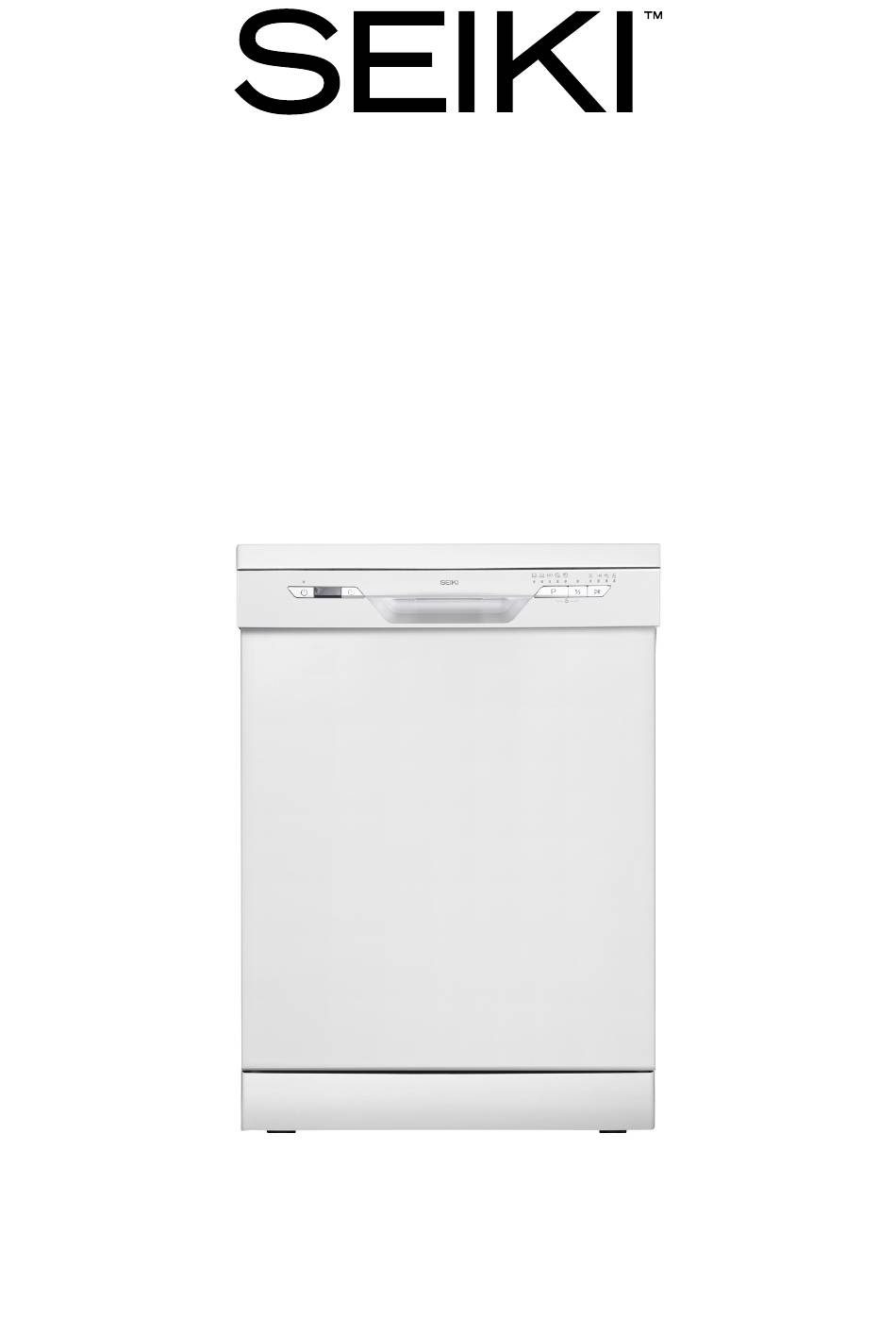

- Page 1 PLACE SETTINGS WHITE DISHWASHER SC-1400AU7DW INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Product Overview Getting Started Installation Area Positioning the Appliance Water Connection How to Connect Safety Supply Hose Drain Hose Connection Water Outlet and Drain Connection Electrical Connection Starting a Wash Program Instructions Loading the Dishwasher Guide Loading the Upper Basket Adjusting the Upper Basket Loading the Lower Basket Cutlery Basket... -
Page 4: General Safety
GENERAL SAFETY IMPORTANT INFORMATION Read this manual thoroughly before you start using the Dishwasher. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. Pay close attention to messages that follow this safety alert symbol or the words DANGER, WARNING... -
Page 5: Installation
GENERAL SAFETY INSTRUCTIONS (Cont.) To reduce risk of fire, electric shock or injury, always follow these basic precautions and accident prevention measures when using this appliance, including the below: NOTE: This appliance should be installed by an authorised technician else warranty will be void. -
Page 6: Usage Conditions And Restrictions
GENERAL SAFETY INSTRUCTIONS (Cont.) USAGE CONDITIONS AND RESTRICTIONS • Supervision over children is to ensure that they do not play with the appliance. Never allow them to use, play with or crawl inside the appliance. Cleaning and maintenance must not be done by children. •... -
Page 7: Cleaning And Maintenance
GENERAL SAFETY INSTRUCTIONS (Cont.) • This appliance is intended to be used in household and similar applications such as: – Staff kitchen areas in shops, offices and other working environments; – By clients in hotels, motels and other residential type environments; –... -
Page 8: Product Overview
PRODUCT OVERVIEW CONTROL PANEL 1. Power Press this button to turn on your dishwasher, the screen lights up. 2. Delay Press this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press on this button delays the start of washing by one hour. -
Page 9: Rinse Aid
PRODUCT OVERVIEW (Cont.) 7. Display To show the reminding time, delay time, error code etc. Intensive 8. Program Indicator For heaviest soiled crockery, such as pots, pans, casserole dishes and dishes that have been sitting with dried food on them for a while. Heavy For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans. - Page 10 PRODUCT OVERVIEW (Cont.)
-
Page 11: Getting Started
GETTING STARTED Before installing your appliance, read all safety instructions in this manual, especially the sections on electrical safety and installation. The minimum measurements needed for this dishwasher installation are as below:... -
Page 12: Installation Area
GETTING STARTED (Cont.) INSTALLATION AREA This installation position of the dishwasher should be near existing water inlet, drain hoses and power outlet. • Less than 5mm between the top of the dishwasher and cabinet and the outer door aligned to the cabinet. •... -
Page 13: Positioning The Appliance
GETTING STARTED (Cont.) POSITIONING THE APPLIANCE • This dishwasher is freestanding. Position it close to an existing water inlet and drain connection and be sure that there is a power supply nearby. • The back of the appliance should lean against the wall behind. The sides along any adjacent walls. -
Page 14: Water Connection
GETTING STARTED (Cont.) WATER CONNECTION Connect the water supply hose to a threaded 3/4”connector. During operation, the dishwasher will heat up the appliance to the required temperature so please be sure that the hose it not kinked or squashed and tightly fastened in place. If the hose is new or has not been used be sure to let the water run for a little bit to clear the hose of any impurities. -
Page 15: Drain Hose Connection
GETTING STARTED (Cont.) DRAIN HOSE CONNECTION The drain pipe hose can go into a drain pipe with a diameter of 40mm (Option B), or let it run into the sink. Make sure to avoid bending or crimping the hose (Option A). The top of the hose is not to exceed 1000mm. HOW TO DRAIN EXCESS WATER FROM HOSES If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly into the sink. -
Page 16: Electrical Connection
GETTING STARTED (Cont.) ELECTRICAL CONNECTION To connect the dishwasher, insert the plug into a correctly earthed power socket. If the socket is not appropriate for the plug, replace rather than use an adaptor (with a qualified electrician), the likes of such devices such as adaptors can cause overheating and burns. -
Page 17: Starting A Wash Program
STARTING A WASH PROGRAM LOADING THE DISHWASHER For best performance, follow bellow guidelines: 0.78 12.3 NOTE: Open the door slightly (50mm) to assist in drying after every wash. * This program was used for testing the appliance to the Australian Standard AS/NZS 2007.1 with 14 place settings, Rinse aid settings on 6 and the upper basket with the upper set of wheels on the rail support. -
Page 18: Loading The Dishwasher Guide
INSTRUCTIONS LOADING THE DISHWASHER For best performance, follow bellow guidelines: ATTENTION: BEFORE LOADING BASKETS Its not necessary to rinse all dishes before putting into dishwasher, though we suggest you scrape off any large amounts of leftover food and soften remnants of burnt food in pots and pans to ensure cleaning efficiency. -
Page 19: Loading The Upper Basket
INSTRUCTIONS (Cont.) LOADING THE UPPER BASKET The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans. (position the dishes and cookware so that they will not get moved by the spray of water) -
Page 20: Adjusting The Upper Basket
INSTRUCTIONS (Cont.) ADJUSTING THE UPPER BASKET The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different height on the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the roatation of the spray arms. -
Page 21: Loading The Lower Basket
INSTRUCTIONS (Cont.) LOADING THE LOWER BASKET Larger items such as pots, pans, lids, serving dishes and bowls should be placed into the lower basket of the dishwasher. (example of just pots below) -
Page 22: Cutlery Basket
INSTRUCTIONS (Cont.) CUTLERY BASKET All cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded seperately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture. -
Page 23: Detergents
INSTRUCTIONS (Cont.) DISHWASHER DETERGENT WARNING: • Only use detergent that are meant to be used for dishwashers • Only add the detergent just before starting the dishwasher so it doesnt become damp, if becomes damp this will stop it from dissolving properly. •... -
Page 24: Adding Detergents
INSTRUCTIONS (Cont.) ADDING DETERGENT Fill the detergent dispenser with detergent. The marking indicates the dos- ing levels as illustrated. Please observe the manufacturers dosing and storage recommendations as stated on the detergent packaging. Be sure to close the lid and press until it locks in place. If the dishes are heavily soiled, place an additional detergent dose in the pre-wash de- tergent chamber. -
Page 25: Rinse Aid Dispenser
INSTRUCTIONS (Cont.) RINSE AID DISPENSER The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. - Page 26 INSTRUCTIONS (Cont.) WHEN TO REFILL RINSE AID DISPENSER Fill the rinse aid dispenser when the light on the control panel comes on. When the rinse indicator is full, the whole indicator will be dark. As the rinse aid is used, the size of the dark dot decreases as indicated below.
-
Page 27: Starting The Dishwasher
INSTRUCTIONS (Cont.) STARTING THE DISHWASHER • Open the dishwasher and draw out the lower and upper basket and load in the dishes. Push them back in. • When you finished loading the dishes, open up the detergent dispenser and add in your detergent. Refer to pages 22 & 23 for more information of adding detergent and Rinse aid dispensers. -
Page 28: Faqs
FAQs Problem Possible Cause The fuse is blown Replace the fuse or reset circuit breaker. or circuit breaker Remove any other appliances sharing the same circuit with the dishwasher. is activated The dishwasher Make sure the dishwasher is powered on The power does not run and the door is closed securely. -
Page 29: Useful Information
USEFUL INFORMATION WARNING • If the dishwasher overflows, make sure to turn off the main water supply before making a service call. • If there is water in the base, be sure to remove it before restarting the dishwasher. CLEANING AND MAINTENANCE The filter prevents remnants of food or other objects from getting inside the pump. - Page 30 USEFUL INFORMATION (Cont.) REMOVING THE FILTER SYSTEM To remove the filter assmebly to clean please follow the below instructions: STEP 1 Turn the filter anti-clockwise direction. STEP 2 Lift the filter up NOTES By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.
-
Page 31: Error Codes
ERROR CODES... -
Page 32: Specifications
SPECIFICATIONS Height 845mm Width 598mm Depth 600mm Depth (door open) 1175mm Standard Cleaning Cycle Water Pressure 0.04-1.0 MPa Power Supply 220-240V ~ 50Hz Capacity 14 Place settings Rated Power 1760-2100W Weights Net: 40.5kg / Gross: 46kg... -
Page 36: Customer Helpline
CUSTOMER HELPLINE: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
