Related Manuals for Seiki SC-1200AU6DS
Summary of Contents for Seiki SC-1200AU6DS

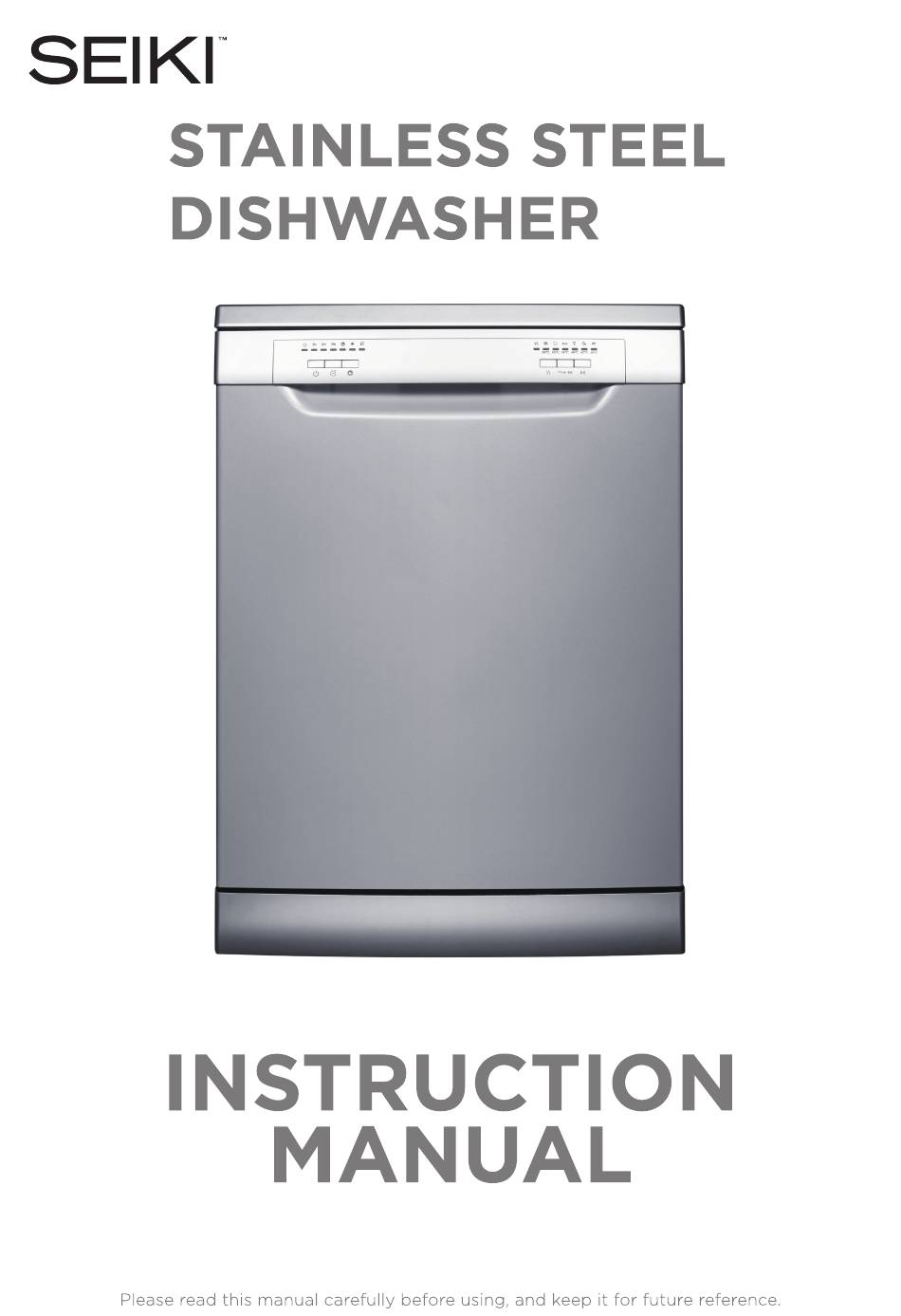

- Page 1 MODEL:SC-1200AU6DS...
-
Page 3: Table Of Contents
CONTENTS General Safety Product Overview Getting Started Starting a Wash Program Instructions Loading the upper basket Loading the lower basket Detergents Adding Detergents Rinse Aid Dispenser Starting the Dishwasher FAQs Useful Information Specifications Customer Helpline... -
Page 4: General Safety
GENERAL SAFETY IMPORTANT INFORMATION Read this manual thoroughly before you start using the Stainless Steel Dishwasher. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. Pay close attention to messages that follow this safety alert symbol or the words DANGER, WARNING... - Page 5 GENERAL SAFETY INSTRUCTIONS (Cont.) To reduce risk of fire, electric shock or injury, always follow these basic precautions and accident prevention measures when using this appliance, including the below: NOTE: This appliance should be installed by an authorised technician else warranty will be void.
- Page 6 GENERAL SAFETY INSTRUCTIONS (Cont.) USAGE CONDITIONS AND RESTRICTIONS • Supervision over children is to ensure that they do not play with the appliance. Never allow them to use, play with or crawl inside the appliance. Cleaning and maintenance must not be done by children. •...
- Page 7 GENERAL SAFETY INSTRUCTIONS (Cont.) CLEANING AND MAINTENANCE • Service: Never try to repair, modify or replace any part of the appliance, unless this manual says you can do so. All other servicing is to be done by a qualified technician, or contact our support centre on 1300 296 699 for advice.
-
Page 8: Product Overview
PRODUCT OVERVIEW 1. Upper Basked 2. Inner Pipe 3. Lower Basket 4. Dispenser 5. Cup Shelf 6. Spray Arms 7. Filter Assembly 8. Inlet Pipe Connector 9. Drain Pipe... - Page 9 PRODUCT OVERVIEW (Cont.) CONTROL PANEL 4 5 6 7 8 1 2 3 9 10 11 On/Off Button: Turn on/off the power supply Delay button: Press button to add delay time. Extra Drying Button: Extra Drying function to only be used with Intensive, Heavy, ECO, Glass and 90min functions.
-
Page 10: Getting Started
GETTING STARTED Before installing your appliance, read all safety instructions in this manual, especially the sections on electrical safety and installation. The minimum measurements needed for this dishwasher installation are as below: MINIMUM MEASUREMENTS Width: 598mm Depth: 610mm Height: 845mm Depth: 1175mm (open Door) POSITIONING THE APPLIANCE... - Page 11 GETTING STARTED (Cont.) DRAIN HOSE CONNECTION The drain pipe hose can go into a drain pipe with a diameter of 40mm (Option B), or let it run into the sink. Make sure to avoid bending or crimping the hose (Option A). The top of the hose is not to exceed 1000mm. ELECTRICAL CONNECTION To connect the dishwasher, insert the plug into a correctly earthed power socket.
- Page 12 GETTING STARTED (Cont.) EARTHING This dishwasher must be earthed. In the unlikely event of malfunction or breakdown, earthing will reduce risk of electric shock by providing a path of least resistance for the electric current. WARNING: • Make sure the outlet is properly earthed to the ground. Please consult a qualified electrician or a service representitive if you are not sure.
-
Page 14: Instructions
INSTRUCTIONS LOADING THE DISHWASHER For best performance, follow bellow guidelines: ATTENTION: BEFORE LOADING BASKETS Its not necessary to rinse all dishes before putting into dishwasher, though we suggest you scrape off any large amounts of leftover food and soften remnants of burnt food in pots and pans to ensure cleaning efficiency. -
Page 15: Loading The Upper Basket
INSTRUCTIONS (Cont.) LOADING THE UPPER BASKET The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans. (position the dishes and cookware so that they will not get moved by the spray of water) ADJUSTING THE UPPER BASKET The height of the upper basket can be adjusted in order to create more space for... -
Page 16: Loading The Lower Basket
INSTRUCTIONS (Cont.) LOADING THE LOWER BASKET Larger items such as pots, pans, lids, serving dishes and bowls should be placed into the lower basket of the dishwasher. (example of just pots below) FOLDING THE SPIKES OF LOWER BASKET For better stackins of pots and pans, fold down all the spikes which are used to stacking plates and bowls down. - Page 17 INSTRUCTIONS (Cont.) CUTLERY BASKET All cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded seperately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.
-
Page 18: Detergents
INSTRUCTIONS (Cont.) DISHWASHER DETERGENT WARNING: • Only use detergent that are meant to be used for dishwashers • Only add the detergent just before starting the dishwasher so it doesnt become damp, if becomes damp this will stop it from dissolving properly. •... -
Page 19: Adding Detergents
INSTRUCTIONS (Cont.) ADDING DETERGENT A: For main wash detergent B: For Pre-Wash detergent Fill the detergent dispenser with detergent. The marking indicates the dosing levels as illustrated on the right Please observe the manufacturers dosing and storage recommendations as stated on the detergent packaging. -
Page 20: Rinse Aid Dispenser
INSTRUCTIONS (Cont.) RINSE AID DISPENSER The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. - Page 21 INSTRUCTIONS (Cont.) WHEN TO REFILL RINSE AID DISPENSER Fill the rinse aid dispenser when the light on the control panel comes on. When the rinse indicator is full, the whole indicator will be dark. As the rinse aid is used, the size of the dark dot decreases as indicated below.
-
Page 22: Starting The Dishwasher
INSTRUCTIONS (Cont.) STARTING THE DISHWASHER • Open the dishwasher and draw out the lower and upper basket and load in the dishes. Push them back in. • When you finished loading the dishes, open up the detergent dispenser and add in your detergent. Refer to pages 19 & 20 for more information of adding detergent and Rinse aid dispensers. -
Page 23: Faqs
FAQs Problem Possible Cause The fuse is blown Replace the fuse or reset circuit breaker. or circuit breaker Remove any other appliances sharing the same circuit with the dishwasher. is activated Make sure the dishwasher is powered on The power The dishwasher and the door is closed securely. -
Page 24: Useful Information
USEFUL INFORMATION ERROR CODES When some malfunctions occur, the appliance will display error codes to warn you: CODES MEANINGS CAUSES Tap is not open enough, or water The Rapid Light will Flicker Longer inlet time intake is restricted. Not reaching the The Rapid and 90min light flicker Malfunction in the heating element. - Page 25 USEFUL INFORMATION (Cont.) REMOVING THE FILTER SYSTEM To remove the filter assmebly to clean please follow the below instructions: STEP 1 Turn the filter anti-clockwise direction. STEP 2 Lift the filter up NOTES By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.
-
Page 27: Specifications
SPECIFICATIONS Height 845mm Width 598mm Depth 610mm Water Pressure 0.04-1.0 MPa Power Supply 220-240V ~ 50Hz Capacity 12 Place settings Rated Power 1760-2100W... -
Page 28: Customer Helpline
CUSTOMER HELPLINE: 1300 296 699 DISTRIBUTED BY: Ayonz Pty Ltd...
