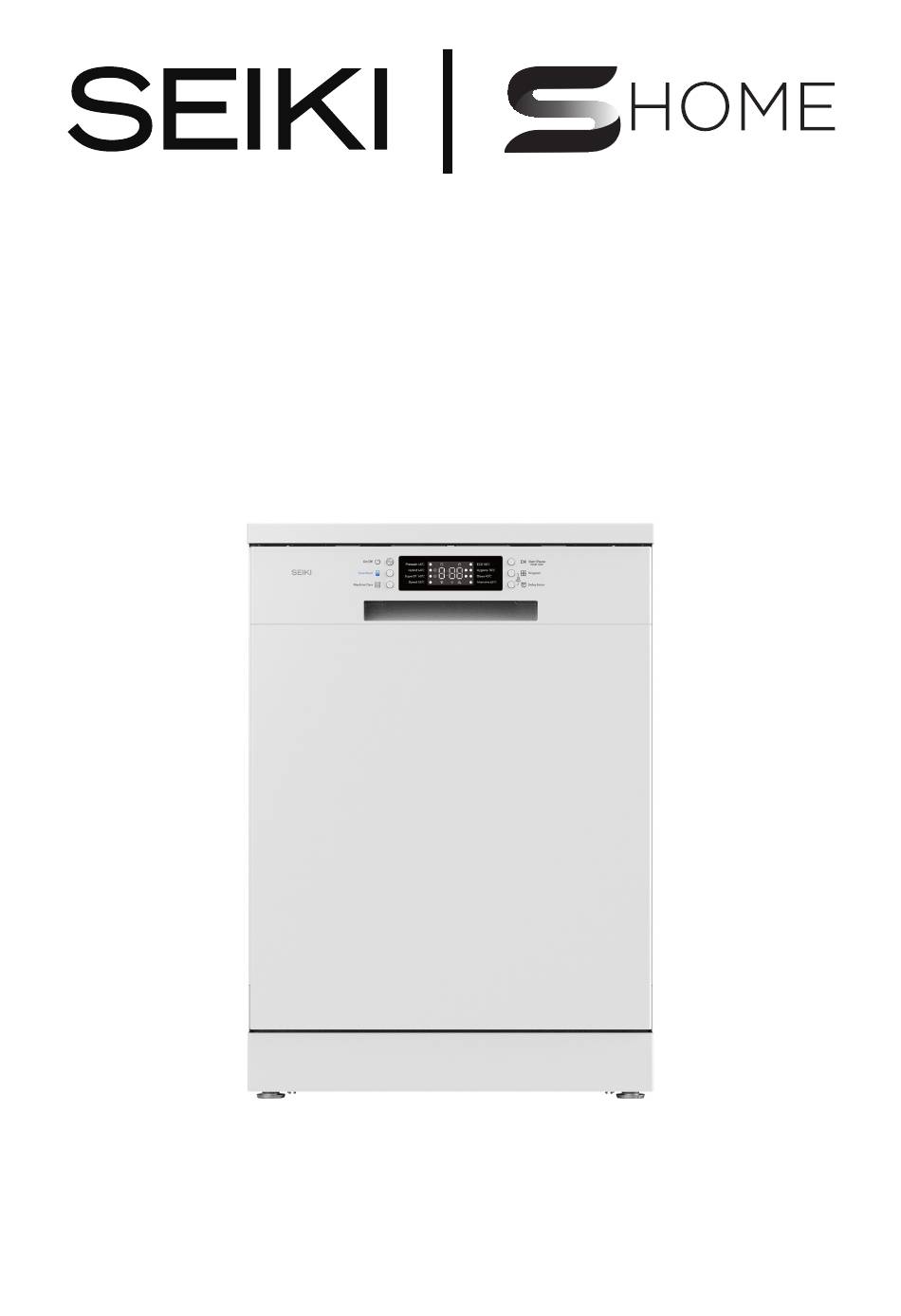

- Page 1 PLACE SETTINGS DISHWASHER SC-1300AU6DWW INSTRUCTION MANUAL Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
CONTENTS General Safety Product Overview Getting Started Installation Operations Cleaning and Maintenance FAQs Specifications... -
Page 4: General Safety
GENERAL SAFETY IMPORTANT INFORMATION Read this manual thoroughly before you start using the appliance. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. Pay close attention to messages that follow this safety alert symbol or the words DANGER, WARNING... - Page 5 GENERAL SAFETY INSTRUCTIONS (Cont.) To reduce risk of fire, electric shock or injury, always follow these basic precautions and accident prevention measures when using this appliance, including the below: NOTE: This appliance should be installed by an authorized technician else warranty will be void.
-
Page 6: Usage Conditions And Restrictions
GENERAL SAFETY INSTRUCTIONS (Cont.) USAGE CONDITIONS AND RESTRICTIONS • Supervision over children is to ensure that they do not play with the appliance. Never allow them to use, play with or crawl inside the appliance. Cleaning and maintenance must not be done by children. •... - Page 7 GENERAL SAFETY INSTRUCTIONS (Cont.) • Only load items that are suitable for the appliance. • Do not place any open source flames on the appliance such as candles, etc.. • The door/window will be hot after a long cycle, be sure not to touch the window and to keep children away from the appliance.
- Page 8 GENERAL SAFETY INSTRUCTIONS (Cont.) CAUTION • Do not use the appliance if industrial chemicals have been used for cleaning. • Do not place any objects on the top of this machine. • If this machine will be idle for an extended period of time, such as during holidays, please turn off the faucet and unplug this machine.
-
Page 9: Product Overview
PRODUCT OVERVIEW EXTERIOR TRIM PARTS Control Panel Door Kick-proof plate Top Cover Side Plate Feets... - Page 10 PRODUCT OVERVIEW (Cont.) INTERIOR TRIM PARTS Top wash impeller Cultery rack Middle spray arm Upper dish rack Lower spray arm Lower dish rack Filter assembly Detergent and Rinse aid dispenser NOTE • Place the cutlery basket in the lower dish rack. For best performance, please install along the middle, as shown in the picture of interior trim parts.
-
Page 11: Control Panel
PRODUCT OVERVIEW (Cont.) CONTROL PANEL ON/OFF: Turn ON/OFF the power supply. Press this button to cut off the power supply ater the program is completed. START/PAUSE: Press this button to start the operation. Press this button to pause during operation, and press it again to continue the operation. Long Press for 3 seconds to cancel the program and drain water. - Page 12 PRODUCT OVERVIEW (Cont.) DISPLAY: Rinse Aid Indicator: this icon will light up when the liquid level of rinse aid is low, it will turn off automatically when the rinse aid is replenished or the liquid level is set to 0. Digital display: the digital display on the control panel shows the estimated program time.
- Page 13 PRODUCT OVERVIEW (Cont.) NOTE: The actual water consumption and energy consumption may vary with the dirt level and water hardness. The actual running time and program time displayed may vary with the options selected for the program, dirt level, water temperature and water hardness. Therefore, the display time and the actual running time may be different.
-
Page 14: Getting Started
GETTING STARTED Before installing your appliance, read all safety instructions in this manual, especially the sections on electrical safety and installation. UNPACKING • When unpacking the appliance, be sure to keep all the packaging materials until you have made sure your new appliance is undamaged and in good working order. -
Page 15: Installation
INSTALLATION SELECT A PROPER POSITION Freestanding installation mode: Please install the dishwasher on a flat and stable ground. if the dishwasher in a cornerm at least 50mm between the dishwasher and the adjacent wall shall be reserved to ensure that there is enough space for the dishwasher to open and close, and reinforce it with wooden strips. - Page 16 INSTALLATION (Cont.) Open the door and grasp the front opening on the top of the main frame and liner to move or lift the dishwaster. CAUTION Do not push the dishwasher door with your knees. Do not use the handle to pull or lift the dishwasher, so as not to damage the door and hinge.
- Page 17 INSTALLATION (Cont.) Level the Dishwasher Please level the dishwasher to avoid unnecessary leakage and poor washing effect. Check whether the dishwasher has been leveled properly after installation. If the dishwasher shakes when the diagonal presses the top cover of the dishwasher, the foot should be adjusted again.
- Page 18 INSTALLATION (Cont.) The door tilts to the right 1. Unscrew (counterclockwise) the left rear foot and level it. 2.Check the opening action of the door and repeat it if necessary until the door can be opened and closed normally. The door tilts to the left 1.
- Page 19 INSTALLATION (Cont.) Connect the Drain Hose If the end of the drain hose does not match the kitchen drain pipe, please use a heat-resistant and detergent-resistant drain extension (not provided). These are available from local pipeline suppliers. Connect the sewer pipe Please check the sewer pipe during the first installation.
- Page 20 INSTALLATION (Cont.) Connect to Water Supply Pipe and Power Supply Connect the water inlet pipe to the faucet The gasket shall be connected to the water inlet. Please use the new inlet pipe attached. In order to ensure the quality, all dishwashers have been injected with water for testing before leaving the factory.
- Page 21 INSTALLATION (Cont.) Connect the power supply Please connect this machine to a grounding socket according to the current electrical wiring specifications and protect it with a circuit breaker or time-delay fuse of at least 15 Amps. The two-wire system with grounding must be adopted for wiring.
-
Page 22: Operations
OPERATION Loading • Load only items suitable for the dishwasher. • Remove solid, charred debris from the dishes before loading them into the dishwasher. • Place items with deep tray at an angle to help water loss and speed up the drying process. - Page 23 OPERATION (Cont.) Before Use Soft water system This machine is equipped with a soft water system, which can lower the hardness of inlet water. This system softens the water supply to a certain extent, so that tableware can be washed as per quality requirements. If the soft water system is not required, this machine can be used without dishwashing salt, but the hardness level needs to be set to H0 so that the corresponding icon will not be on all the time.
- Page 24 OPERATION (Cont.) Dishwasher salt - This is to help prevent limescale build up The dishwasher’s salt chamber must be filled before starting the washing program. In case of insufficient salt, the salt icon on the display will light up unless the hardness level is set to HO.
- Page 25 OPERATION (Cont.) Add detergent to the dispenser The amount of detergent required depends on the size and dirt level of the tableware. Please put the detergent into the detergent compartment before starting any program. 1. Press the button on the dispenser cover to open it.
- Page 26 OPERATION (Cont.) Warning: Dishwasher detergents and rinse aid contain the same chemicals as all other household detergents. Therefore, they must be kept out of the reach of children. Use dishwasher detergent only. Improper detergent may cause the dishwasher to fill with foam during operation. Too much foam may mitigate the washing performance and may cause the dishwasher to leak.
- Page 27 OPERATION (Cont.) Add rinse aid in the dispenser When more rinse aid is required, the rinse aid indicator will appear on the display. It is suggested to use rinse aid to remove water stains on the dishes and improve drying performance. 1.
- Page 28 OPERATION (Cont.) Adjust the rinse aid dispenser The dispenser has 9 adjustment levels. The rinse aid dispenser has been set to level d3 when it leaves factory. You may check and change this setting using the buttons on the control panel. 1.
- Page 29 OPERATION (Cont.) Loading into the Dishwasher Please always follow the following instructions in order to achieve effective washing effect. Remove large food particles, including bones, from dishes before loading. Soak the dishes containing burnt food before putting them into the dishwasher. Put deep pots or plates upside down.
- Page 30 OPERATION (Cont.) Loading into the Lower Dish Rack Instructions for loading into the lower dish rack: • The plate should be upright and face the center of the rack, and the pot, pan and large plate must be inverted. • Load dishes, plates, soup bowls and the like between the fork teeth. •...
- Page 31 OPERATION (Cont.) Upper dish rack with adjustable height The height adjustment mechanism of the upper dish rack is specially designed for you. By adjusting the height, you can create a large space in the lower or upper part of the machine according to your needs, or lower the height when your rack is empty or loaded.
- Page 32 OPERATION (Cont.) Loading into Cutlery Rack The cutlery rack is best suited for flatware and most cooking or serving utensils. The separators on the cutlery racks help keep flatware separated to avoid damage and improve cleaning. Note: For best cleaning performance, place flatware in the silverware baskets. Heavily soiled utensils or items with baked on foods should be placed in the middle rack or spoon basket for best performance.
-
Page 33: Cleaning And Maintenance
CLEANING AND MAINTENANCE In order to maintain performance and prevent failures, it is important to regularly check the outside and inside of the dishwasher (including the filter and spray arm). WARNING: • Do not use benzene or thinner when cleaning the outside and inside of the dishwasher to prevent fire or explosion. -
Page 34: External Cleaning
CLEANING AND MAINTENANCE (Cont.) EXTERNAL CLEANING In most cases, the external surface of the dishwasher can be cleaned with a soft wet cloth or sponge and then wiped dry with a soft cloth. If the dishwasher is provided with the stainless steel housing, you may use stainless steel cleaner. CAUTION Any edible oil splashed on the external surface of this product should be wiped out immediately. -
Page 35: Filter Cleaning
CLEANING AND MAINTENANCE (Cont.) FILTER CLEANING 1. Remove the lower dish rack and fix the bottom spray arm. 2. Rotate the filter cup counterclockwise and take out the filter assembly consisting of the filter cup 1, metal filter screen 2 and micro filter 3. After removing the filter assembly, check and remove all foreign matter (if necessary). - Page 36 CLEANING AND MAINTENANCE (Cont.) SPRAY ARM CLEANING If the spray arm hole is blocked by any food residue, the tableware may not be cleaned well due to improper water spray. It is suggested that the spray arm be cleaned every two weeks. Lower spray arm cleaning 1.
-
Page 37: Faqs
FAQs Please be sure to contact our call centre on info@ayonz.com if you cannot identify the issue with the below information. Q: Does this dishwasher need rinse aid? A: It is strongly suggested that rinse aid be used to enhance the drying performance of the dishwasher. -
Page 38: Self-Inspection
FAQs SELF-INSPECTION This machine is equipped with an automatic error monitoring system to detect and diagnose problems in the early stage. If your dishwasher does not work properly or does not work at all, please check it according to the following instructions before seeking service. - Page 39 FAQs...
- Page 40 FAQs...
- Page 41 FAQs...
-
Page 42: Specifications
SPECIFICATIONS Power Supply 220-240V ~ 50Hz Rated Power 1920W Dimensions 598 x 598 x 845 mm (W x D x H) Net: 42 kg Weight Gross: 46 kg... - Page 44 CUSTOMER HELPLINE: info@ayonz.com 02 8279 8606 DISTRIBUTED BY: Ayonz Pty Ltd...
