Honeywell F100F Manual

APPLICATION
The F100F Media Air Cleaner captures a significant amount of
the air-borne particles from the air circulated through the unit.
SPECIFICATIONS
IMPORTANT
The specifications in this publication do not include
normal manufacturing tolerances; therefore, an
individual unit may not exactly match the listed
specifications. This product is tested and calibrated
under closely controlled conditions, and some minor
differences in performance can be expected if those
conditions are changed.
Model:

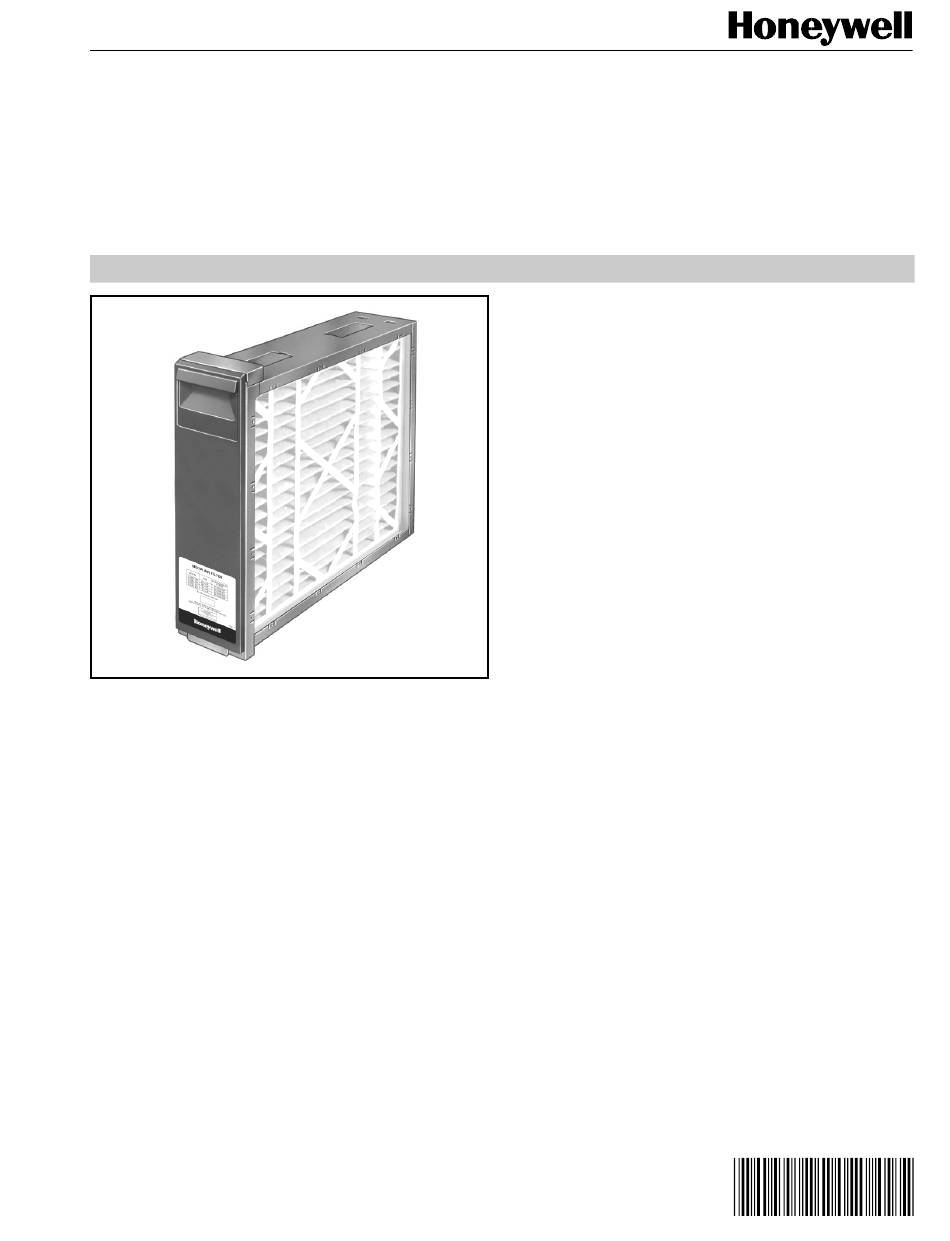

F100F Media Air Cleaner includes cabinet, access door and
pleated media filter, and W8600A AirWatch™ Indicator.
Application:
Use with gas, oil, and electric forced warm air furnaces and
with compressor cooling. Can be used with heat pumps if
filter is changed regularly to prevent excessive pressure drop.
Not recommended for applications where pressure drop may
be critical.
® U.S. Registered Trademark
Copyright © 2000 Honeywell • All Rights Reserved
Media Air Cleaner
FEATURES
• High efficiency media filter captures particles as small
as 0.3 micron.
• Efficiency and arrestance ratings based on the
American Society of Heating, Refrigerating and Air
Conditioning Engineers Standard 52.2-1999.
• Applicable to all gas, oil, and electric forced warm air
furnaces and to compressor cooling up to 5 tons.
• Mounts in the return air duct.
• Cabinet can support weight of residential furnace and
evaporator coil.
• Requires no electrical connections.
• Mounts in any position.
• Requires no maintenance except periodic media filter
replacement.
• Quick and easy media filter replacement.
• Later upgrade to higher performing media or
electronic air cleaner is easy.
Efficiency:
Efficiency Ratings: Based on American Society of Heating,
Refrigerating and Air-Conditioning Engineers Standard
52.2-1999.
Initial Efficiency: 15 percent (0.3 micron particles).
Minimum Efficiency Reporting Valve (MERV): 8 at 492 fpm.
Filter Media:
Pleated for greater media capacity.
Capacity And Pressure Drop:
See Fig 2.
Initial Pressure Drop: 0.177 in. wc at 492 fpm.
Temperature Rating:
-40° to +140°F (-40° to +60°C).
Dimensions:
See Fig. 1.
F100F
PRODUCT DATA
68-0239
