Custom Dynamics CD-SXS-FTS-AW Installation Instructions

Part Number: CD-SXS-FTS-AW

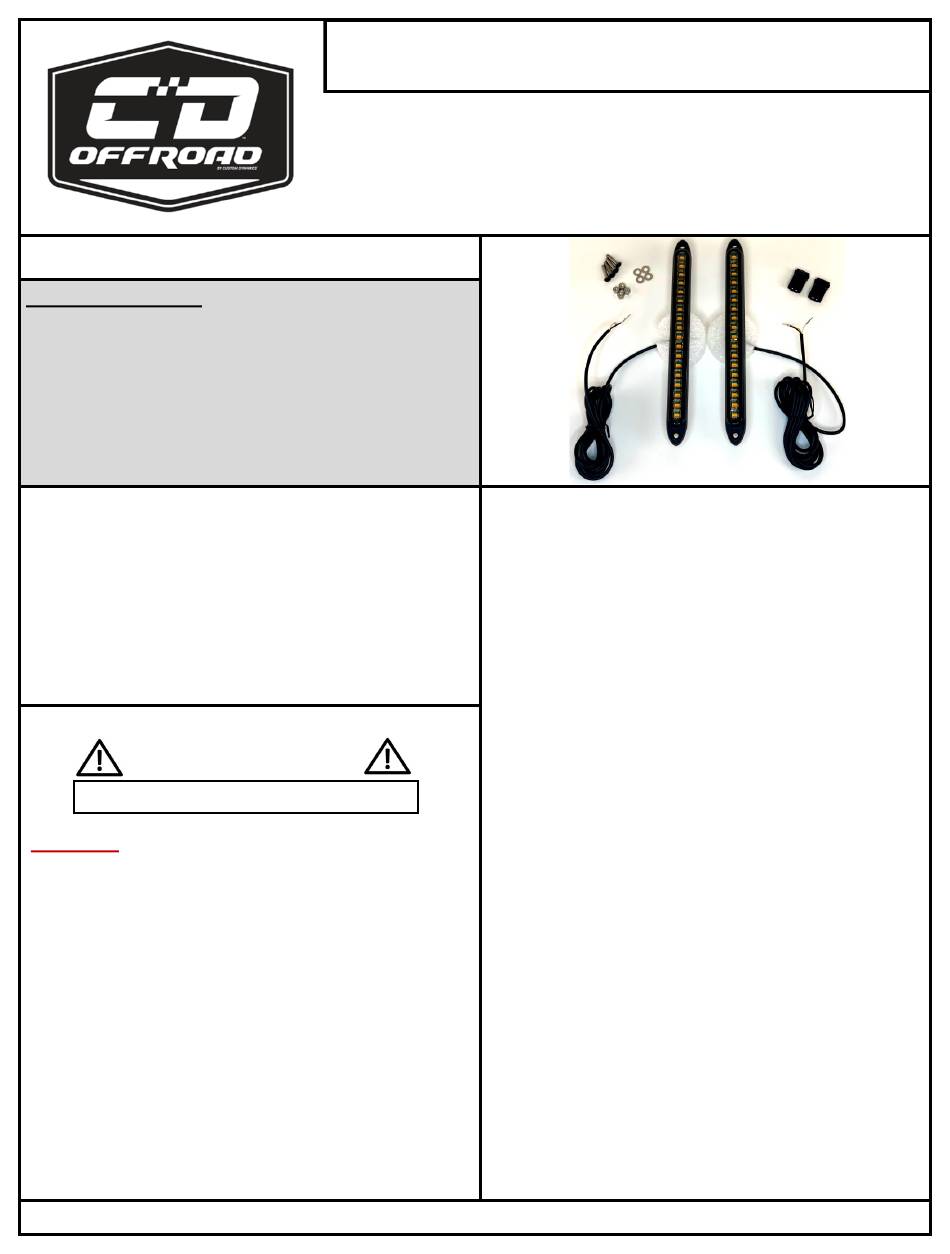

Package Contents:
- Amber / White LED Assembly (2)
- Instructions (1)
- Female JAE Connectors (2)
- M4-0.7 x 18 Button Head Cap Screw (4)
- M4 Flat Washer (4)
- M4 Nylon Lock nut (4)
Fitment: Compatible with 12vdc systems with a
negative ground.
Note: Unit is plug and play with Custom Dynam-
ics® Auto-Cancel Turn Signal Module (2050-
0449/CD-ATC-6, sold separately) and the SXS
Turn Signal Switch (2106-0582/SXS-TS-SW-1,
sold separately)
ATTENTION
Please read all Information below before Installation
Warning: Disconnect the negative battery cable
from battery; refer to owner's manual. Failure do
to so may result in electrical shock, injury, or fire.
Secure negative battery cable away from posi-
tive side of battery and all other positive voltage
sources on vehicle.
Questions? Call us at: 1 (800) 382-1388
Custom Dynamics® SXS Amber/White LED Turn Signals
We thank you for purchasing the Custom Dynamics® SXS Amber/White LED
Turn Signals! Our products utilize the latest technology and high quality compo-
nents to ensure you the most reliable service. We offer one of the best warranty
programs in the industry and we back our products with excellent customer sup-
port, if you have questions before or during installation of this product please call
Custom Dynamics® at 1(800) 382-1388.
Installation:
1. Select desired surface area where the LED Turn
2. Use a 3/8" drill bit to drill a hole for the wire in
3. Use an 11/64" drill bit to drill two holes for each
4. Clean the entire surface with denature alcohol
5. Route the wire from the LED Turn Signal
6. Remove the red 3M backing from one edge of
7. Use supplied hardware to fasten the LED Turn
8. Install the provided Female JAE connectors onto
M-TH 8:30AM-5:30PM / FR 9:30AM-5:30PM EST
Installation Instructions
Signals will be mounted. Test fit in desired
mounting location. Use a grease pencil to mark
the two mounting holes and a hole for the wire.
the mounting surface.
M4 Fastener on the mounting surface.
and allow to dry.
through the mounting surface.
the LED Turn Signal and stick to the mounting
surface. Remove more of the red backing in
small increments and press firmly on bar to en-
sure adhesion to surface until entire LED Turn
Signal is attached and aligned with the mounting
holes.
Signal and tighten.
the pre-pinned wires from each LED Turn Signal
by pushing the pins into the connector ports ac-
cording to Photo 1 on Page 2. Pins should snap
in place and not pull back out of connector when
installed correctly.
01/2024
