Topring HIFLO Instruction Manual

Instruction manual
Water/oil separator
HIFLO
Product No 57.500

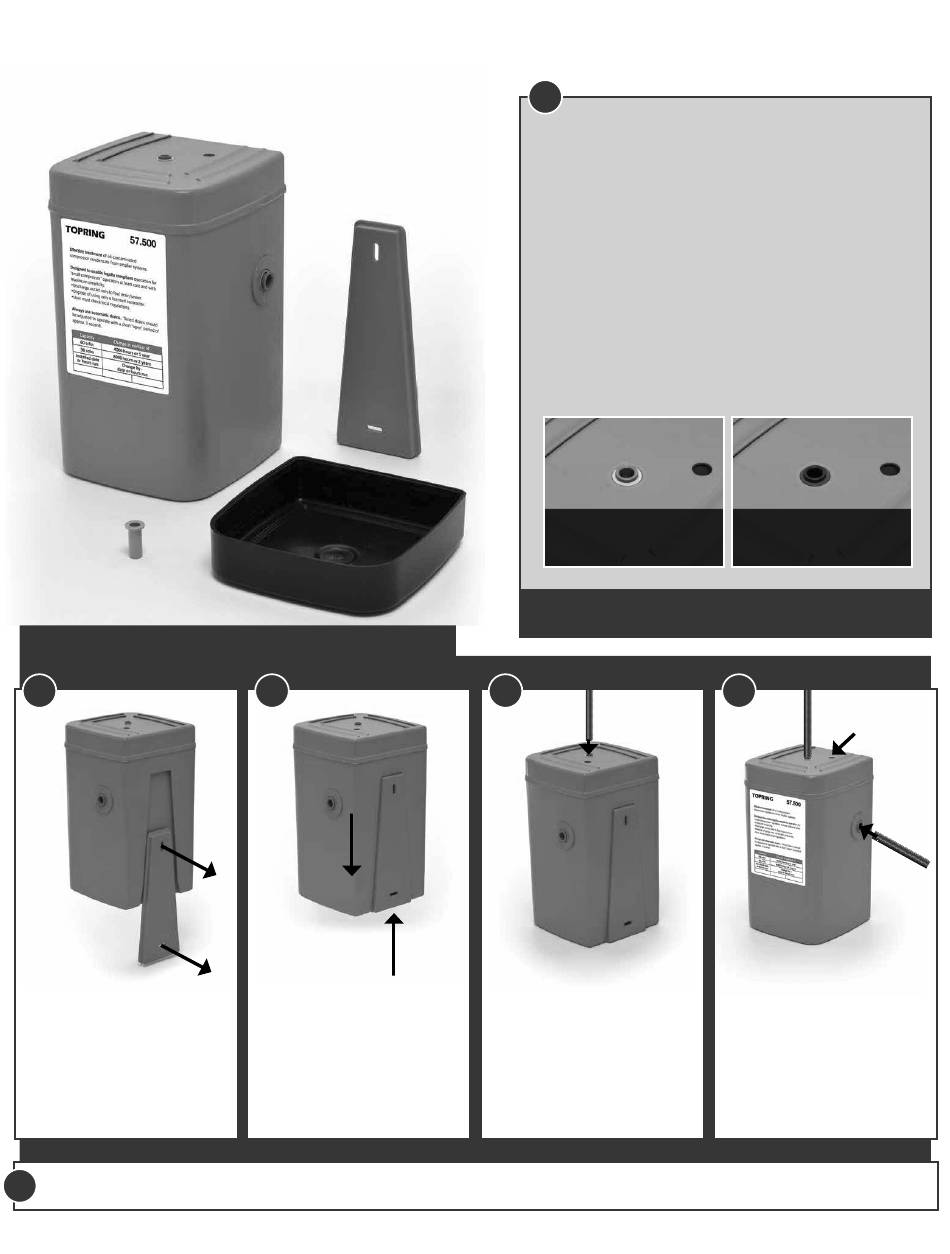

INsTAllATION
2
Fix the wall plate vertically on a
suitable wall or the compressor
cabinet. Isolate the compressor
and look out for cables and pipes
when drilling.
IMPORTANT - Always use an automatic drain. Set timers to short open periods of one second or less.
6
NEVER use manual drains which could flood the separator, forcing partially treated or untreated condensate to be discharged.
3
Slide the SEP 60 ST on to the
plate, with the venting flutes
at the top.
1
Before starting assembly, please read the
following:
57.500 is a single-use product. It should be replaced
as directed to ensure its vital environmental and
legally protective functions are performed correctly.
The 57.500 has been designed to clean condensate
from a compressor system of up to 60 cfm (1.7 m³/
min) to better than 10 ppm oil-in-water; suitable for
discharge to a sanitary sewer.
NOTE: This is generally well below the accepted
level, but it is the users responsibility to ensure
compliance with local regulations.
Grey ports:
fits imperial sizes
Please check that you have the
correct unit for your fittings before installation.
4
inlet
Connect all drain points, insert
tube into push fitting in the inlet
(top).
• 1/4" tube for imperial
• 6 mm tube for metric
TOPRING
Black ports:
fits metric sizes
5
anti-siphon vent
(do NOT block)
outlet
Connect tube into outlet fitting
and feed to drain (side). Ensure
a steady fall from outlet point to
drain with no kinks or tight
bends.
• 3/8" tube for imperial
• 10 mm tube for metric
96.763_instructions_2018_03_06
