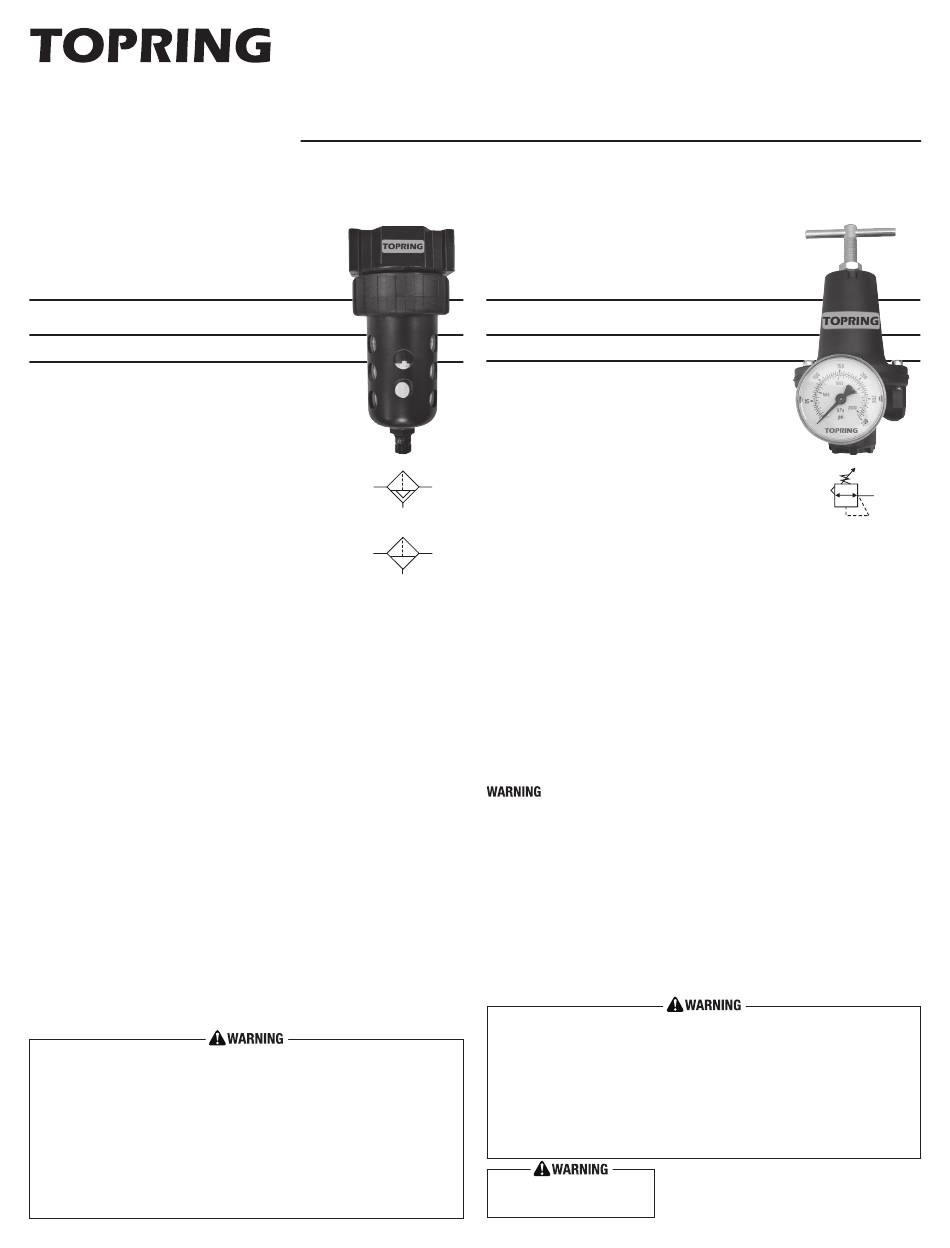

Topring 52 Series Instruction Manual

HIFLO
2
Filter - 1/4 - 3/8 - 1/2
InstructIon manual
SPeCiFiCAtiONS
Port Size: 1/4 (F) NPT • 3/8 (F) NPT • 1/2 (F) NPT
Maximum Airflow at 100 PSI:
1/4: 53 SCFM
3/8: 80 SCFM
1/2: 85 SCFM
Maximum Working Pressure:
Polycarbonate Bowl: 150 PSI
Zinc Bowl: 250 PSI
Working Temperature:
Polycarbonate Bowl: 0 °C to 52 °C
Zinc Bowl: 0 °C to 80 °C
Filtration: Standard 40 micron / Optional 5 micron
Drain: Manual or internal automatic drain
Bowl Capacity: 130.1 ml
Maintenance
To maintain maximum filtering efficiency and to avoid excessive pressure drop, the filter bowl and
element must be kept clean. On standard filters, open drain cock (turn counter clockwise) periodically
and drain off any bowl accumulation before it reaches lever of lower baffle. Bowl drainage is automatic
in the automatic drain model, however, manual draining can also be done by removing the bowl.
A visible coating of dirt or condensate on the filter element surface or an excessive pressure drop
indicates cleaning is necessary.
cleaning
To clean, it is not necessary to remove filter from the line, disassembly is simple and does not require
tools. Before disassembly, shut off air supply and depressurize filter. Clean all parts except plastic bowl
and/or sight glass with alcohol and blow out filter body before reassembly. Wash filter element in alcohol
and blow out from the inside. Polycarbonate bowls or metal bowls with sight glass must be cleaned with
household soap only.
autoMatic drain
Auto drain filters are equipped with a float actuated device which automatically ejects liquid contaminates.
The auto drain can be installed by simply removing the flange ring and bowl and then the bowl drain cock.
Insert the auto drain in place of the removed drain cock and reassemble the unit in reverse order.
The automatic drain mechanism is operated by the pressure drop created as air flow is initiated or as
the air line is depressurized. In order to drain properly, there must be sufficient dynamic pressure drop
to trigger the drain mechanism. The automatic drain will not function with minimal flow and pressure
variations or on constant flow applications.
to AvoiD unpreDictAble systeM behAviour thAt cAn cAuse personAl injury AnD property DAMAge:
• Disconnect electrical supply (when necessary) before installation, servicing or conversion.
• Disconnect media source and depressurize all media lines connected to this product before installation, servicing, or conversion.
• Operate within the manufacturer' s specified pressure, temperature and other conditions listed in these instructions.
• Medium must be moisture-free if ambient temperature is below freezing.
• Service according to procedures listed in these instructions.
• Installation, service, and conversion of these products must be performed by knowledgeable personnel who understand how
pneumatic products are to be applied.
• After installation, servicing, or conversion, media and electrical supplies (when necessary) should be connected and the product
tested for proper function and leakage. if audible leakage is present, or the product does not operate properly, do not put into use.
• Warnings and specifications on the product should not be covered by paint, etc. If masking is not possible,
contact TOPRING for replacement labels.
Page 1 of 2
SerieS 52
HIFLO HIFLO
/
1/4 - 3/8 - 1/2 / Filter - reGUlAtOr - lUBriCAtOr
iNStAllAtiON Install units in pipeline so air will flow in direction indicated on bodies. Install as near as possible
:
to equipment serviced, vertical to pipeline.
Automatic Drain
Manual Drain
2
HIFLO
reGUlAtOr - 1/4 - 3/8 - 1/2
InstructIon manual
SPeCiFiCAtiONS
Port Size: 1/4 (F) NPT • 3/8 (F) NPT • 1/2 (F) NPT
Maximum Airflow at 100 PSI:
1/4: 100 SCFM
3/8: 110 SCFM
1/2: 150 SCFM
Maximum Working Pressure: 300 PSI
Working Temperature: 4 °C to 52 °C
Pressure Gauge Port Size: 1/4 (F) NPT
Pressure adjustMent
Clockwise turning of the adjusting screw increases the reduced or regulated pressure.
With relieving-type regulators the reduced pressure follows the adjustment of the screw,
with non-relieving regulators, adjustment for lower pressure will not be obtained until the pressure
system is "bled-off" or until air flow starts.
Maintenance
If the air supply is kept clean, the regulator should provide long periods of uninterrupted service.
Erratic regulator operation or loss of regulation is most always due to dirt in the disc area and cleaning is
in order.
cleaning
Depressurize regulator, remove bottom plug, spring and disc. Clean parts with denatured alcohol,
wipe off seat and blow out body with compressed air. Reassemble parts as a unit and screw into
regulator; before tightening bottom plug make sure disc is in center hole in body.
Polycarbonate bowls and sight domes, being transparent and tough, are ideal for use with Filters and
Lubricators. They are suitable for use in normal industrial environments, but should not be located
in areas where they could be subjected to direct sunlight, an impact blow, nor temperatures outside
of the rated range. As with most plastics, some chemicals can cause damage. Polycarbonate bowls
and sight domes should not be exposed to chlorinated hydro-carbons, ketones, esters and certain
alcohols. They should not be used in air systems where compressors are lubricated with fire-resistant
fluids such as phosphate ester and di-ester types. Metal bowls are recommended where ambient and/
or media conditions are not compatible with polycarbonate bowls. Metal bowls resist the action of
most such solvents, but should not be used where strong acids or bases are present or in salt laden
atmospheres. Consult the factory for specific recommendations where these conditions exist. tO CleAN
POlYCArBONAte BOWlS USe MilD SOAP AND WAter ONlY! DO NOt use cleansing agents such as
acetone, benzene, carbon tetrachloride, gasoline, toluene, etc., which are damaging to this plastic.
Metal bowl guards are recommended for all applications.
FAilure or iMproper selection or iMproper
use oF the proDucts AnD/or systeMs DescribeD
herein or relAteD iteMs cAn cAuse DeAth,
personAl injury AnD property DAMAge.
this document and other information from the company,
its subsidiaries and authorized distributors provide product
and/or system options for further investigation by users
having technical expertise. it is important that you analyze all
aspects of your application, including consequences of any
failure and review the information concerning the product or
systems in the current product catalog.
product rupture can cause serious injury.
Do not connect regulator to bottled gas.
Do not exceed maximum primary pressure rating.
Due to the variety of operating conditions and applications for
these products or systems, the user, through his own analysis
and testing, is solely responsible for making the final selection
of the products and systems and assuring that all performance,
safety, and warning requirements of the application are met.
the products described herein, including without limitation,
product features, specifications, designs, availability and
pricing, are subject to change by the company and its
subsidiaries at any time without notice.
