Topring HIFLO 57.502 Instruction Manual

Water/oil separators

Advertisement

Available languages

Available languages

Quick Links

Instruction manual
Water/oil separators
HIFLO
Product no 57.502 / 57.504 / 57.506
service indicator - assemBly and attachment
(b)
(a)
Insert the boss on the reverse of
i
the mount (c) into the pre-drilled
hole in the separator lid.
Peel backing from timestrip (a)
ii
and attach to the plastic card (b)
within the dotted lines.
Flex the card, passing the ends
iii
through the slots on the top
surface of the mount.
(c)
To activate, press firmly on
the timestrip label at the point
indicated.
After a few minutes, a red line
will appear, to indicate 'time in
service' up to 12 months.
A replacement card and
timestrip will be supplied with
each service kit.
1

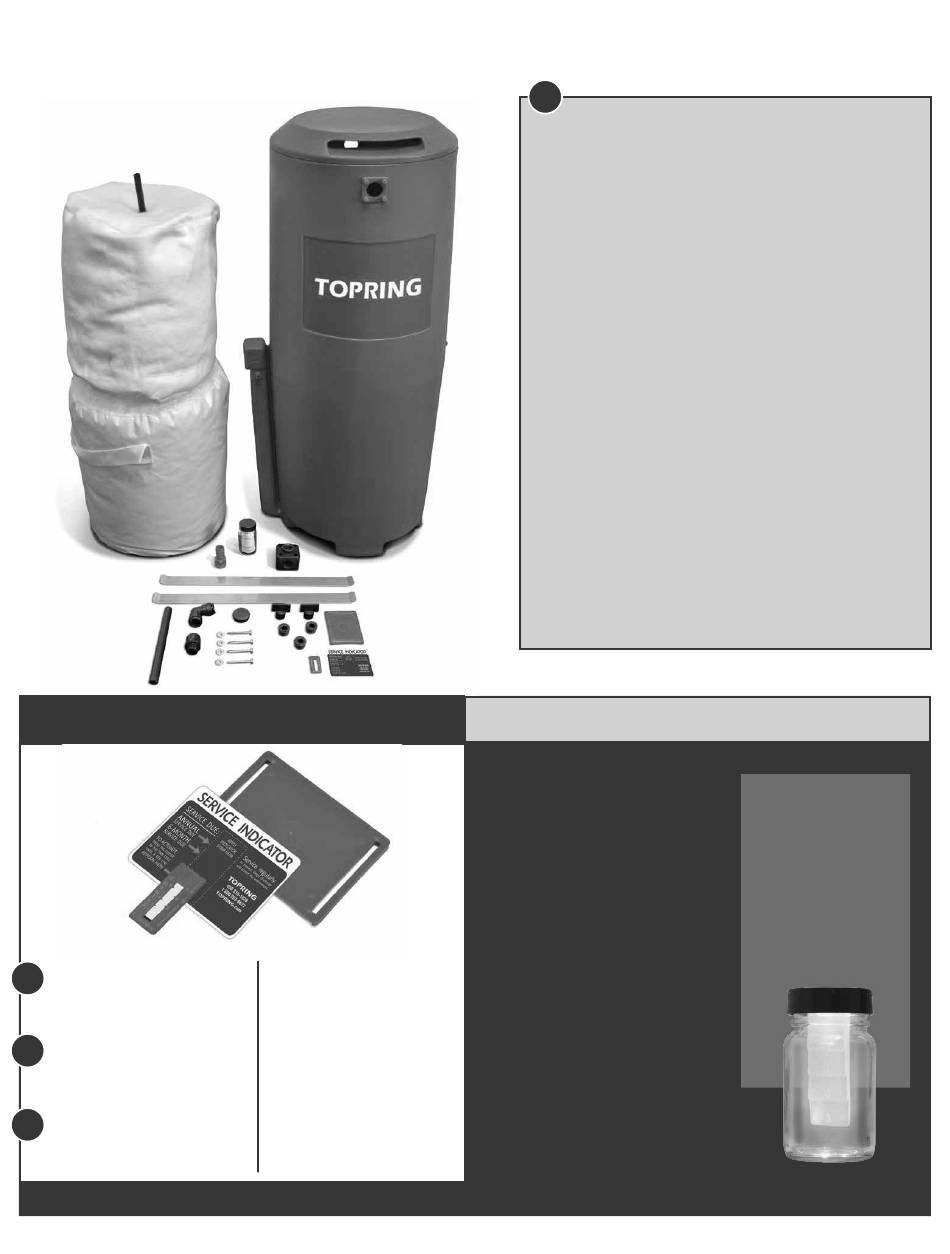

Before starting assembly, please check
contents as follow:
1 white felt bag filter with black tube
1 filter
1 test bottle
1 cleaner tower 57.502 / 57.504 / 57.506
1 drilled lid
metal retaining springs
service interval kit containing:
molded plastic mount + screw
printed card
self-adhesive timestrip
Fitting kit containing:
1 straight adaptor 15 mm x 1/2"
1 blanking plug - large
1 elbow 15 mm
1 assembled porting block
3 porting block small blanking plugs
4 screws 4.8 x 45 mm and washers
2 grab taps
1 blue nylon adaptor
1 black tube
general installation notes
Please ensure a steady slope in the
pipe run from the outlet point to the
sanitary drain.
When used in conjunction with timed
solenoid drain, set drain "open"
duration to minimum setting
(1-2 seconds).
When used in conjunction with
motorized ball valve or high capacity
drain a de-pressurization chamber
must be installed between drain and
TOPRING unit.
Never discharge condensate to a
storm drain or to suface water;
always connect to a sanitary drain
or sewer.
Remember that it's the user's
responsibility to check with the local
authority as to the permissible
discharges in their area.
TOPRING
testing quality
replace filters before
outlet cloudiness
exceeds the ppm limit
for your region.
test outlet quality
weekly using kit
provided.
96.764_instructions_2018_03_06
