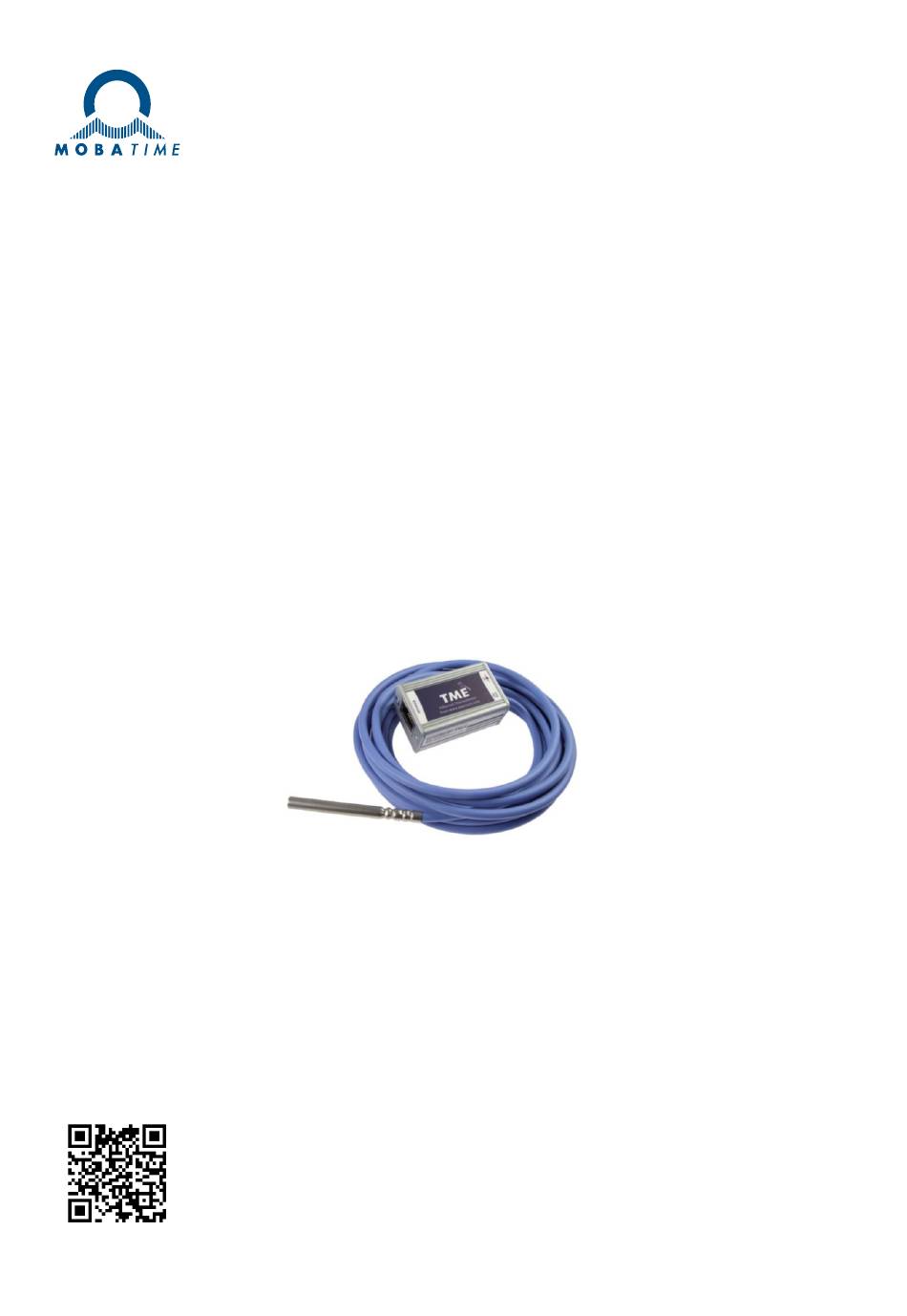

- Page 1 User Manual TP LAN Temperature Sensor Scan the QR code or enter following URL to get the latest version: https://docs.mobatime.cloud/TP-LAN BE-801434.1-TP LAN | 2025-04-25...
-
Page 3: Important Notes
The information in this document is subject to change without notice. The latest version of this document is available for download at https://docs.mobatime.cloud/TP-LAN . This User Manual has been composed with the utmost care to explain all the details to ensure a safe and stable operation of this product. -
Page 4: Table Of Contents
....4.2.1. TP LAN with hole located under Ethernet connector .... -
Page 5: Safety
TP LAN – Temperature Sensor | User Manual Safety 1 Safety Read the safety instructions carefully and follow all the instructions. This ensures safe and reliable operation of this device. 1.1. Instructions and Symbols Symbols used throughout this document and their meaning are as follows: A note or important information. -
Page 6: Installation
Safety TP LAN – Temperature Sensor | User Manual Never open the housing of this product, for it poses mortal danger from electric shock or may even cause a fire. Keep packaging such as plastic films away from children. There is the risk of suffocation of misused. -
Page 7: Maintenance And Cleaning
TP LAN – Temperature Sensor | User Manual Safety 1.5. Maintenance and Cleaning • If the product and/or the connecting cable is damaged, do not touch it: there is mortal danger from electric shock! First, turn off the power supply to all poles of the product. Verify the absence of voltage using an appropriate meter. -
Page 8: Introduction
Data transfer by TCP/IP protocols (10/100 Ethernet.) • 5 VDC power supply (adapter included) or PoE. • Temperature sensor in a metal rod, within protection degree IP 68, with 3 m long cable connection (for TP LAN PoE the cable is detachable). BE-801434.1-TP LAN | 2025... -
Page 9: Technical Data
TP LAN – Temperature Sensor | User Manual Technical Data 3 Technical Data 3.1. Basic Data Parameter TP LAN TP LAN PoE Scope of Measures Temperatures -55 °C to +125 °C Measuring Accuracy ±0.5 °C within the range of -10 °C to +85 °C; otherwise ±2 °C Power Supply 4–6 VDC (max. -
Page 10: Sensor Settings
4.2. Reset Use the following procedure to reset the device to its factory settings: 4.2.1. TP LAN with hole located under Ethernet connector Disconnect power. Press and hold the button in the hole under the Ethernet connector. -
Page 11: Digital Clock Settings
TP LAN – Temperature Sensor | User Manual Digital Clock Settings 5 Digital Clock Settings The digital clock must have its own IP address set manually or via DHCP. 5.1. Setting IP Address of Sensor to Clocks SEN1 Enter the digital clock main menu, navigate to the submenu and proceed to enter. - Page 12 Digital Clock Settings TP LAN – Temperature Sensor | User Manual Third digit will flash. You can then set the decimal value in range 0–9. Confirm your selection to save end exit edit mode. SEN2 SEN3 SEN4 If you have more than 1 temperature sensor, repeat this procedure in (respectively in ) menu.
