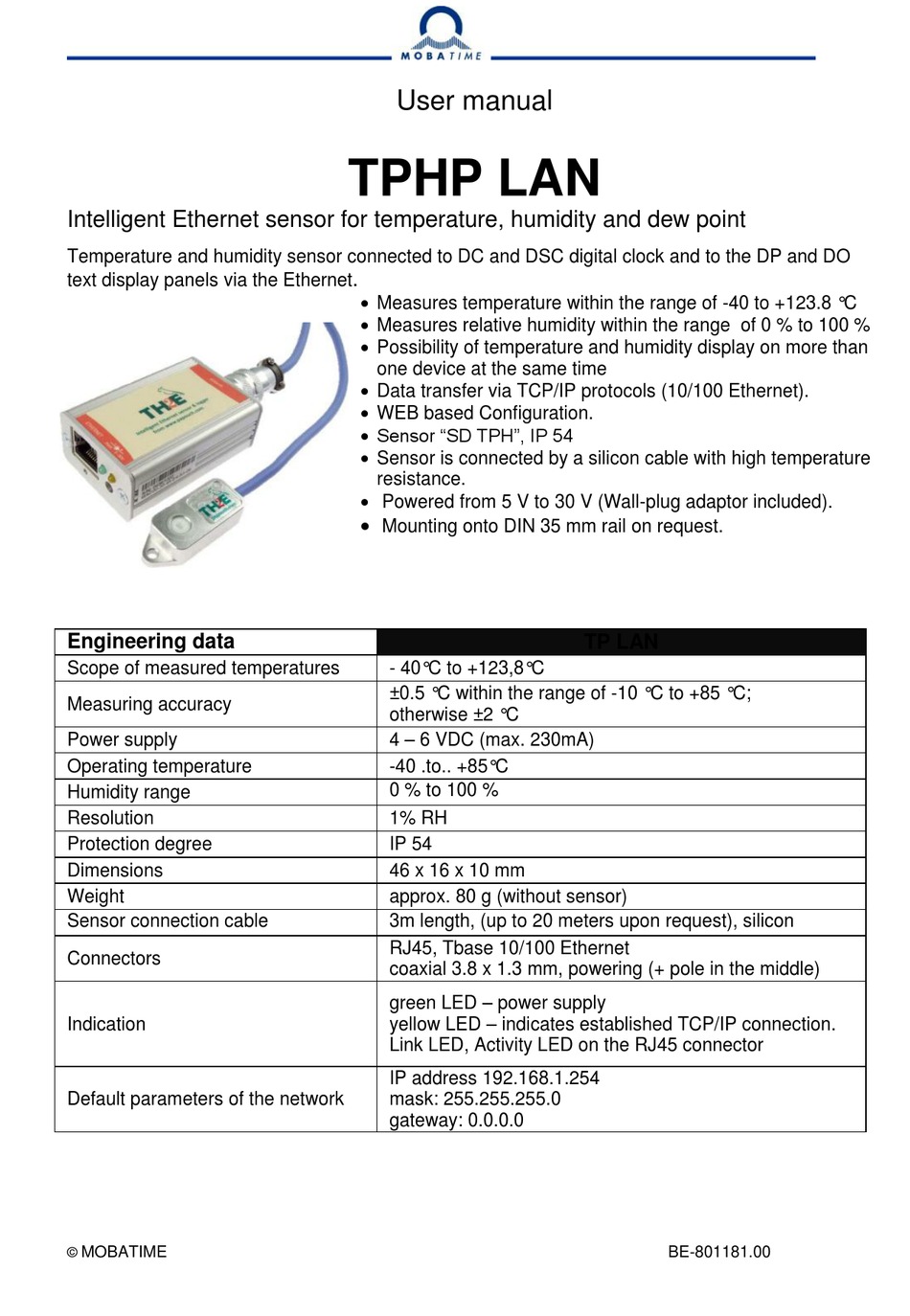

Mobatime TPHP LAN User Manual

Intelligent Ethernet sensor for temperature, humidity and dew point
Temperature and humidity sensor connected to DC and DSC digital clock and to the DP and DO
text display panels via the Ethernet
Engineering data
Scope of measured temperatures
Measuring accuracy
Power supply
Operating temperature
Humidity range
Resolution
Protection degree
Dimensions
Weight
Sensor connection cable
Connectors
Indication
Default parameters of the network
MOBATIME
©
User manual
TPHP LAN
.
 Measures temperature within the range of -40 to +123.8 °C
 Measures relative humidity within the range of 0 % to 100 %
 Possibility of temperature and humidity display on more than
one device at the same time
 Data transfer via TCP/IP protocols (10/100 Ethernet).
 WEB based Configuration.
 Sensor "SD TPH", IP 54
 Sensor is connected by a silicon cable with high temperature
resistance.
 Powered from 5 V to 30 V (Wall-plug adaptor included).

Mounting onto DIN 35 mm rail on request.
- 40°C to +123,8°C
±0.5 °C within the range of -10 °C to +85 °C;
otherwise ±2 °C
4 – 6 VDC (max. 230mA)
-40 .to.. +85°C
0 % to 100 %
1% RH
IP 54
46 x 16 x 10 mm
approx. 80 g (without sensor)
3m length, (up to 20 meters upon request), silicon
RJ45, Tbase 10/100 Ethernet
coaxial 3.8 x 1.3 mm, powering (+ pole in the middle)
green LED – power supply
yellow LED – indicates established TCP/IP connection.
Link LED, Activity LED on the RJ45 connector
IP address 192.168.1.254
mask: 255.255.255.0
gateway: 0.0.0.0
