Service Instructions
124840E Rev. 3
April 2024

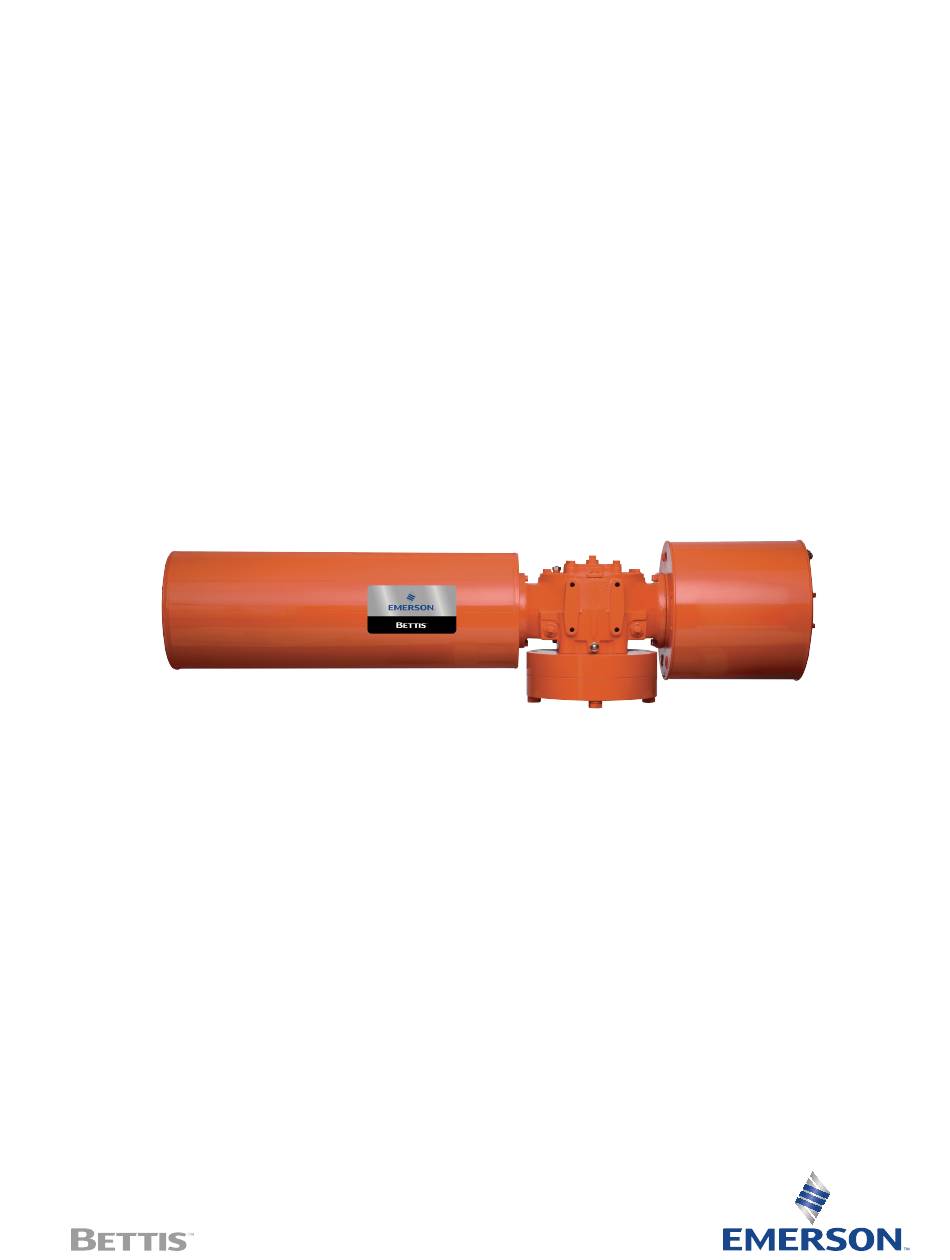

Bettis G/GC/GH/GHC Series
Pneumatic Actuators
Disassembly and Reassembly
