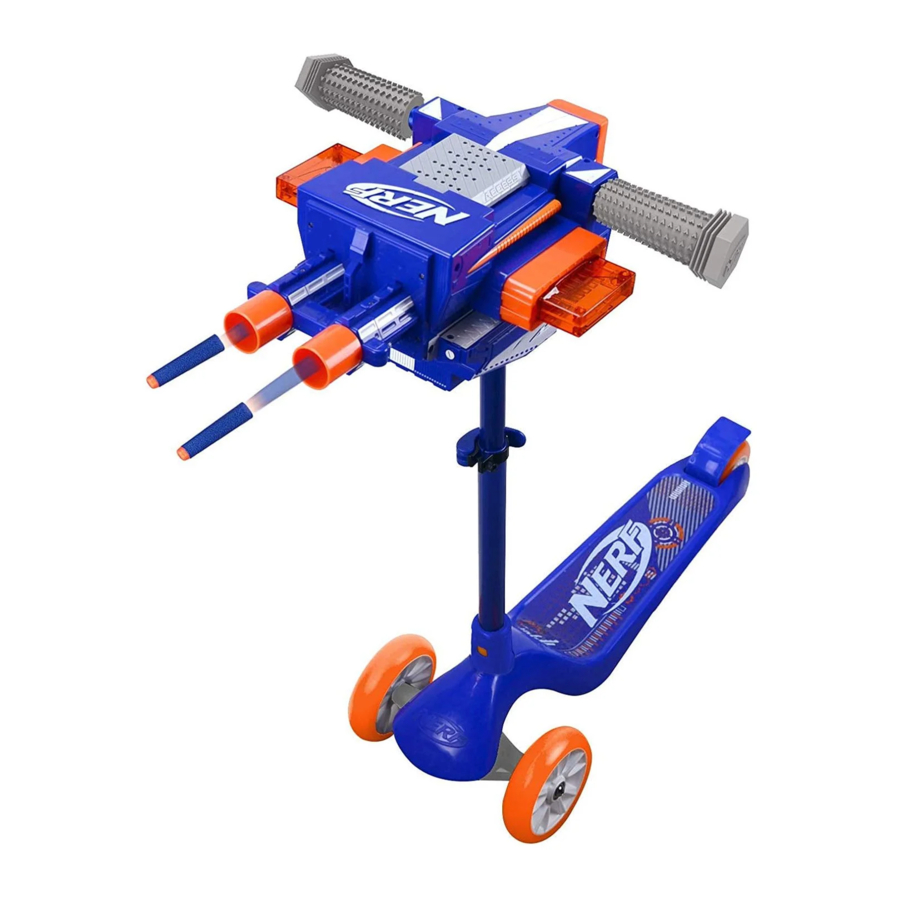

Nerf BLASTER SCOOTER Manual

OVERVIEW

DO NOT AIM AT EYES OR FACE. TO AVOID INJURY: USE ONLY DARTS DESIGNED FOR THIS PRODUCT. DO NOT MODIFY DARTS OR DART BLASTER. BE SAFE, ALWAYS WEAR A HELMET AND OTHER PROTEC TIVE GEAR.

* X6 C BATTERIES NOT INCLUDED

PARTS LIST

Adult assembly required.

Not to be used by children under 36 months due to small parts while unassembled. Choking Hazard.

Tips: Please verify that all pieces are included prior to beginning assembly.

ASSEMBLY

Step 1: Press the button and insert the stem into the base.

Step 2: Remove M6 bolt from blaster, slide the blaster into cradle, and then tighten blaster to cradle the M6 bolt completely.

Step 3: Load 6 pcs batteries (C type, 1.5V), close the cover and tighten 4pcs M3 screws completely.

Step 4: Insert the handlebar grips into the bare handlebars until both locking buttons "click" into place.

HOW TO ADJUST THE HEIGHT

The handlebar can be locked into place at 2 different heights. Please make the following adjustment to reach required height.

Open the Quick Release Lock, press the locking button, adjust the handlebar to a suitable height, and then close the Quick Release Lock.

BLASTER USE

DO NOT AIM AT EYES OR FACE. TO AVOID INJURY: USE ONLY DARTS DESIGNED FOR THIS PRODUCT. DO NOT MODIFY DARTS OR DART BLASTER. BE SAFE, ALWAYS WEAR A HELMET AND OTHER PROTEC TIVE GEAR.

TO AVOID INJURY: Use only darts designed for this product. Do not modify darts or dart blaster. Be sure to read and follow all instructions carefully before using this product. NOTE: JAM CLEARING DOOR must be fully closed for blaster to fire.

FIRING

Press and hold either button trigger till you here motors engage and dart blasts - then release. If you keep trigger button pressed – darts will blast in rapid re mode very quickly.

LOADING AMMO

Load DARTS into the QUICK RELOAD CLIPS.

• Be sure DARTS are inserted in direction indicated on CLIP.
• Insert 1 DART at a time and push down.
• EACH Included CLIP can hold up to 6 DARTS. Do not insert more than 6 darts.

  Insert CLIP into MAIN BLASTER UNIT (make sure arrow on CLIP points away from TRIGGER). Press CLIP release buttons and remove CLIPS to store or reload

CLEARING JAMS

Check BARREL area for a jammed DART. Open the JAM CLEARING DOOR and remove any jammed DARTS.

• Close JAM CLEARING DOOR.


NOTE: Blaster will not function unless JAM CLEARING DOOR is fully closed.

STORING YOUR BLASTER

BATTERY INFORMATION

NOTE: Do not store blaster ready to fire.

• Be sure to unload DARTS from blaster before putting it away.

Remove batteries if storing Blaster Scooter for an extended period of time

BATTERY INFORMATION
[Caution Logo]

1. TO AVOID BATTERY LEAKAGE
   1. Always follow the instructions carefully. Use only batteries specified and be sure to insert them correctly by matching the + and – polarity markings.
   2. Do not mix old batteries and new batteries or standard (carbon-zinc) with alkaline batteries.
   3. Remove exhausted or dead batteries from the product.
   4. Remove batteries if product is not to be played with for a long time.
   5. Do not short-circuit the supply terminals.
   6. RECHARGEABLE BATTERIES: Do not mix these with any other types of batteries. Always remove from the product before recharging. Recharge batteries under adult supervision. DO NOT RECHARGE OTHER TYPES OF BATTERIES.
2. Should this product cause, or be affected by, local electrical interference, move it away from other electrical equipment. Reset (switching o and back on again or removing and re-inserting batteries) if necessary.

MAINTENANCE AND CHECK BEFORE RIDING

• Check that all parts are sufficiently tightened, and the handlebar is securely fixed.
• Check that all wheels can be spun smoothly and that the footplate is securely fastened.
• All nuts and bolts may lose their tightness over time, please check the tightness of all nuts and bolts every time you ride.
• The wheels may become worn out with natural wear and tear over time. Please check the condition of the wheels regularly and replace them when necessary. Please contact Manufacturer – Flybar, Inc. for replacements.
• DO NOT use a wet cloth, alcohol, industrial cleaners or solvents to clean the scooter as this may result in loss of gloss, the removal of decals or dissolve the materials in the scooter.
• Do not use attachments not included with the scooter. Do not attempt to make any modi cations to the scooter by yourself.

SAFETY INSTRUCTIONS

ATTENTION:

1. Before you allow your child to use Nerf Blaster Scooter, ensure that the steering rod is fully engaged and that all the screws are tight. Also ensure that the wheels have been correctly secured and that they show no signs of wear.
2. Warning: Protective equipment should be worn. Ensure that your child always wears a helmet, wrist, elbow and knee pads, as well as shoes with rubber soles.
3. Ensure that your child does not ride down any steep hills. The brake is not designed to decelerate from high downhill speeds.
4. The brake pad becomes hot when it is used. Make especially sure that your child does not keep the brake on for a long period of time. Explain to your child that direct skin contact may cause burns.
5. Do not allow your child to travel at speeds exceeding 6 mph. (10 Kmph)
6. Ensure that your child does not ride on roads, paths or other places with motor vehicle traffic.
7. Only one child may ride on the Nerf Blaster Scooter at any one time.
8. Never allow your child to ride the Nerf BlasterScooter at dusk or at night.
9. The Nerf BlasterScooter must not be used on wet, oily, sandy, dirty, icy, rough or uneven surfaces.
10. Parental or adult suspension is strongly recommended.
11. Do not make any modifications to the Nerf BlasterScooter.
12. Suitable for children up to approx.150cm is height for the Nerf Blaster and approx. (consider removing this line).
13. Important: Undoing the axle screws several times will reduce the effect of the screw securing products. This means that the screws may come loose by themselves. You should therefore always use a conventional screw securing product.
14. Some metal parts may corrode after a certain time, especially when used near the sea or left outdoors too often.
15. Warning! The toy needs to be used with caution, since skill is required to avoid falls or collisions causing injury to the user or third parties.
16. User age and maximum loading weight. 175lbs. (80kg) max and 6+ years.
