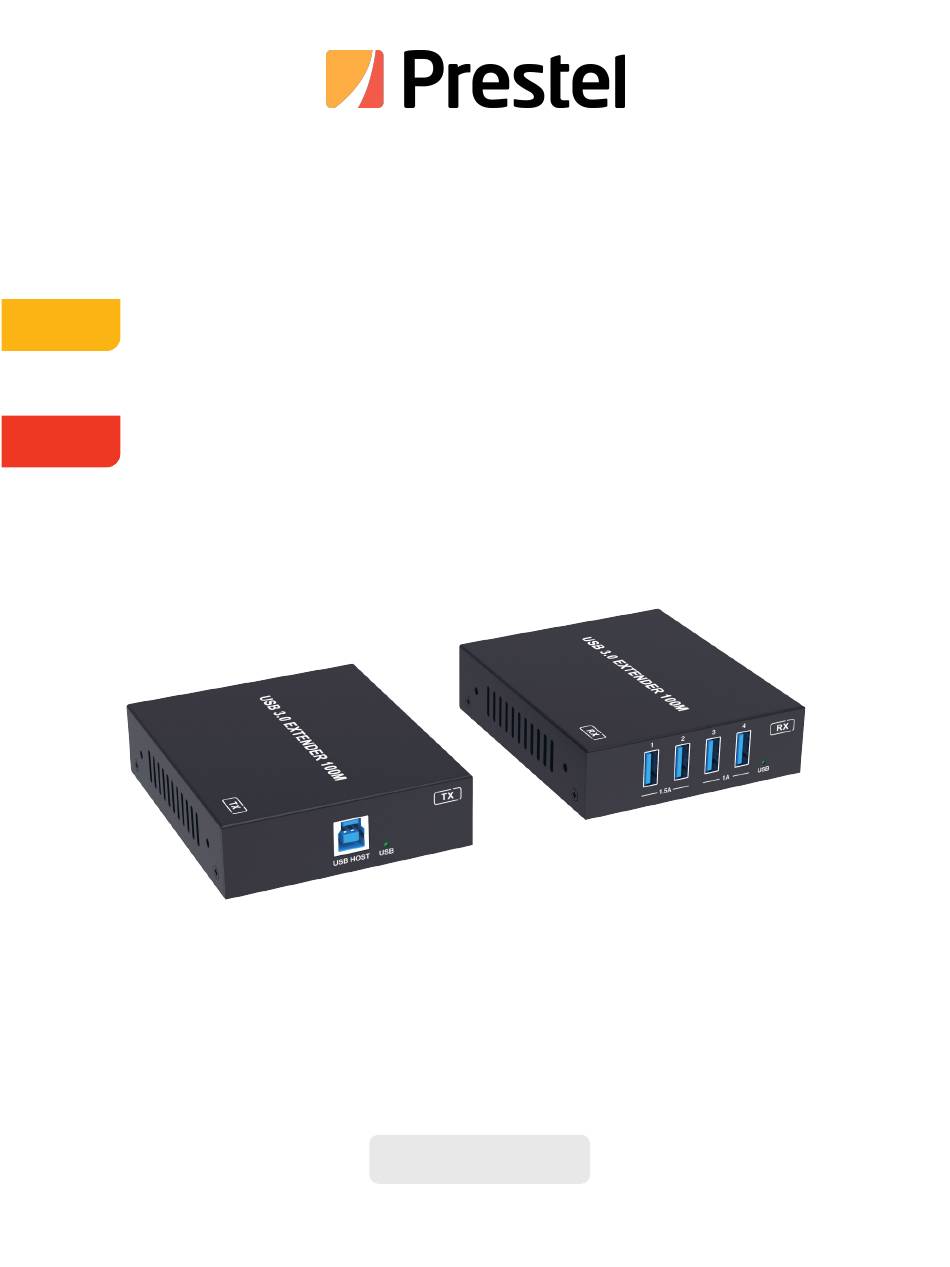

  • Page 1 Prestel ETP-XUSB3 USB 3.0 Extender (100m) USER MANUAL...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.

  • Page 3: Introduction

    1. Introduction The USB 3.0 Extender can extend USB signal to a distance up to 100m/328ft via a single CAT6a cable. Transmitter features with one USB 3.0 Type B input, one FSYSNC GPIO input and one RS-232 pass-through. Receiver features with four USB 3.0 Type A outputs, one FSYSNC GPIO output and one RS-232 pass-through.

  • Page 4: Specifications

    4. Specifications Technical USB Protocol USB 3.0 Transmission Rate Up to 5Gbps Transmission Distance 100m/328ft over CAT6a (F/FTP) cable IEC 61000-4-2: ESD Protection ±8kV (Air-gap discharge), ±4kV (Contact discharge) Connections Input: 1× USB HOST [USB-B, 9pin Female] Output: 1× HDBT OUT [RJ45, Female] Transmitter Control: 1×...

  • Page 5: Operation Controls And Functions

    5. Operation Controls and Functions 5.1 Transmitter Panel USB HOST SERVICE DC 24V HDBT OUT RS-232 FSYNC Name Function Description Host port, supporting USB 3.2 Gen 1. Connects to a PC or host. USB HOST USB signal indicator. ▪ On: USB 3.0 signal is detected. USB LED ▪...

  • Page 6: Receiver Panel

    5.2 Receiver Panel SERVICE DC 24V 1.5A HDBT IN RS-232 FSYNC 9 10 Name Function Description Connect to USB devices, and max output power is up to 5V/1.5A. USB 1/2 Connect to USB devices, and max output power is up to 5V/1A. USB 3/4 USB signal indicator.

  • Page 7: Application Example

    6. Application Example USB HOST SERVICE DC 24V HDBT OUT RS-232 FSYNC Transmitter CAT6a SERVICE DC 24V 1.5A HDBT IN RS-232 FSYNC Receiver U Disk Power Supply USB Camera 5 / 5...
