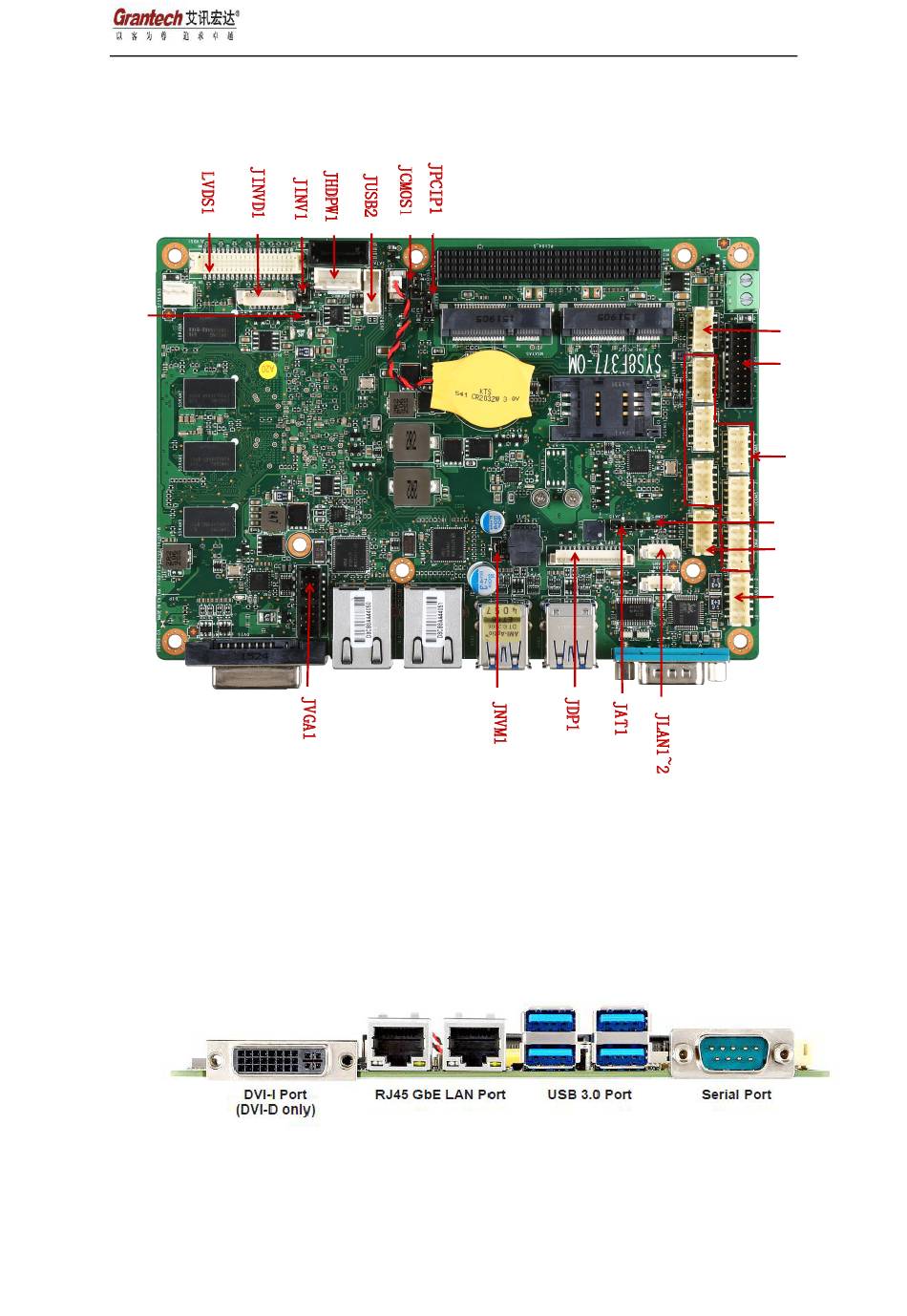

- Page 1 SYS8F377VGGA-OM Quick Installation Guide SYS8F377VGGA-OM 简易说明书 1、System Board Layout JINV1 JFP1 JGPIO1 JCOM1~6 JCOMP1 JPS2 JAUD1 Rear Panel I/O 2、Connector List...
- Page 2 SYS8F377VGGA-OM Quick Installation Guide Jumper Function JAT1 AT/ATX mode Select JCOMP1 COM Port Voltage Jumper JVGA1 VGA Connector JCMOS1 Clear CMOS Selection JVDD1 LVDS Power Jumper JINV1 LVDS Inverter Power Jumper Keyboard/Mouse Connector JPS2 JINVDD1 LVDS Inverter Connector JGPIO1 GPIO Connector...
- Page 3 SYS8F377VGGA-OM Quick Installation Guide Jumper status 1-2 Close Normal Operation 2-3 Close Clear CMOS data B、JAT1: AT/ATX Power Select Jumper status 1-2 short ATXMode 2-3 Short AT Mode C、JCOMP1: Serial Port Power Jumper Jumper status 1-2 short 2-3 Short +12V...
- Page 4 SYS8F377VGGA-OM Quick Installation Guide Packing list: SYS8F377VGGA-OM *1pcs Utility CD for Drivers *1pcs Installation Guide *1pcs USB cable *2 pcs SATA Power cable *1pcs; COM Extension cables *6pcs...
