Summary of Contents for Grantech SYM86360V4GA

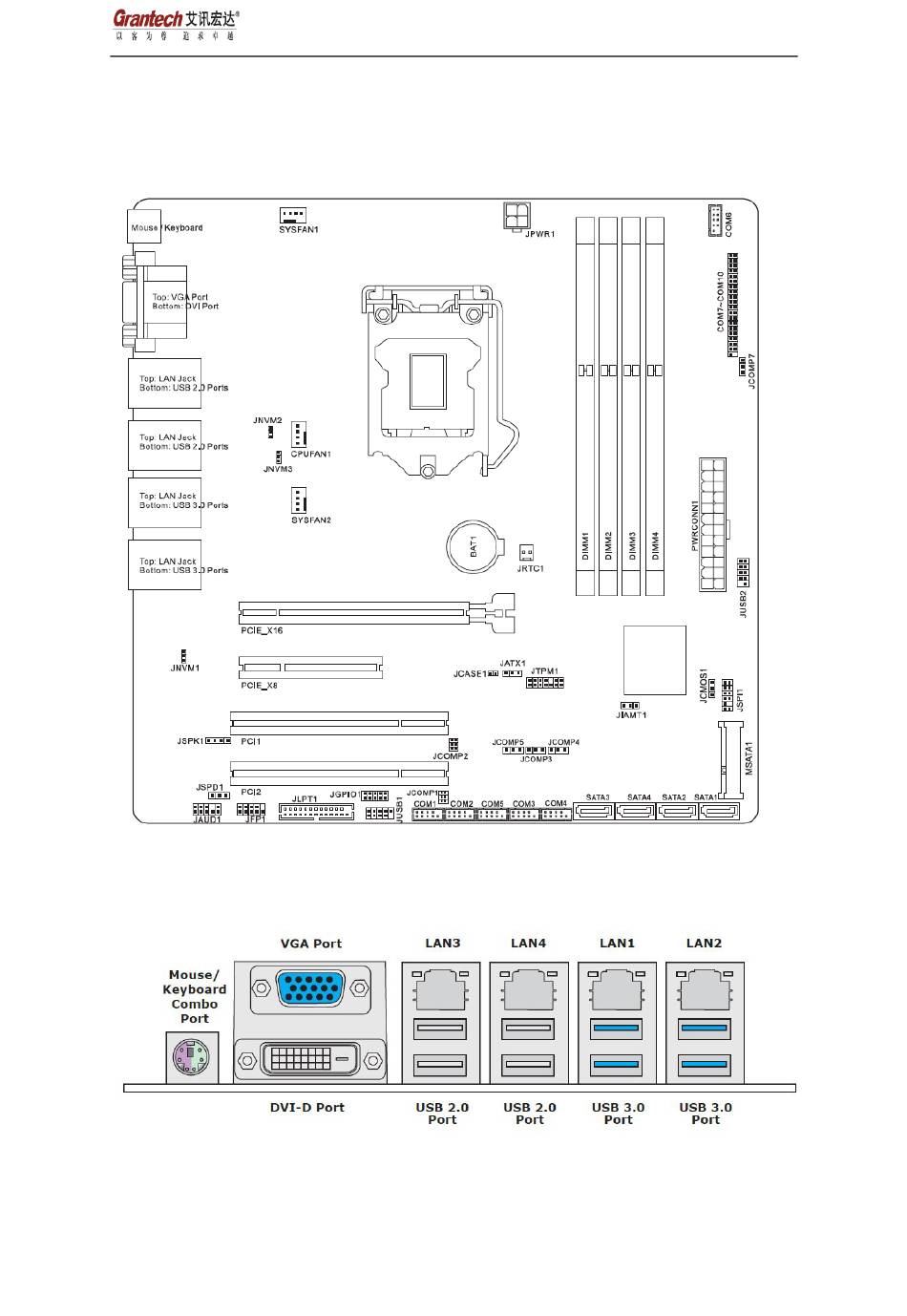

- Page 1 SYM86360V4GA Quick Installation Guide SYM86360V4GA 简易说明书 1、System Board Layout...
- Page 2 SYM86360V4GA Quick Installation Guide 2、Connectors: Label Connectors JGPIO1 GPIO Header SATA1 ~ SATA4 Serial ATA Connector JUSB1, JUSB2 USB 2.0 Connector JFP1 Front Panel Connector: JTPM1 Trusted Platform Module Header JSPD1 Sony & Ph l ps D g tal Interconnect Format...
- Page 3 SYM86360V4GA Quick Installation Guide 4、Front Panel Connector setting : Define Function Define Function HDD+ Power LED+ Power HDD Power HDD- Power LED- Reset- Power button+ Power Reset button button Reset+ Power button- 5、Jumper Setting (JCMOS1): Jumper status Short 1~2 Normal Operation (default)
- Page 4 SYM86360V4GA Quick Installation Guide Packing list: SYM86360V4GA Mainboard *1pcs Utility CD for SYM86360V4GA *1pcs Installation Guide *1pcs USB cable *1 pcs SATA cable *2pcs; Com extension cables *3pcs I/O Shield *1pcs...
