Buyers SaltDogg LS10 Installation Instructions Manual

Liquid spay system 2 x 400 gallon tanks
Hide thumbs

Advertisement

Quick Links

Download this manual
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone (440) 974-8888 • Fax (800) 841-8003
www.saltdogg.com
Installation Instructions
LS10 Liquid Spay System 2 x 400 gallon tanks

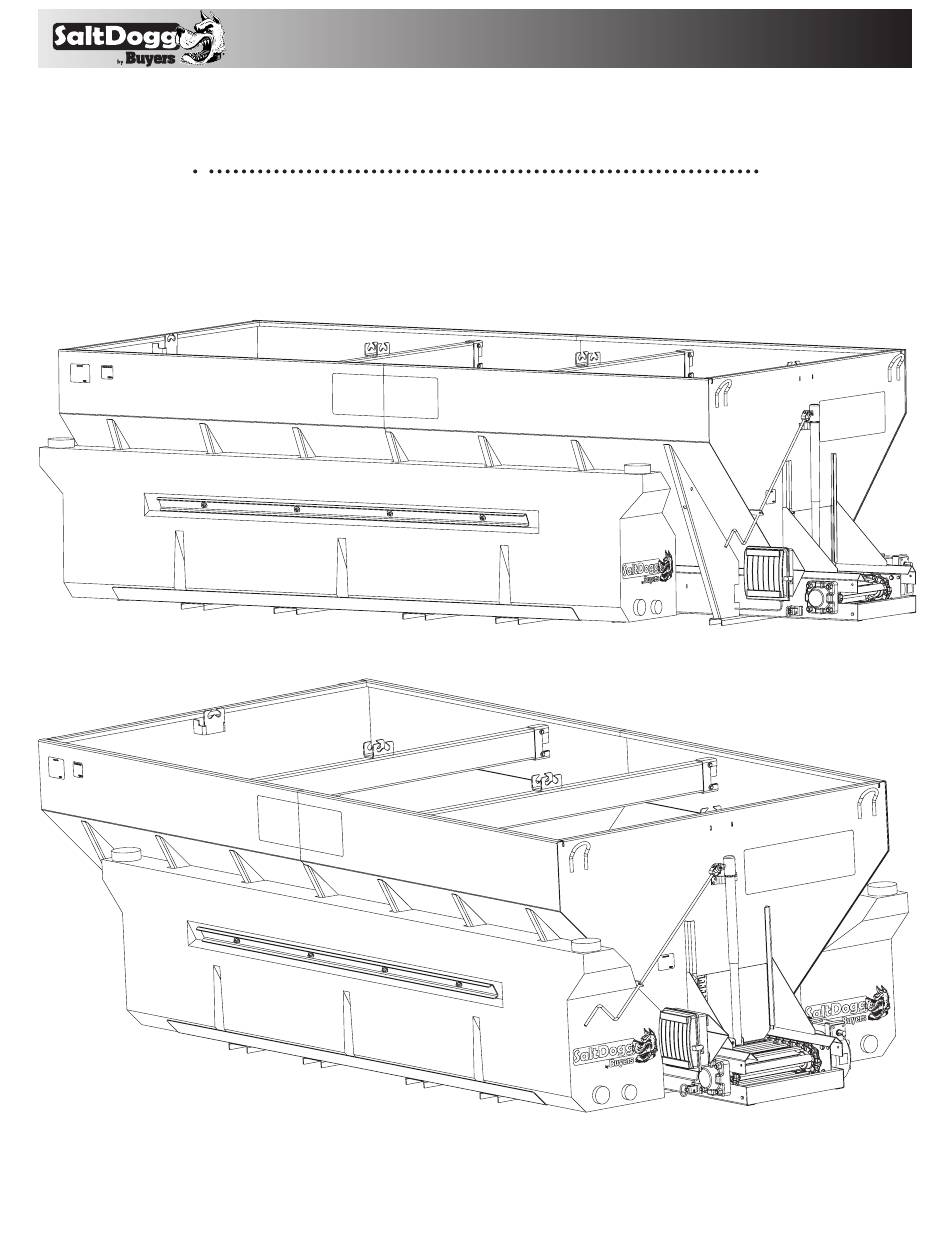

LS10 is designed for 14 and 15 ft long municipal type spreaders. Installation is possible in two styles
(see installation A and installation B pictures).
INSTALLATION A - 400 gal. reservoirs positioned towards front of spreader
Fig. 1
INSTALLATION B - 400 gal. reservoirs positioned towards rear of spreader
—continued inside
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SaltDogg LS10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Buyers SaltDogg LS10

Summary of Contents for Buyers SaltDogg LS10

  • Page 1 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (800) 841-8003 www.saltdogg.com Installation Instructions LS10 Liquid Spay System 2 x 400 gallon tanks LS10 is designed for 14 and 15 ft long municipal type spreaders. Installation is possible in two styles (see installation A and installation B pictures).
  • Page 2 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (800) 841-8003 www.saltdogg.com 1. Position 1/2-13 projection weld nuts on inside gusset surface and weld them as shown in FIG 1 and FIG 2. Follow welding order for Installation A or Installation B. ALIGN NUT IN THE HOLE.
  • Page 3 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (800) 841-8003 www.saltdogg.com 3. Align holes in retainer #3026545 with holes in channels #3026808 and weld retainers to channels as shown in FIG 4. Fig. 4 WELD RETAINERS TO EVERY CHANNEL. ALIGN HOLES IN CHANNELS AND RETAINERS GRIND OFF EXCESSIVE WELDS, IF NECESSARY 4.
  • Page 4 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (800) 841-8003 www.saltdogg.com 5. Apply thread locker on threaded rods #3026587. Pass rods thru tank holes and screw them into welded nuts. Leave rods sticking out about 1 inch from tank surface FIG 6. Fig.
  • Page 5 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (800) 841-8003 www.saltdogg.com 7. Secure retainer using 1/2 inch flat washers and nylon insert nuts FIG 8. Fig. 8 SECURE RETAINER USING 1/2 INCH WASHERS AND NUTS. 8. Weld enclosure bracket #3028485 in desired location based on Installation A or B style. If space is limited custom bracket fabrication is necessary.
  • Page 6 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (800) 841-8003 www.saltdogg.com 10. Assembly enclosure assembly LS102 to bracket, making sure that enough space left to open enclosure door. 11. Plumb: Reservoir, ball valve, filter, pump enclosure, and spray nozzles according to plumbing schematic using supplied fittings, hose, and hose clamps.

  • Page 7: Spray Nozzles

    9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (800) 841-8003 www.saltdogg.com Fig. 11 Plumbing Diagram Reservoir Reservoir #3010816 #3010816 Ball Valve #WSE10 Ball Valve #WSE10 Filter #WSE11 Filter #WSE11 Pump Enclosure #WSE22 Pump #WSE3 Pressure Switch #WSE4 25' Harness #WSE25 8' Harness...
  • Page 8 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (800) 841-8003 www.saltdogg.com Fig. 12 Nozzle Assembly WSE9 WSE9 WSE9 WSE34 WSE13 WSE33 WSE33 WSE33 WSE6168 WSE6065 3000269 3000269 WSE7 WSE7 WSE15 WSE15 WSE14 WSE14 Fig. 13 Filter/Valve Assembly from WSE9 3010816...
  • Page 9 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (800) 841-8003 www.saltdogg.com Liquid Spray System Operating Instructions CAUTION 1. Read all instructions before operating. Always Always wear hand, eye, and skin protection when working with wear hand, eye, and skin protection when de-icing chemicals.

  • Page 10: Bill Of Materials

    9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (800) 841-8003 www.saltdogg.com LS10 Bill of Materials ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION LS102 ENCLOSURE ASSY, WETTING SYST WSE7 NOZZLE BODY, BRASS 3012164 PLUG, SQUARE HEAD, 3/4 NPT WSE9 CLAMP, HOSE 3000269...

  • Page 11: Safety Alert Symbol

    MAY CONTAIN HAZARDOUS by Buyers Products Co. Authorization from Buyers Products Co. must MATERIAL. be obtained before returning any part. No charges for transportation HANDLE WITH CARE. or labor performed on Buyers’ products will be allowed under this warranty.
  • Page 12 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (800) 841-8003 www.saltdogg.com 3027062 Rev. C...
