Buyers SaltDogg LS6 Installation & Operator's Manual

Liquid spray system for shpe1500, 2000 style spreaders
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

Installation & Operator's Manual

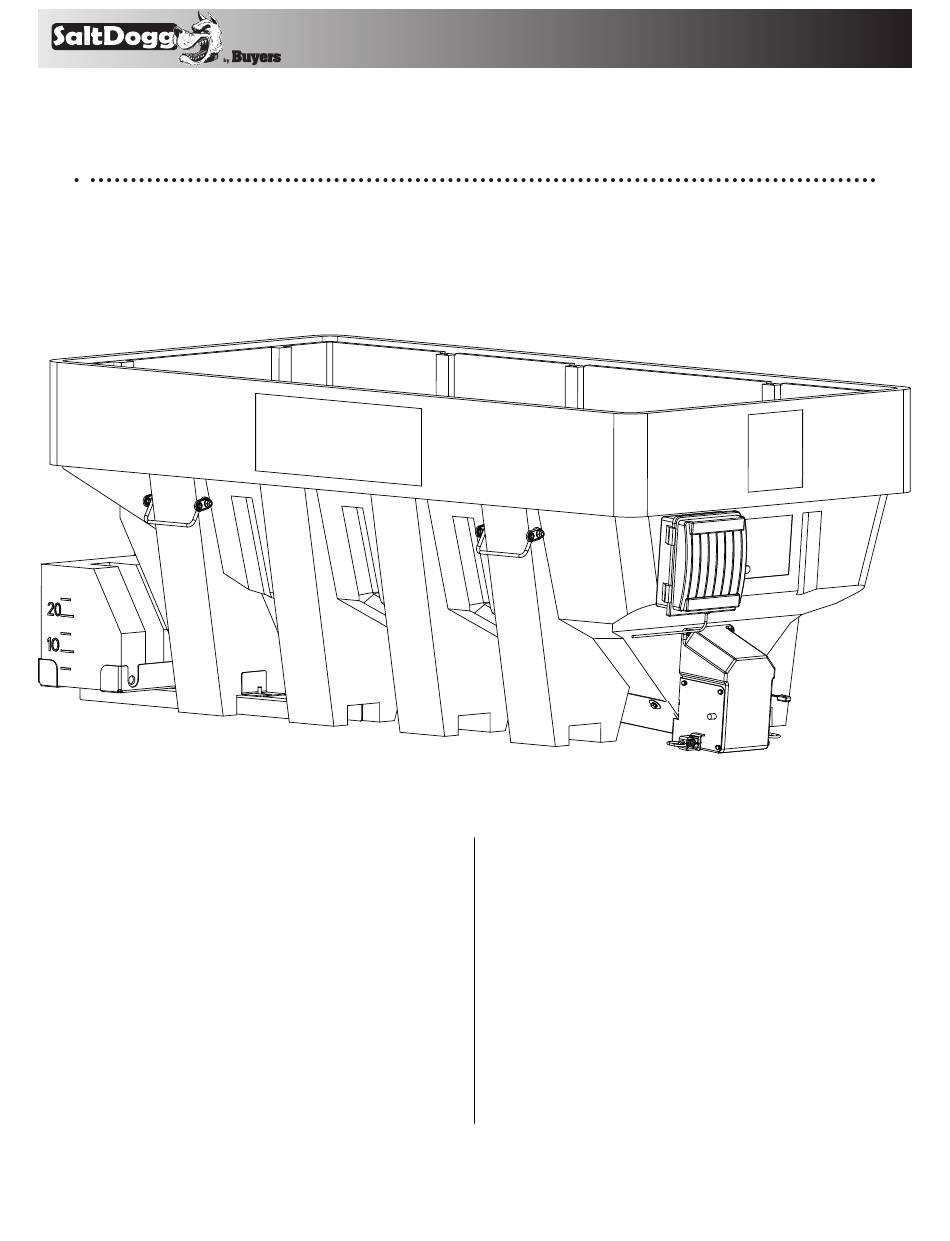

LS6 Liquid Spray System for
SHPE1500, 2000 Style Spreaders
Installation Instructions
1. Position Support (3013939) in truck's bed.
Place 30 gal. Tank (#3014062) on support as
show in Fig.1. Strap tank to support using
straps 149650501.
2. Lower spreader onto support, Make
sure support's long brackets are inside of
spreader legs openings and screws are
between two front legs as shown in Fig.2
3. Secure spreader on support using stops
(3014065) and provided hardware as shown
in Fig.3.
TM
Phone (440) 974-8888 • Fax (440) 974-0165
4. Position and attach enclosure LS102 as
shown in Fig.4.
5. Plumb: reservoir, ball valve, filter, pump
enclose and spray nozzle according to
plumbing schematic using supplied fittings,
hose and hose clamps. Do not use Teflon
tape on threads. Use liquid thread sealant.
(see fig.5, 6,7 &8).
9
9049 Tyler Blvd. • Mentor, Ohio 44060
Toll-Free Fax 800-841-8003 • saltdogg.com
—continued inside

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SaltDogg LS6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Buyers SaltDogg LS6

Summary of Contents for Buyers SaltDogg LS6

  • Page 1 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com Installation & Operator’s Manual LS6 Liquid Spray System for SHPE1500, 2000 Style Spreaders Installation Instructions 1. Position Support (3013939) in truck’s bed. 4.
  • Page 2 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com 3014062 3013939 Fig. 1 Fig. 2...
  • Page 3 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com 3014065 Fig. 3 LS102 Fig. 4 Cab Controller Installation Instructions ( Fig. 5) 1. Install cab controller (#WSE1) in cab for conve- nient driver operation.

  • Page 4: Quick Disconnect

    9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com Reservoir #3014062 Ball Valve #WSE10 Filter #WSE11 Pump Enclosure #WSE22 Pump #WSE3 Pressure Switch #WSE4 25' Harness #WSE25 WSE38 8' Harness Controller WSE37 #WSE24...
  • Page 5 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com WSE9 WSE9 WSE9 WSE9 WSE13 WSE696 WSE696 WSE33 WSE38 WSE37 3000269 WSE7 WSE15 WSE14 Fig. 7 Nozzle Assembly WSE9 WSE9 WSE39 WSE2 WSE2 WSE30...
  • Page 6 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com Liquid Spray System Operating Instructions Liquid Spray System Routine Maintenance rESErVOIr: CAUTION -Inspect fittings for leaks from cracks or looseness -Inspect filler/breather for cracks. Depress breather to check 1.

  • Page 7: Safety Alert Symbol

    Before Operating! warranty. Normal wear is excluded. The sole responsibility of Buyers Products Co. under this warranty is limited to repairing or replacing any part or parts which are returned, prepaid, and are EQUIPMENT INSTALLERS & OPERATORS: found to be defective by Buyers Products Co.
  • Page 8 9049 Tyler Blvd. • Mentor, Ohio 44060 Phone (440) 974-8888 • Fax (440) 974-0165 Toll-Free Fax 800-841-8003 • saltdogg.com 3014110 Rev. B...
